2009 Acura CSX Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Fuel Tank Replacement

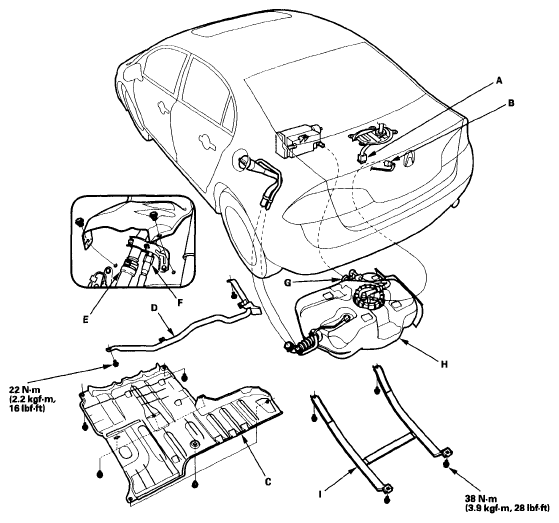

- Drain the fuel tank (see FUEL TANK DRAINING ), then disconnect fuel tank unit 4P connector (A) and quick-connect fittings (B).
- Lift the vehicle, and support it with jackstands.
- Remove the cover (C), and the EVAP canister guard (D).
- Disconnect the fuel fill tube (E). Slide back the clamps, then twist the hoses as you pull to avoid damaging them.
- Disconnect the quick-connect fitting (F) and the fuel tank vapor recirculation tube (G).
- Place a jack or other support under the tank (H).
- Remove the strap bolts and the strap (I).
- Remove the fuel tank.
- Install the parts in the reverse order of removal.
