2009 Acura CSX Base, AutomaticFACTORY OEM SERVICE PROCEDURE

Upper Torque Rod Replacement

Raise the vehicle on the lift to full height.
Remove the splash shield.
M/T model: Loosen the front mount mounting bolt (A).

Fig 1: Identifying Front Mount Mounting Bolt (M/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the upper torque rod (A).
M/T

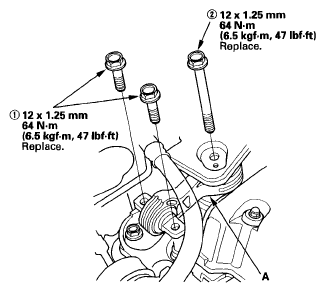

Fig 2: Upper Torque Rod (M/T) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

A/T

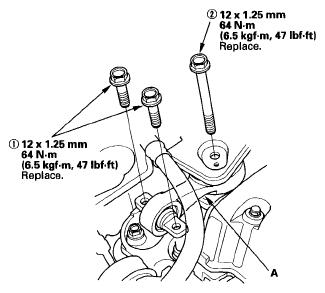

Fig 3: Upper Torque Rod (A/T) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the upper torque rod, then tighten the new bolts in the numbered sequence shown.
M/T model: Raise the vehicle on the lift to full height, and tighten the front mount mounting bolt.

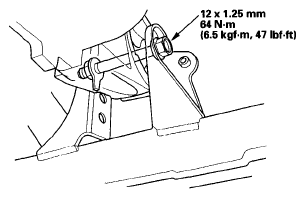

Fig 4: Front Mount Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the splash shield.
