2009 Acura CSX Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Wheel Sensor Replacement: Front

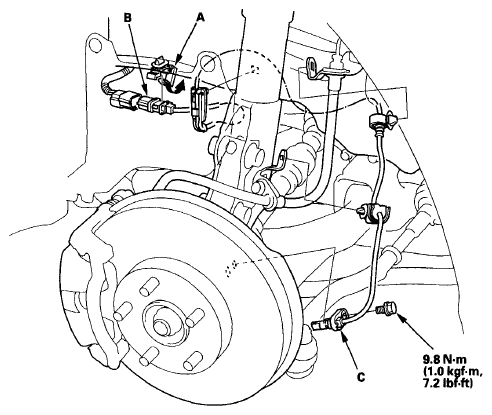

- Release the connector clamp (A), then disconnect the wheel sensor connector (B).
- Remove the clips, the bolt, and the wheel sensor (C).
- Install the wheel sensor in the reverse order of removal, and note these items:
- Install the sensor carefully to avoid twisting the wires.
- If the wheel sensor comes in contact with the wheel bearing, it is faulty.
- Start the engine, and check that the ABS indicator goes off.
- Test-drive the vehicle, and check that the ABS indicator does not come on.
