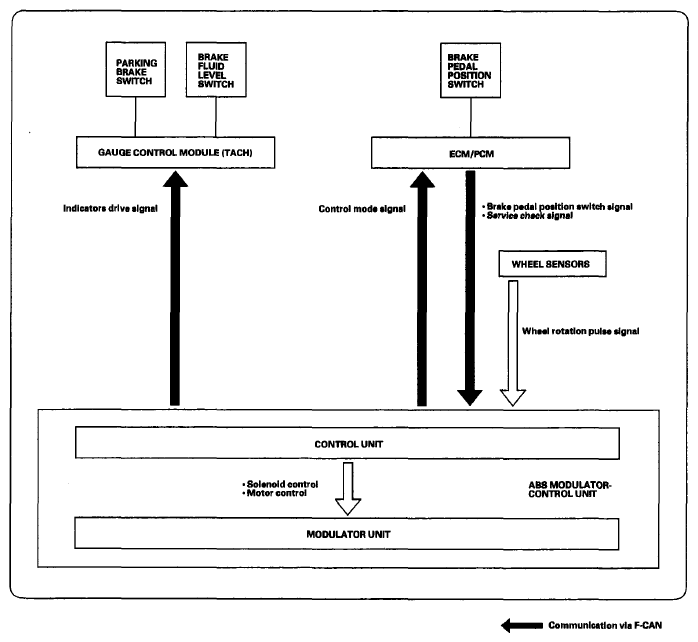

System Outline
This system is composed of the ABS modulator-control unit, the wheel sensors, and the system indicators in the gauge control module. The ABS modulator-control unit controls the anti-lock brake and the brake distribution function.
