2008 Acura TL V6-3.2L
Alignment
2008 Acura TL V6-3.2LSECTION Alignment
Caster
Caster angle 3°17'±45'
(Maximum difference between the right, and left side: 0°45')
Camber
Camber angle:
Front -0°30'±30'
Rear -1°00'±30'
(Maximum difference between the right and left side: 0°45')
Toe-in
Front toe-in 0±2 mm (0±0.08 in.)
Rear toe-in 0±2 mm (0±0.08 in.)

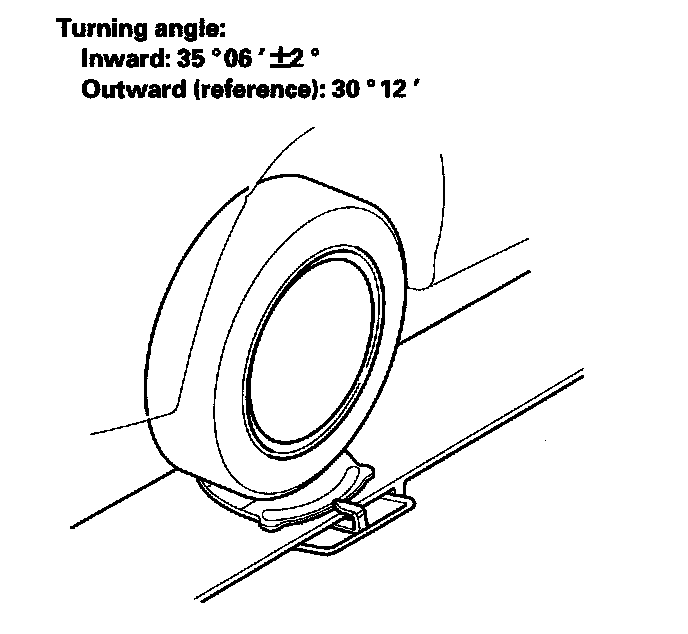

Turning Angle
Caster angle 3°17'±45'
(Maximum difference between the right, and left side: 0°45')
Camber
Camber angle:
Front -0°30'±30'
Rear -1°00'±30'
(Maximum difference between the right and left side: 0°45')
Toe-in
Front toe-in 0±2 mm (0±0.08 in.)
Rear toe-in 0±2 mm (0±0.08 in.)
Turning Angle
