2008 Acura CSX Base, K20Z1FACTORY OEM SERVICE PROCEDURE
FTP Sensor Replacement

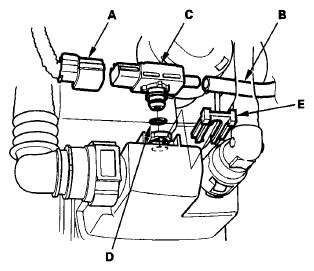

- Remove the cover (see step 1 on ).
- Disconnect the FTP sensor connector (A).
- Disconnect the hose (B), and then remove the FTP sensor (C).
- Install the parts in the reverse order of removal with a new O-ring (D) and retainer (E).
