Shift Lever Mechanism: Notes

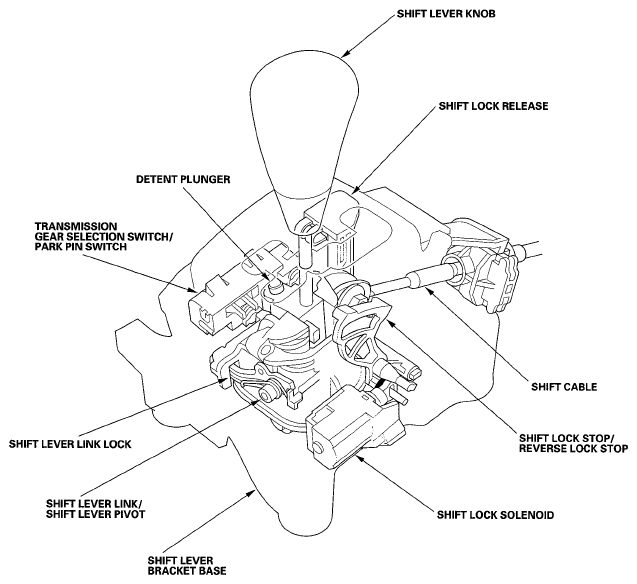

The shift lever has five positions; P, R, N, D, and L. The D position has two modes; automatic shift mode and sequential shift mode with the shift lever moved to M. The shift lever movement and position is indicated by the A/T gear position indicator panel. The shift lever can not be shifted out of P and into R without pressing the shift lever. The shift lock/ reverse lock mechanism is an additional the shift lever lockout mechanism. The shift lever is engaged with the shift lever link in P, R, N, D, and L. This unit shifts the transmission using the shift cable connected between the shift cable link and the transmission selector control shaft.
In M, the shift lever is disengaged from the shift lever link, and the shift lever can be used to shift gears manually between 1st through 5th, much like a manual transmission.
