PCM A/T Control System Inputs and Outputs

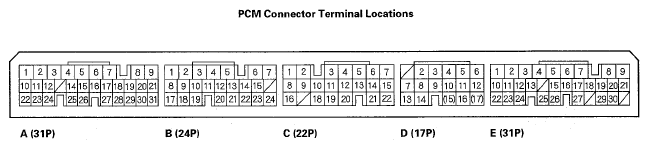

Fig 1: Identifying PCM Connectors Terminals
G05458789Courtesy of AMERICAN HONDA MOTOR CO., INC.

PCM CONNECTOR A (31P)

PCM CONNECTOR A (31P) REFERENCE

Terminal number Wire color Terminal name Description Signal
A1 BLK PG2 (POWER GROUND) Ground circuit for PCM circuit Less than 1.0 V at all times
A2 BLK PG1 (POWER GROUND) Ground circuit for PCM circuit Less than 1.0 V at all times
A3 BRN/YEL LG1 (LOGIC GROUND) Ground circuit for PCM circuit Less than 1.0 V at all times
A4 YEL/BLK IGP (POWER SOURCE) Power source for PCM circuit With ignition switch ON (II): Battery voltage
With ignition switch LOCK (0): About 0 V
A10 BLK/YEL VB SOL (POWER SOURCE FOR SOLENOID VALVES) Power source for solenoid valves With ignition switch ON (II): Battery voltage
With ignition switch LOCK (0): About 0 V

PCM CONNECTOR B (24P)

PCM CONNECTOR B (24P) REFERENCE

Terminal number Wire color Terminal name Description Signal
B3 WHT/RED IMT - (INTAKE MANIFOLD TUNING (IMT) ACTUATOR - SIDE) Ground for IMT actuator With ignition switch ON (II): Battery voltage
B4 WHT/BLU IMT+ (INTAKE MANIFOLD TUNING (IMT) ACTUATOR + SIDE) Drives IMT actuator With ignition switch ON (II): Battery voltage
B5 BLU/RED EGR (EXHAUST GAS RECIRCULATION (EGR) VALVE) Drives EGR valve With EGR operating: Duty controlled
With EGR not operating: About 0 V
B11 WHT/BLK IMTM (INTAKE MANIFOLD TUNING (IMT) ACTUATOR MONITOR) Detects IMT actuator position With engine running: About 5.0 V
With engine speed above 4,000 rpm: About 0 V
B15 BRN/YEL LG2 (LOGIC GROUND) Ground circuit for PCM Less than 1.0 Vat all times
B19 BLU NC (OUTPUT SHAFT (COUNTERSHAFT) SPEED SENSOR) Detects output shaft (countershaft) speed sensor signal With ignition switch ON (II): About 0 V or about 5.0 V
With vehicle moving: About 1.5-3.5 V (pulses)
B23 RED/BLK ATPN (TRANSMISSION RANGE SWITCH N) Detects transmission range switch N signal In N: About 0 V
In any position other than N: Battery voltage

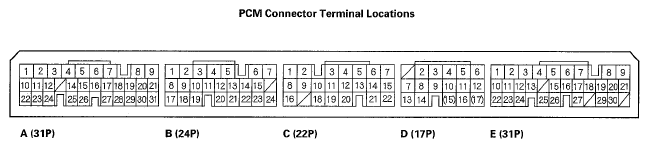

Fig 2: Identifying PCM Connectors Terminals
G05458790Courtesy of AMERICAN HONDA MOTOR CO., INC.

PCM CONNECTOR C (22P)

PCM CONNECTOR C (22P) REFERENCE

Terminal number Wire color Terminal name Description Signal
C1 BLU/YEL SH A (SHIFT SOLENOID VALVE A) Drives shift solenoid valve A With engine running in R, and D, L, and M (in 2nd, and 3rd gears): Battery voltage
With engine running in P, N, and D, L and M (in 1st, 4th, and 5th gears): About 0 V
C2 GRN/RED SHD (SHIFT SOLENOID VALVE D) Drives shift solenoid valve D With engine running in N, in D during no lock-up condition: About 0 V
With engine running in P and R, and D during lockup condition: Battery voltage
C3 BLU/YEL ATFT (ATF TEMPERATURE SENSOR) Detects ATF temperature sensor signal With ignition switch ON (II): About 0.2-4.0 V (about 1.8 V at operating temperature, depending on ATF temperature)
C4 GRN/WHT SG1 (SENSOR GROUND) Sensor ground Less than 1.0 Vat all times
C5 GRN/RED MAP (MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR) Detects MAP sensor signal With ignition switch ON (II): About 3.0 V
At idle: About 1.0 V (depending on engine speed)
C6 YEL/RED VCC1 (SENSOR VOLTAGE) Provides sensor reference voltage With ignition switch ON (II): About 5.0 V With ignition switch LOCK (0): About 0 V
C7 RED LS A (A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE A) Drives A/T clutch pressure control solenoid valve A With ignition switch ON (II): Current controlled
C8 GRN/WHT SH B (SHIFT SOLENOID VALVE B) Drives shift solenoid valve B With engine running in P, R, and N, and D, L, and M (in 1st, 2nd, and 5th gears): Battery voltage With engine running in D, L, and M (in 3rd and 4th gears): About 0 V
C9 BLU/WHT OP3SW (3RD CLUTCH TRANSMISSION FLUID PRESSURE SWITCH) Detects 3rd clutch transmission fluid pressure switch signal With ignition switch ON (II):
  • Without 3rd clutch pressure: About 5.0 V
  • With 3rd clutch pressure: About 0 V
C10 YEL/GRN ATP D (TRANSMISSION RANGE SWITCH D) Detects transmission range switch D position signal In D: About 0 V In any position other than D: Battery voltage
C11 BLU/BLK OP2SW (2ND CLUTCH TRANSMISSION FLUID PRESSURE SWITCH) Detects 2nd clutch transmission fluid pressure switch signal With ignition switch ON (II):
  • Without 2nd clutch pressure: About 5.0 V
  • With 2nd clutch pressure: About 0 V
C12 GRN/YEL SG2 (SENSOR GROUND) Sensor ground Less than 1.0 V at all times

PCM CONNECTOR C (22P)

PCM CONNECTOR C (22P) REFERENCE

Terminal number Wire color Terminal name Description Signal
C13 WHT/BLK EGRP (EXHAUST GAS RECIRCULATION (EGR) VALVE POSITION SENSOR) Detects EGR valve position sensor signal With engine running: About 1.2-3.0 V (depending on EGR valve lift)
C14 YEL/BLU VCC2 (SENSOR VOLTAGE) Provides sensor reference voltage With ignition switch ON (II): About 5.0 V
With ignition switch LOCK (0): About 0 V
C15 BRN/WHT LS B (A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE B) Drives A/T clutch pressure control solenoid valve B With ignition switch ON (II): Current controlled
C16 GRN SH C (SHIFT SOLENOID VALVE C) Drives shift solenoid valve C With engine running in D, L, and M (in 1st, 3rd, and 5th gears): Battery voltage
With engine running in P, R, and N, and D, L, and M (in 2nd and 4th): About 0 V
C18 RED ATP L (TRANSMISSION RANGE SWITCH L) Detects transmission range switch L signal In L: About 0 V
In any position other than L: Battery voltage
C19 BLU/YEL ATP FWD (TRANSMISSION RANGE SWITCH FWD) Detects transmission range switch FWD signal In D and L: About 0 V
In any position other than D and L: Battery voltage
C20 BLU/YEL OP4SW (4TH CLUTCH TRANSMISSION FLUID PRESSURE SWITCH) Detects 4th clutch transmission fluid pressure switch signal With ignition switch ON (II):
  • Without 4th clutch pressure: About 5.0 V
  • With 4th clutch pressure: About 0 V
C21 RED/WHT ATP RVS (TRANSMISSION RANGE SWITCH RVS) Detects transmission range switch RVS signal In P, R, and N: About 0V
In any position other than P, R, and N: Battery voltage
C22 GRN/RED LS C (A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE C) Drives A/T clutch pressure control solenoid valve C With ignition switch ON (II): Current controlled

PCM CONNECTOR D (17P)

PCM CONNECTOR D (17P) REFERENCE

Terminal number Wire color Terminal name Description Signal
D2 YEL/GRN VCC3 (SENSOR VOLTAGE) Provides sensor reference voltage With ignition switch ON (II): About 5.0 V
With ignition switch LOCK (0): About 0 V
D3 LT BLU APSA (ACCELERATOR PEDAL POSITION (APP) SENSOR A) Detects APP sensor A signal With ignition switch ON (II) and accelerator pedal fully pressed: About 4.5 V
With ignition switch ON (II) and accelerator pedal released: About 1.0 V
D6 BLK/GRN IG1 (IGNITION SIGNAL) Detects ignition switch signal With ignition switch ON (II): Battery voltage
With ignition switch LOCK (0): About 0 V
D7 GRN SG3 (SENSOR GROUND) Sensor ground Less than 1.0 V at all times
D8 LT GRN NM (INPUT SHAFT (MAINSHAFT) SPEED SENSOR) Detects input shaft (mainshaft) speed sensor signal With ignition switch ON (II): About 0 V or about 5.0 V
With engine running in N: About 1.5-3.5 V (pulses)
D9 BLK APSB (ACCELERATOR PEDAL POSITION (APP) SENSOR B) Detects APP sensor B signal With ignition switch ON (II) and accelerator pedal fully pressed: About 2.3 V
With ignition switch ON (II) and accelerator pedal released: About 0.5 V
D12 ORN VB SOL2 (POWER SOURCE FOR SOLENOID VALVES) Power source for solenoid valves With ignition switch ON (II): Battery voltage
With ignition switch LOCK (0): About 0 V
D13 BLU/BLK ATP P (TRANSMISSION RANGE SWITCH P) Detects transmission range switch P signal In P: About 0 V
In any position other than P: Battery voltage
D14 YEL/BLU P-PIN (PARK PIN SWITCH) Detects park pin switch signal With ignition switch ON (II) in P: Battery voltage
With ignition switch ON (II) in other than P: About 0V

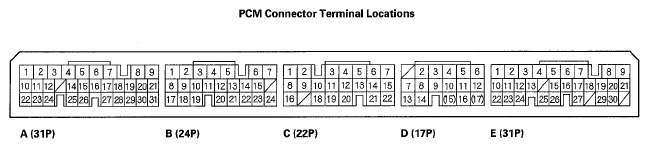

Fig 3: Identifying PCM Connectors Terminals
G05458791Courtesy of AMERICAN HONDA MOTOR CO., INC.

PCM CONNECTOR D (17P)

PCM CONNECTOR D (17P) REFERENCE

Terminal number Wire color Terminal name Description Signal
D15(1) PUR SDNP (PADDLE SHIFTER - (DOWNSHIFT SWITCH)) Detects paddle shifter - (downshift switch) signal In M, paddle shifter - (downshift switch) pressed: About 0V
In M, paddle shifter - (downshift switch) released: Battery voltage
D16 WHT ATP R (TRANSMISSION RANGE SWITCH R) Detects transmission range switch R signal In R: About 0 V
In any position other than R: Battery voltage
D17(1) BLU SUPP (PADDLE SHIFTER + (UPSHIFT SWITCH)) Detects paddle shifter + (upshift switch) signal In M, paddle shifter + (upshift switch) pressed: About 0 V
In M, paddle shifter + (upshift switch) released: Battery voltage
(1) J35A8 engine

PCM CONNECTOR E (31P)

PCM CONNECTOR E (31P) REFERENCE

Terminal number Wire color Terminal name Description Signal
E5 PNK MRLY (PGM-FI MAIN RELAY) Drives PGM-FI main relay 1 Power source for DTC memory With ignition switch ON (II): About 0 V
With ignition switch LOCK (0): Battery voltage
E8 WHT/BLK BKSW (BRAKE PEDAL POSITION SWITCH) Detects brake pedal position switch signal With brake pedal released: About 0 V
With brake pedal pressed: Battery voltage
E13 WHT/BLU S-DN (DOWNSHIFT SWITCH) Detects transmission gear selection switch downshift signal In M and shift lever pushed toward downshift position: About 0 V
In M and shift lever in neutral position: Battery voltage
E15 WHT CAN H (CAN COMMUNICATION SIGNAL HIGH) Sends and receives communication signal With ignition switch ON (II): Pulses
E16 BRN SCS (SERVICE CHECK SIGNAL) Detects service check signal With the service check signal shorted using HDS: About 0 V
With the service check signal opened: About 5.0 V
E19 BRN/WHT S-UP (UPSHIFT SWITCH) Detects transmission gear selection switch upshift signal In M and shift lever pushed toward upshift position: About 0 V
In M and shift lever in neutral position: Battery voltage
E22 YEL/BLK SLS (SHIFT LOCK SOLENOID) Drives shift lock solenoid With ignition switch ON (II), in P, brake pedal pressed, and accelerator released: About 0 V
E26 RED CAN L (CAN COMMUNICATION SIGNAL LOW) Sends and receives communication signal With ignition switch ON (II): Pulses
E30 ORN S-MODE (SEQUENTIAL SHIFT MODE) Detects transmission gear selection switch S mode signal In M: About 0 V
In other than M: Battery voltage
