2007 Acura TL BaseFACTORY OEM SERVICE PROCEDURE
ATF Temperature Sensor Replacement
- Remove the splash shield.
- Drain the automatic transmission fluid (ATF) (see step 4 on ATF REPLACEMENT ).

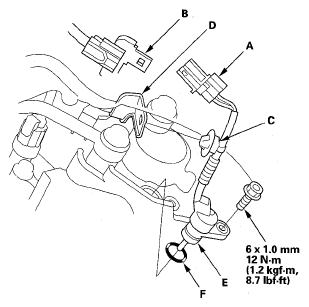

- Disconnect the ATF temperature sensor connector (A), then remove the connector from the connector bracket (B).
- Remove the harness clamp (C) from its bracket (D).
- Remove the ATF temperature sensor (E).
- Install a new O-ring (F) on a new ATF temperature sensor, and install the ATF temperature sensor.
- Check the connector for rust, dirt, or oil. Connect the connector securely, and install it on its bracket.
- Install the harness clamp on its bracket.
- Refill the transmission with ATF (see step 7 on ATF REPLACEMENT ).
- Install the splash shield.
