Ignition Switch/Steering Lock: Test
SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or servicing.
- Make sure you have the anti-theft codes for the audio system and the navigation system (if equipped). Make sure the ignition switch is OFF.
- Disconnect the battery negative cable.
- Remove the left front door sill trim and left kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).

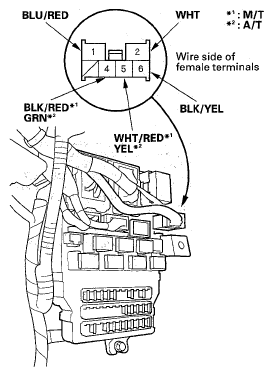

- Disconnect the 6P connector from the driver's under-dash fuse/relay box.
- Check for continuity between the terminals in each switch position according to the table.
- If the continuity checks do not agree with the table, replace the steering lock.
- After reconnecting the battery, enter the anti-theft codes for the audio system and the navigation system (if equipped), then set the clock (on vehicles without navigation).
