Audio-HVAC Display Module Assembly Removal/Installation

WARNING: This page is about a different car, the 2008 Acura TL and 2007 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.

NOTE:
  • Eject all the discs before removing the audio unit to prevent damaging the CD/DVD player's load mechanism.
  • Put on gloves to protect your hands.
  • Take care not to scratch the dashboard and related parts.
  • Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.
  1. Make sure you have the anti-theft codes for the audio system.
  2. Remove the center console trim (see CENTER CONSOLE REAR SECTION REMOVAL/INSTALLATION ) and center console panel (see CENTER CONSOLE PANEL REMOVAL/INSTALLATION ).
  3. Remove the dashboard center vent (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  4. Remove the bolts, then pull out the audio-HVAC display module assembly (A).

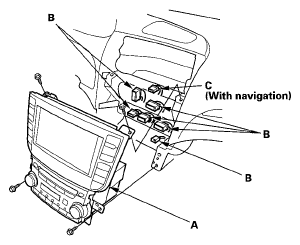

    Fig 1: Identifying Audio-HVAC Display Module Assembly
    G05463257Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Disconnect the connectors (B, C), then remove the audio-HVAC display module assembly.
  6. Install the audio-HVAC display module assembly in the reverse order of removal, and note these items:
    • Make sure all connectors and AM/FM antenna sublead are secure.
    • Enter the anti-theft codes for the audio system.
