Set the multiplex in B-CAN System Diagnosis Test mode 1 (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE 1 AND TEST MODE 2 (WITHOUT THE HDS) ). While in Test Mode 1, the DTCs which have been detected and stored individually by various B-CAN (Body-controller Area Network) units, will be shown one by one on the multi-information display when the communication between the Multiplex Integrated Control Unit (MICU) and the gauge control module are normal. To scroll through the DTCs, press the SELECT/RESET button beside the gauge control module.

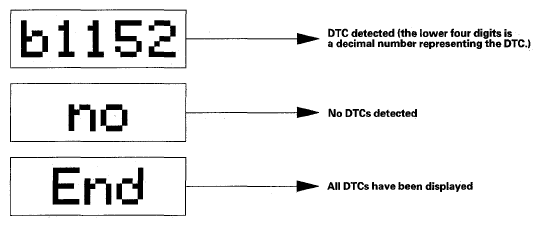

Fig 1: Gauge Control Module DTC Display

Courtesy of AMERICAN HONDA MOTOR CO., INC.

The unit that has stored the code can be identified by the number shown on the multi-information display.

CONTROL UNIT NUMBER CHART

Control Unit	Control Unit I.D. Number
MICU	10
Relay control module	11
Door multiplex control unit	30
Gauge control module	50
Climate control unit	51
Display panel control unit	52
Combination switch control unit	70
Automatic lighting control unit	72
HandsFreeLink control unit	94
Power seat control unit	95
AcuraLink control unit	97
