2006 Acura CSX K20A3FACTORY OEM SERVICE PROCEDURE

Removal (K20Z3 engine)

Disconnect the accelerator pedal module connector (A), then remove the nuts (B).

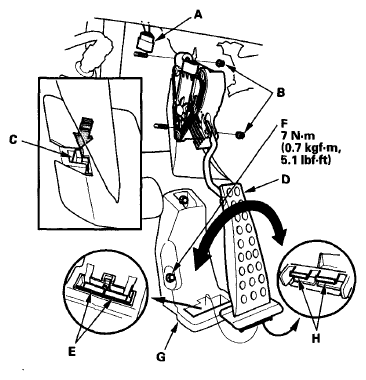

Fig 1: Disconnecting Accelerator Pedal Module Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Push the tab (C).
Pry the accelerator pedal module to right and left, and remove the accelerator pedal module (D).
NOTE:
- The APP sensor is not available separately. Do not disassemble the accelerator pedal module.
- If the tab or tab receivers (E) are damaged, pull back the carpet, remove the nut (F), and replace the pedal stop (G).
- If the tabs (H) of the accelerator pedal module are damaged, replace the accelerator pedal module.
