2004 Acura TL AutomaticFACTORY OEM SERVICE PROCEDURE

Shift Cable Replacement

  1. Remove the center console (see CENTER CONSOLE REAR SECTION REMOVAL/INSTALLATION ).
  2. Shift the transmission into the R position.
  3. Remove the nut securing the shift cable end.

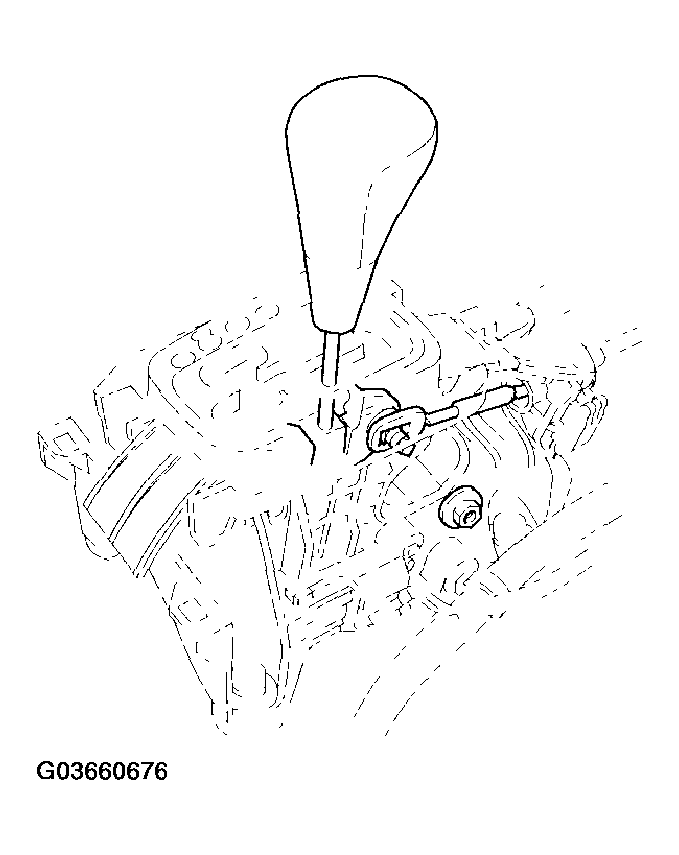

    Fig 1: Removing Nut Securing Shift Cable End
    G03660676Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Press the holder lock release (A), and pull out the socket holder (B) to remove the shift cable (C) from the shift lever bracket base (D).

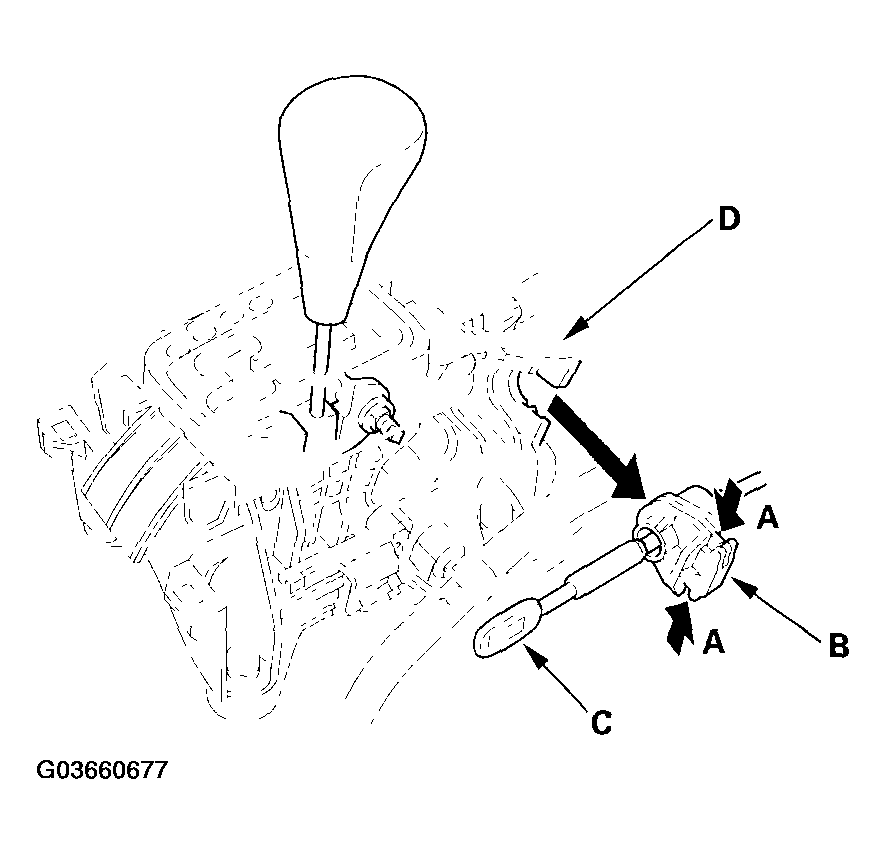

    Fig 2: Identifying Holder Lock Release (A), Socket Holder (B), Shift Cable (C) And Shift Lever Bracket Base (D)
    G03660677Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Raise the vehicle, and make sure it is securely supported.
  6. Remove the heat shield under the shift cable grommet.
  7. Remove the shift cable bracket (A) and grommet (B).

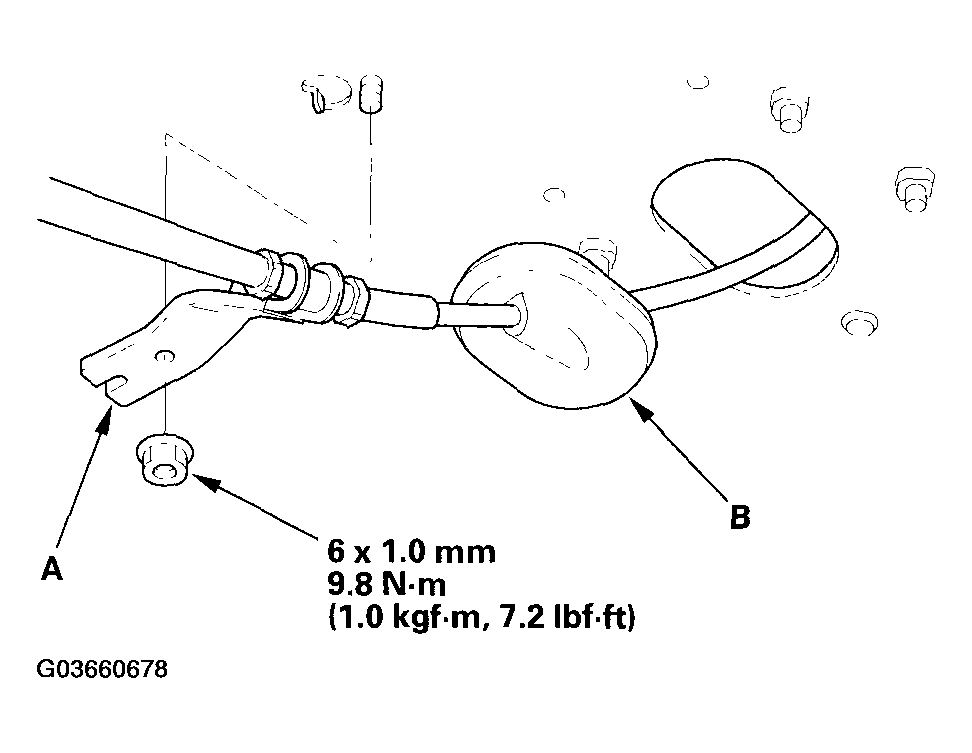

    Fig 3: Removing Shift Cable Bracket (A) And Grommet (B)
    G03660678Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Remove the bolts securing the shift cable holder (A), then remove the shift cable cover (B).
    NOTE: To prevent damage to the control lever joint, remove the bolts securing the holder before removing the bolts securing the cover.
