2004 Acura TL Automatic
Knock Sensor Replacement
2004 Acura TL AutomaticSECTION Knock Sensor Replacement
- Remove the intake manifold cover (see step 1 on REMOVAL ).
- Remove the fuel rails and the injector base.

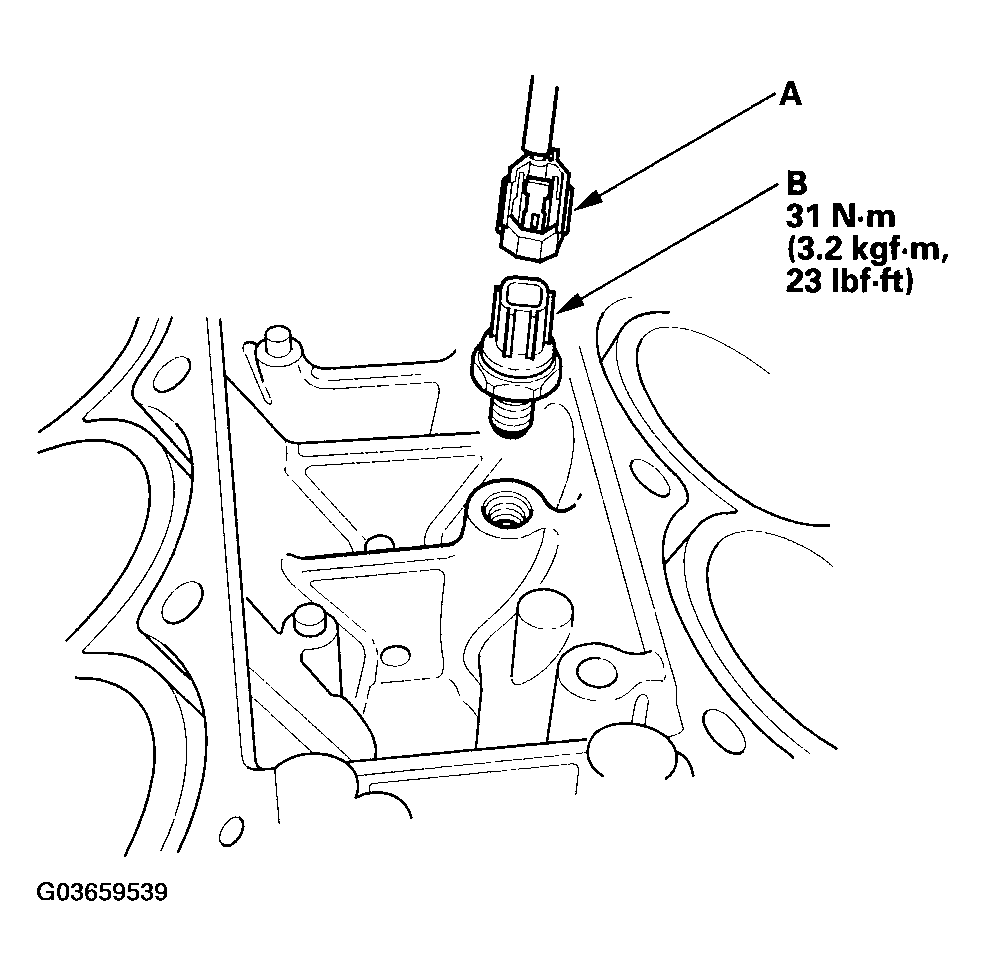

- Disconnect the knock sensor connector (A), then remove the knock sensor (B).
- Install the sensor in the reverse order of removal.
