2004 Acura TL AutomaticFACTORY OEM SERVICE PROCEDURE
Ignition Coil Removal/Installation

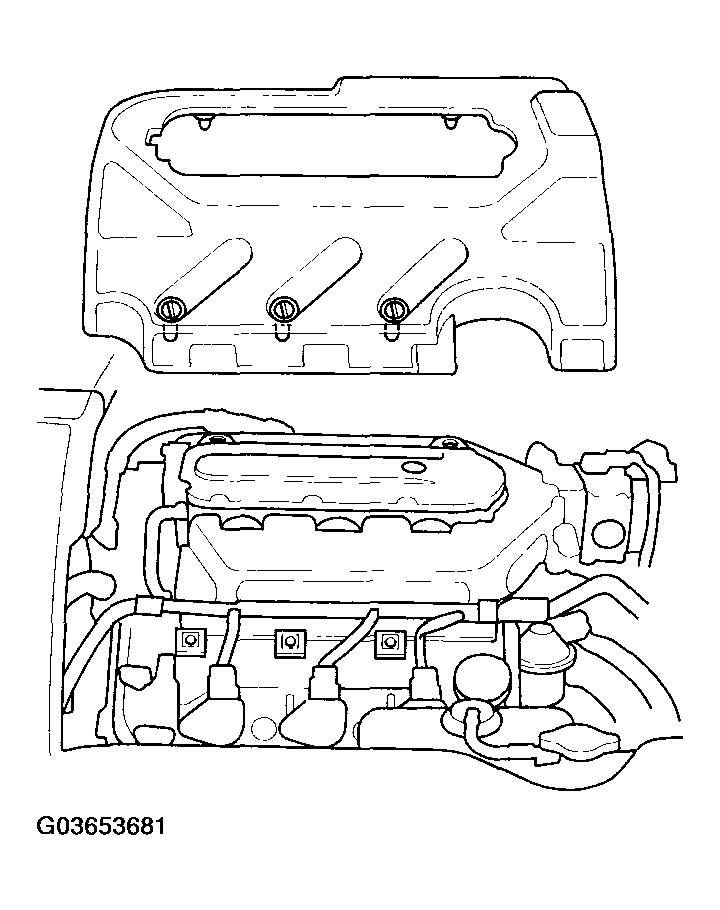

- Remove the intake manifold cover.

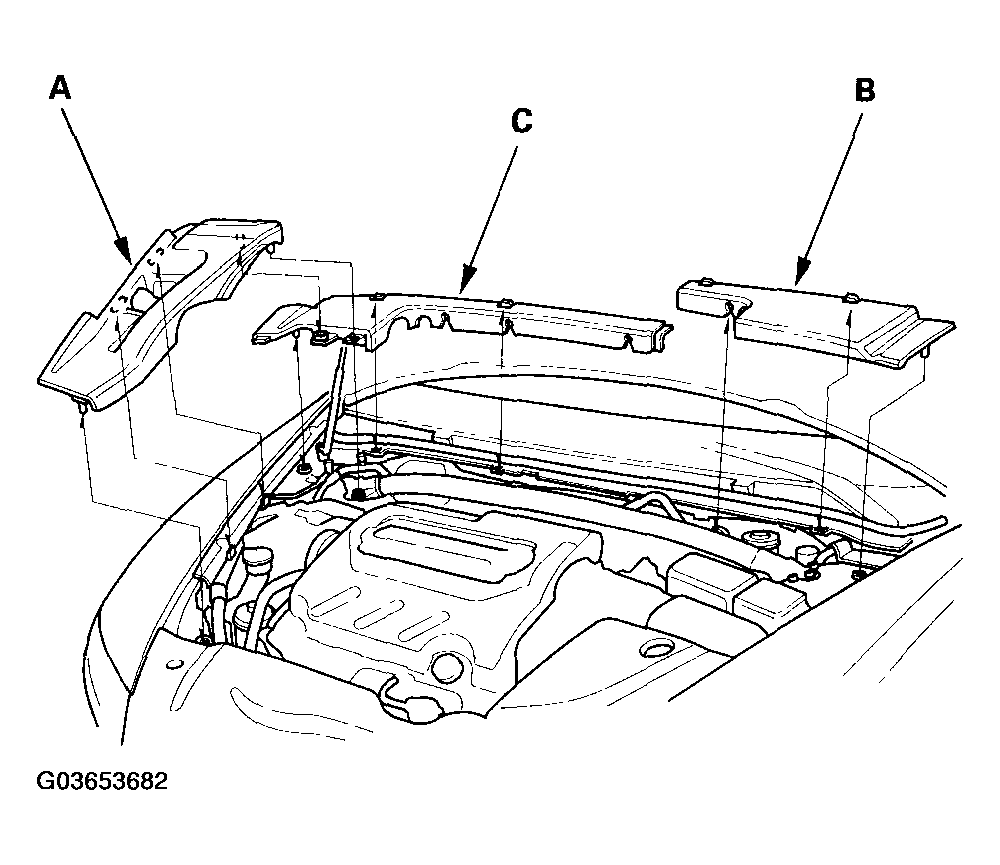

- Remove the right side engine compartment cover (A), then remove the left rear engine compartment cover (B) and right rear engine compartment cover (C).
- When removing the No. 6 coil you must remove the reserve tank heat shield and reserve tank.

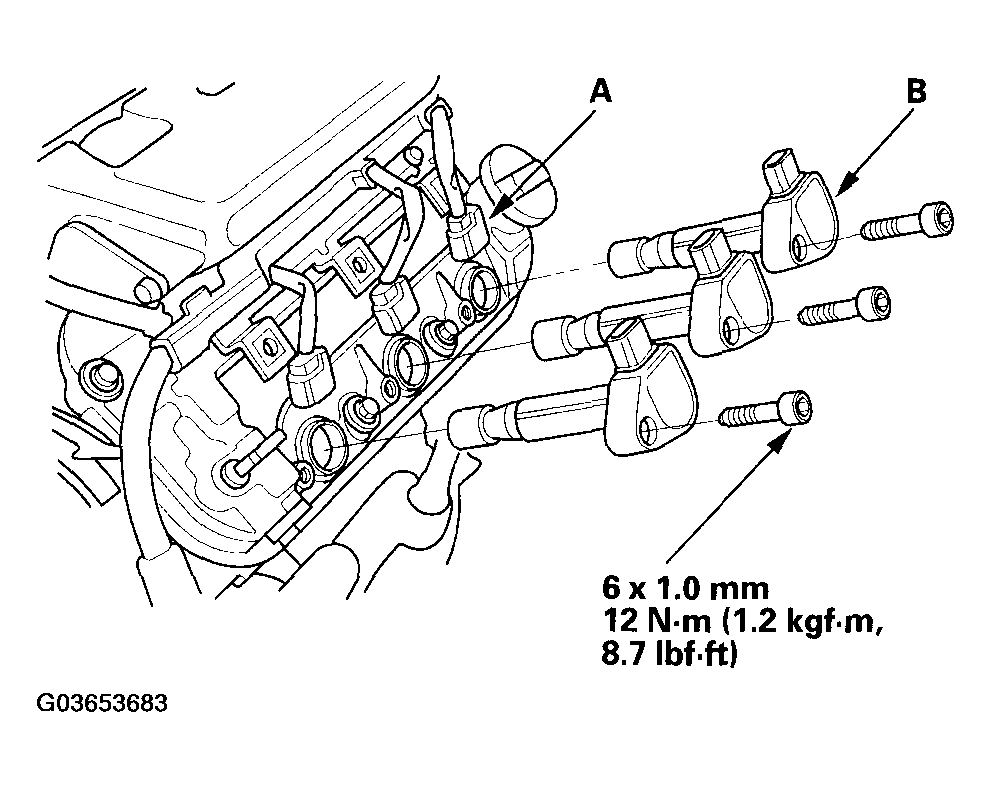

- Disconnect the ignition coil connectors (A), then remove the ignition coils (B).
- Install the ignition coils in the reverse order of removal.
