2004 Acura TL AutomaticFACTORY OEM SERVICE PROCEDURE
Master Switch Replacement
- Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

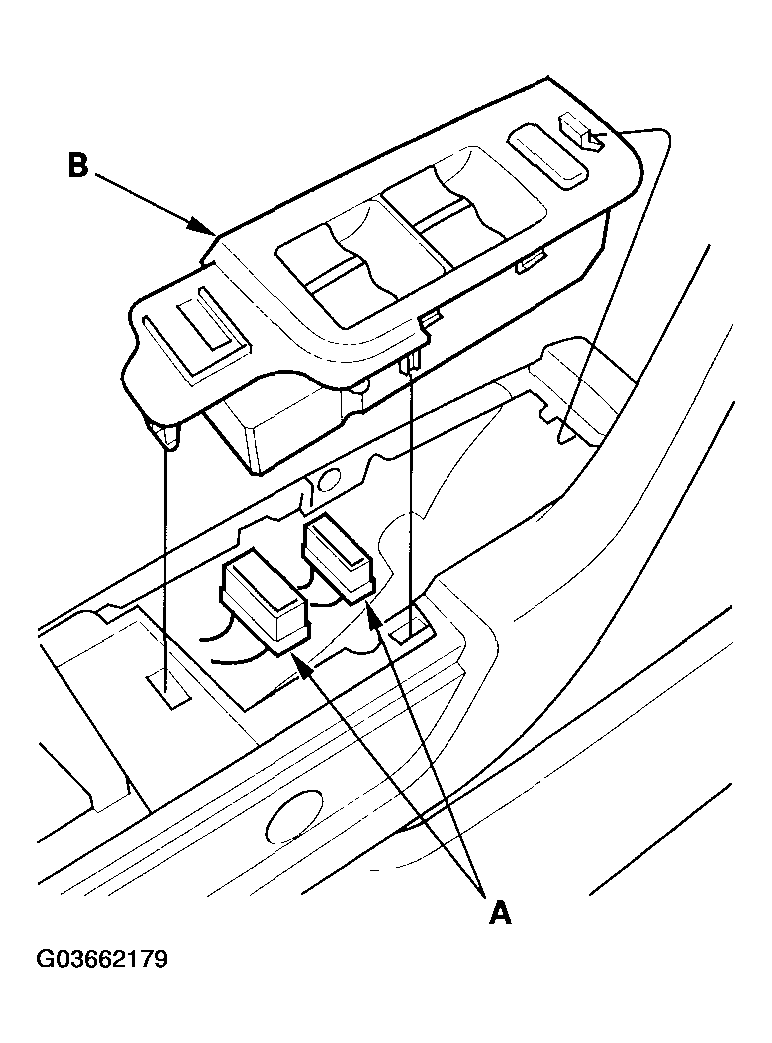

- Remove the screw and disconnect the connectors (A) from the master switch (B), then remove the switch assembly from the door panel.

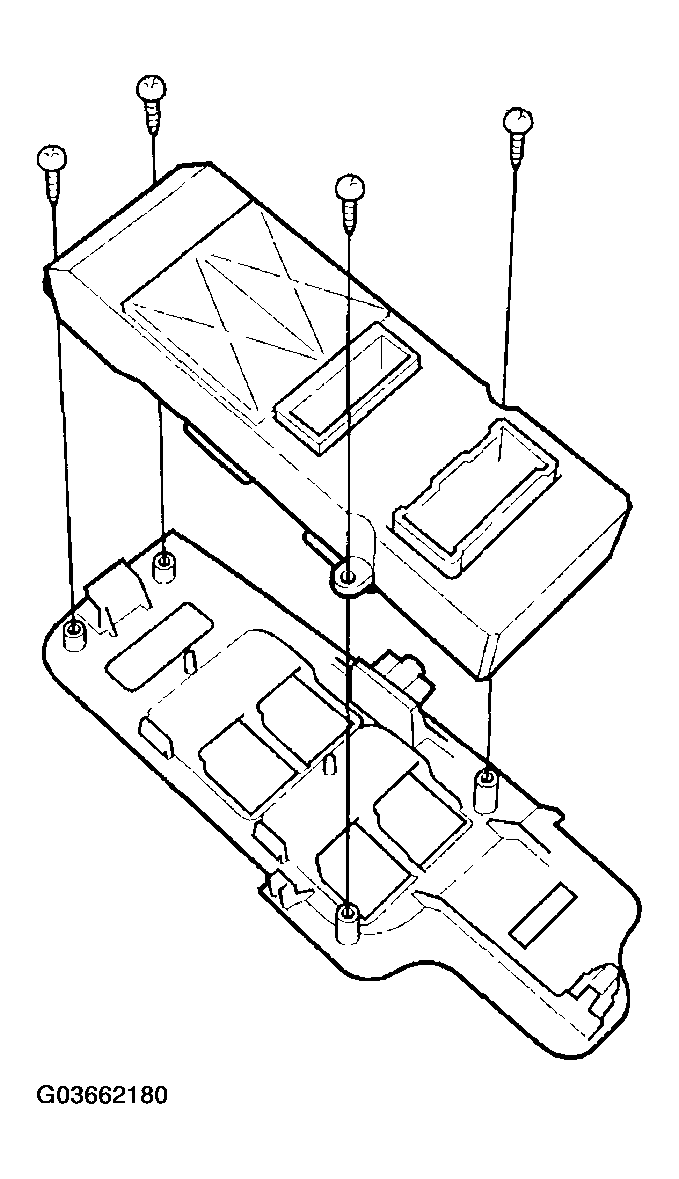

- Remove the four mounting screws, then remove the master switch from the switch panel.
- Install in the reverse order of removal.
- Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
