Power Mirror Control Unit Input Test

2004 Acura TL AutomaticSECTION Power Mirror Control Unit Input Test
NOTE: Before troubleshooting the DPMS, troubleshoot the multiplex integrated control system first using B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
  1. Turn the ignition switch OFF.
  2. Remove the dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  3. Disconnect the 26P connector (A) from the power mirror control unit (B).

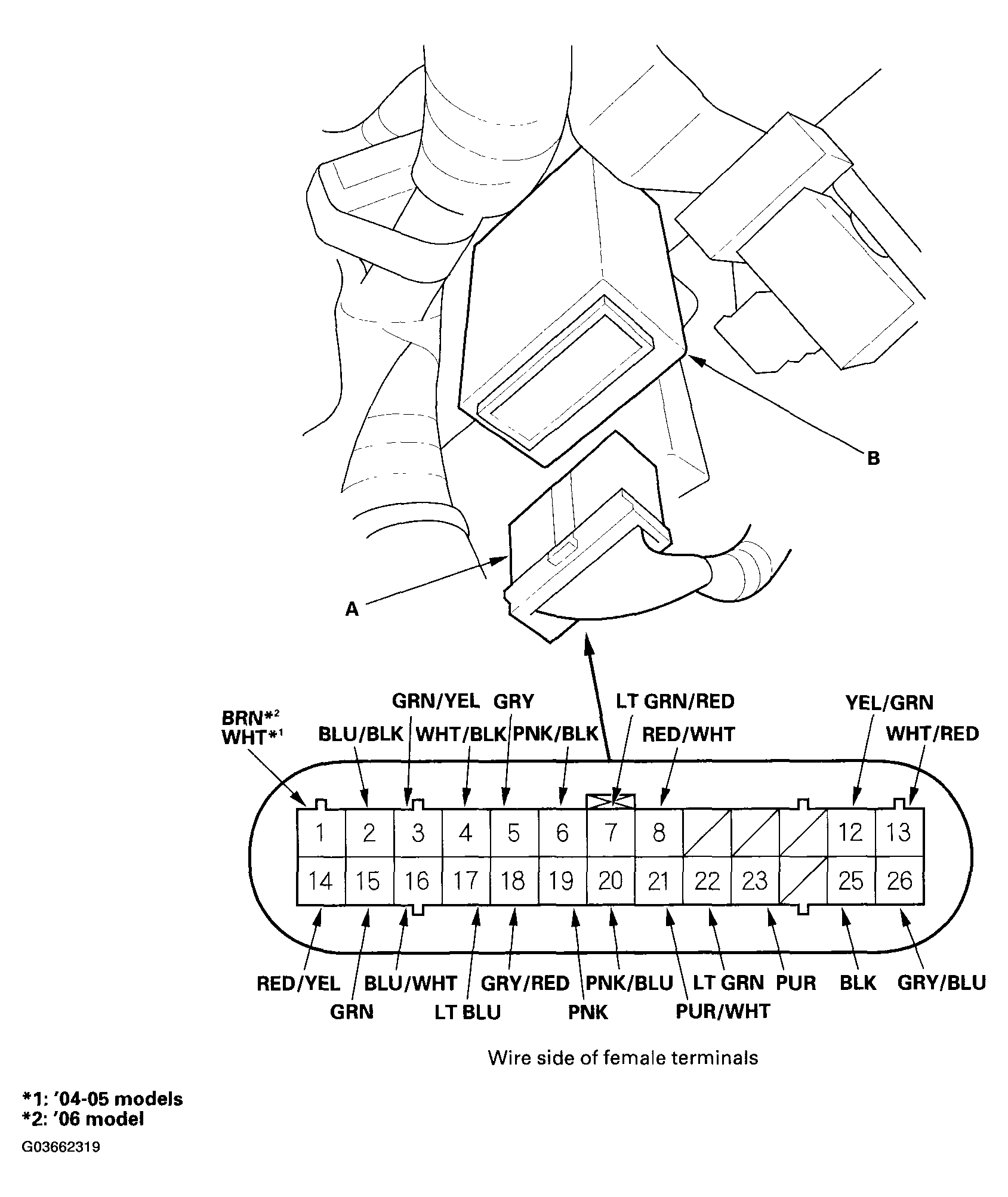

    Fig 1: Disconnecting 26P Connector (A) From Power Mirror Control Unit (B)
    G03662319Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step  5.
  5. With the connector still disconnected, make these input tests at the connector.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, the control unit must be faulty; replace it.
    SYSTEM INPUT TEST AND FUNCTION TEST

    Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained
    25 BLK Under all conditions Check for continuity to ground:
    There should be continuity.
    • Poor ground (G501)
    • An open in the wire
    12 YEL/GRN Ignition switch ON (II) Check for voltage to ground:
    There should be battery voltage.
    • Blown No. 20 (7.5 A or 15 A) fuse in the under-dash fuse/relay box
    • An open in the wire
    13 WHT/RED Under all conditions Check for voltage to ground:
    There should be battery voltage.
    • Blown No. 7 (7.5 A) fuse in the under-dash fuse/relay box
    • An open in the wire
    26 GRY/BLU Under all conditions Check for voltage to ground:
    There should be battery voltage.
    • Blown No. 6 (7.5 A) fuse in the under-dash fuse/relay box
    • An open in the wire
    23 PUR Under all conditions Check for continuity between the No. 23 terminal and power seat control unit connector C (12P) No. 4 terminal:
    There should be continuity.    		 An open in the wire
    Power seat control unit connector (12P) disconnected Check for continuity between the No. 23 terminal and body ground:
    There should be no continuity.    		 A short to ground in the wire
