2004 Acura TL Automatic

Driving Position Memory Switch Test/Replacement

2004 Acura TL AutomaticSECTION Driving Position Memory Switch Test/Replacement

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 10P connector from the memory switch (A).

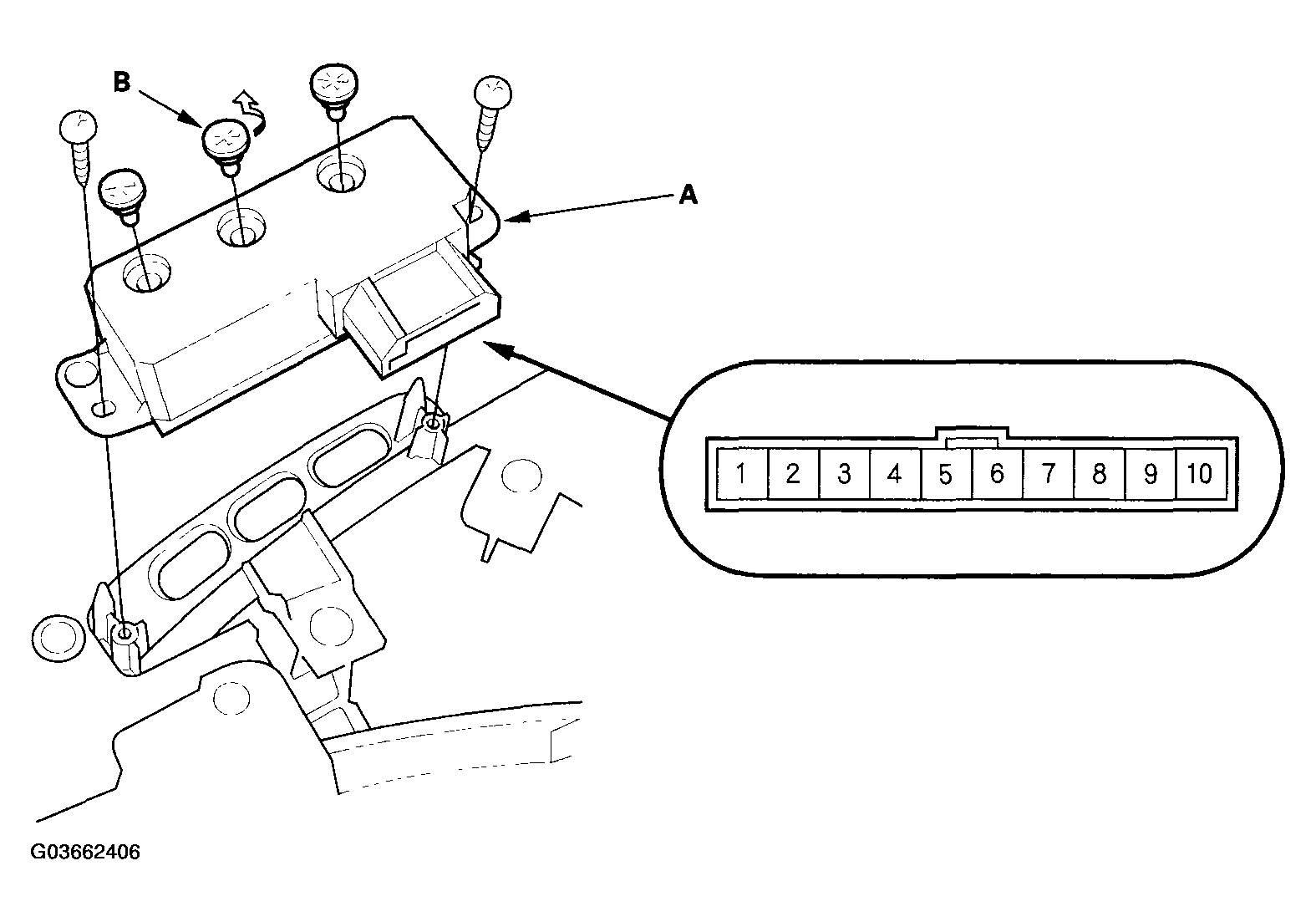

Fig 1: Disconnecting 10P Connector From Memory Switch (A)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

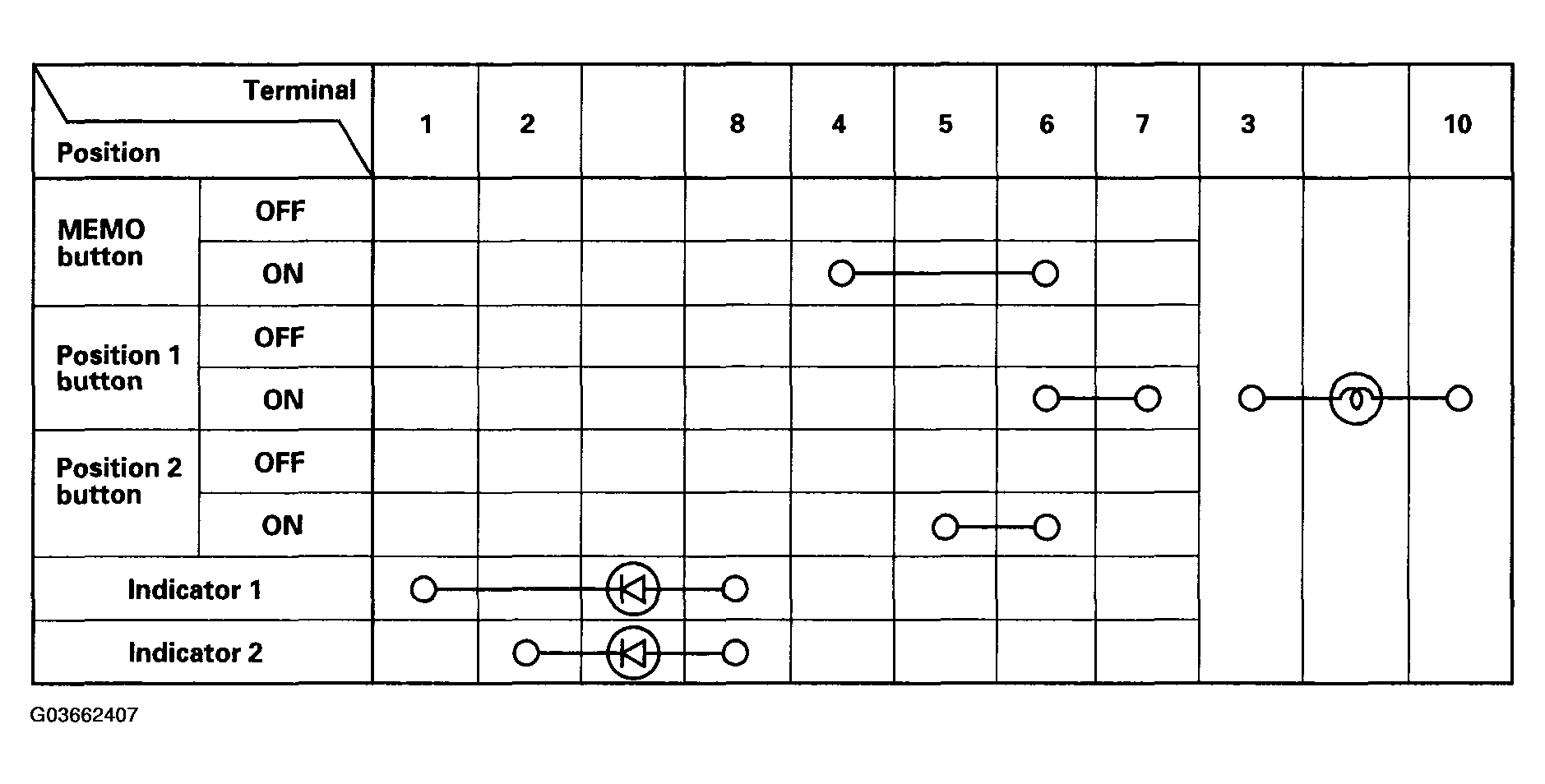

Fig 2: Checking Continuity Between Terminals Specification Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity check is not as specified, replace the bulbs (B), or remove the screws and replace the switch.
