Gauge Control Module DTC Display: Notes

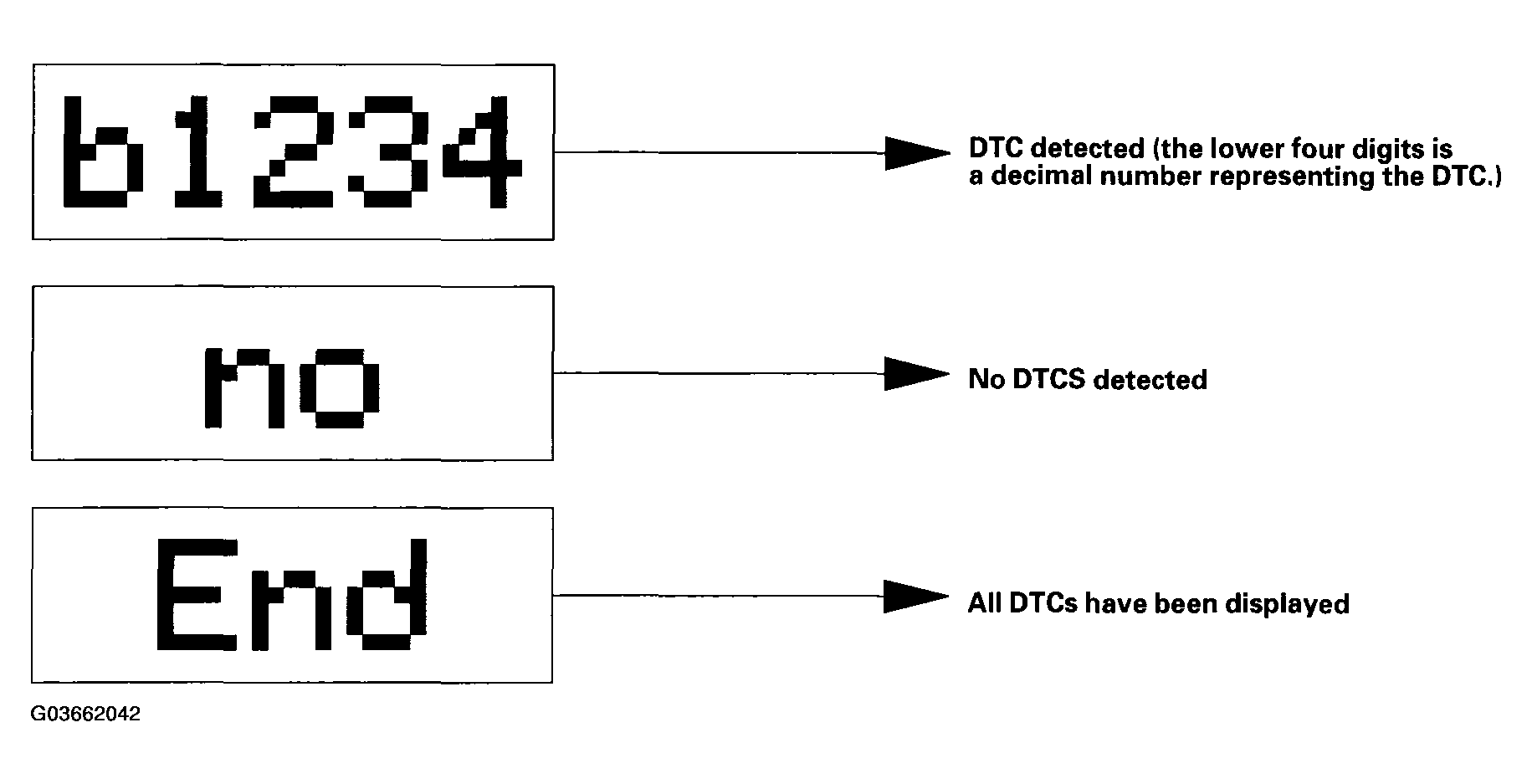

While in Test Mode 1, the DTCs which have been detected and stored individually by various B-CAN (Body-controller Area Network) units, will be shown one by one on the multi-information display when the communication between the Multiplex Integrated Control Unit (MICU) and the gauge control module are normal. To scroll through the DTCs, press the SELECT/RESET button beside the gauge control module.
The unit that has stored the code can be identified by the number shown on the multi-information display.
| Control Unit | Control Unit I.D. Number |
|---|---|
| MICU | 10 |
| Relay control module | 11 |
| Door multiplex control unit | 30 |
| Gauge control module | 50 |
| Climate control unit | 51 |
| Display panel control unit | 52 |
| Combination switch control unit | 70 |
| HandsFreeLink control unit | 94 |
| Power seat control unit | 95 |
