2003 Acura RSX Base, AutomaticFACTORY OEM SERVICE PROCEDURE

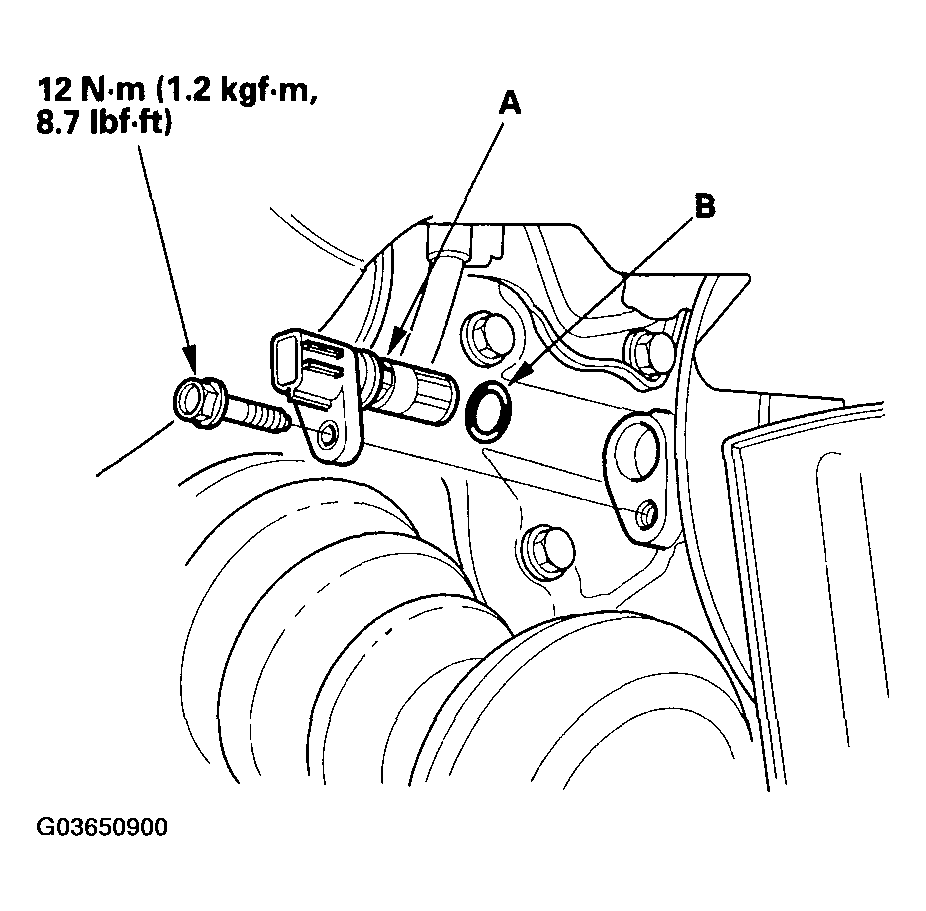

CKP Sensor Replacement
- Disconnect the CKP sensor 3P connector.
- Remove the CKP sensor (A).
- Install the sensor in the reverse order of removal with a new O-ring (B).
- 2005-2006 models: Do the CKP pattern clear/pattern learn procedure (see ECM/PCM RESET (2005-2006 MODELS) ).
