2003 Acura MDX BaseFACTORY OEM SERVICE PROCEDURE
ATF Temperature Sensor Replacement
- Remove the splash shield.

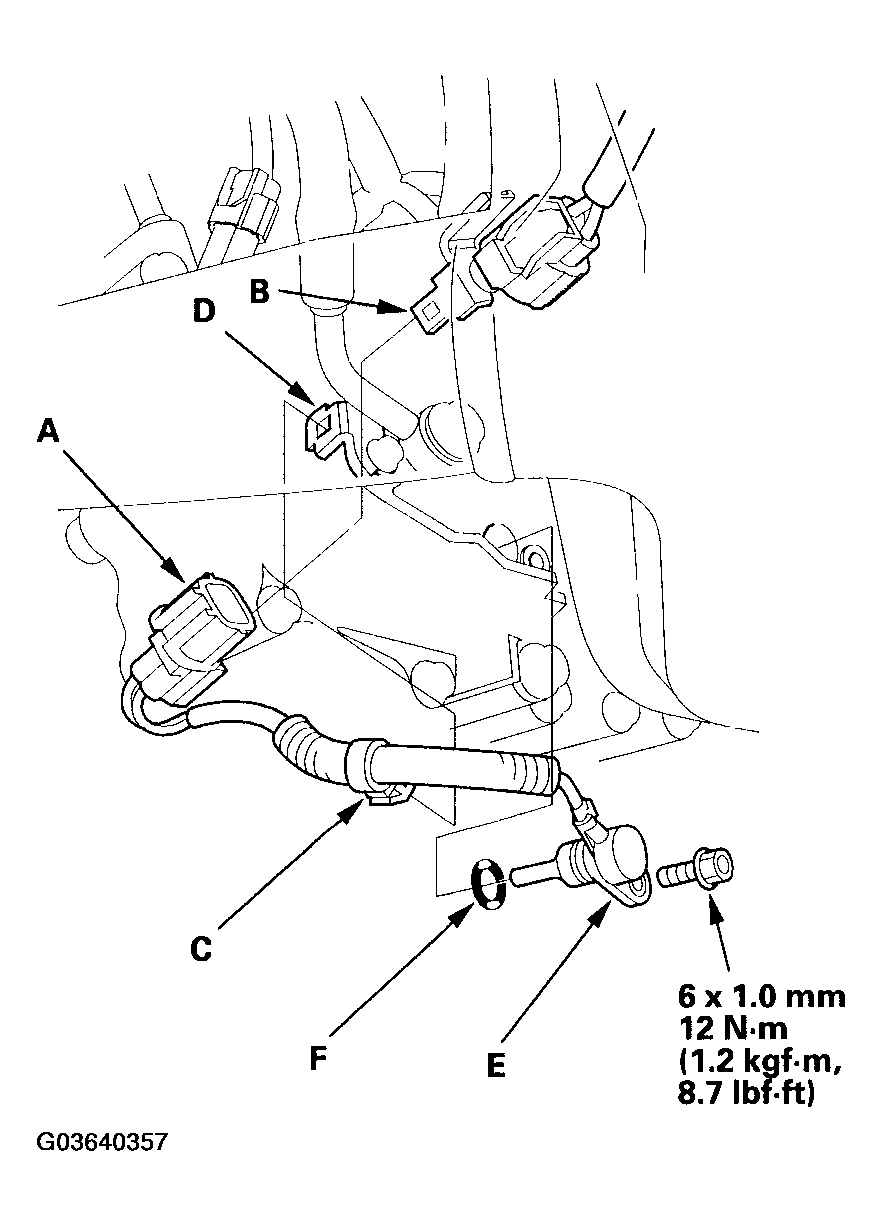

- Disconnect the ATF temperature sensor connector (A), then remove the connector from the connector bracket (B).
- Remove the harness clamp (C) from its bracket (D).
- Remove the ATF temperature sensor, and replace with new one.
- Install the new ATF temperature sensor (E) and a new O-ring (F).
- Install the ATF temperature sensor connector to the connector bracket, then connect the connector.
- Install the harness clamp on its bracket.
- Install the splash shield.
