2003 Acura MDX BaseFACTORY OEM SERVICE PROCEDURE

Gateway Function

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

The gauge control module acts as a gateway to allow both systems to share information, the gauge control module translates information from B-CAN to F-CAN and from F-CAN to B-CAN.

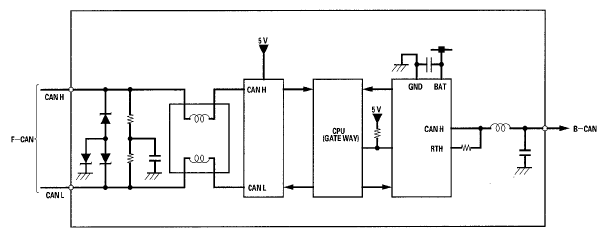

Fig 1: Gateway Function Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
