2003 Acura MDX BaseFACTORY OEM SERVICE PROCEDURE
Fuel Pressure Test
Special Tools Required
- Fuel pressure gauge 07406-004000A
- Fuel pressure gauge set 07AAJ-S6MA150
- Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).

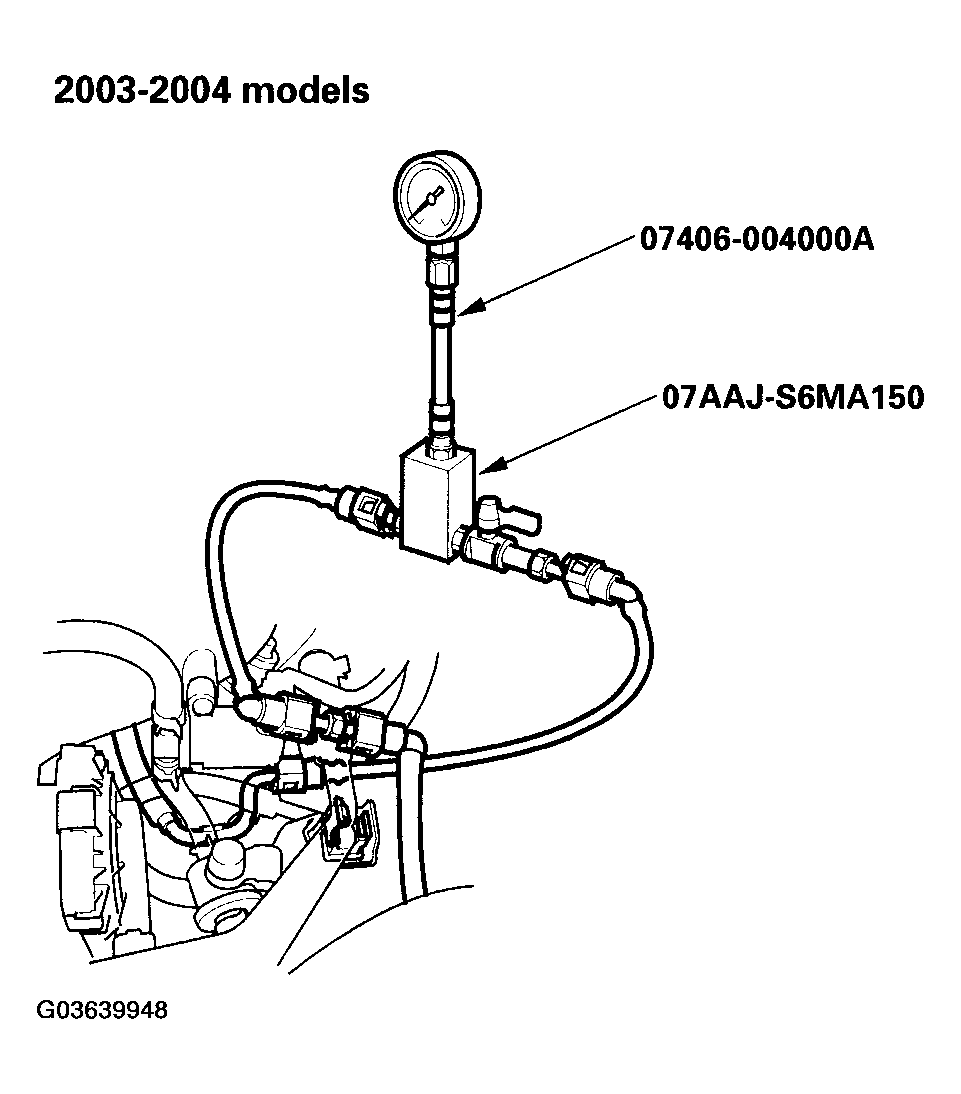

- Disconnect the quick-connect fitting (A). Attach the fuel pressure gauge set and the fuel pressure gauge.
