2003 Acura MDX BaseFACTORY OEM SERVICE PROCEDURE
Fuel Line/Quick-Connect Fitting Installation
NOTE:
Read the FUEL LINE/QUICK-CONNECT FITTING PRECAUTIONS
before doing this procedure.

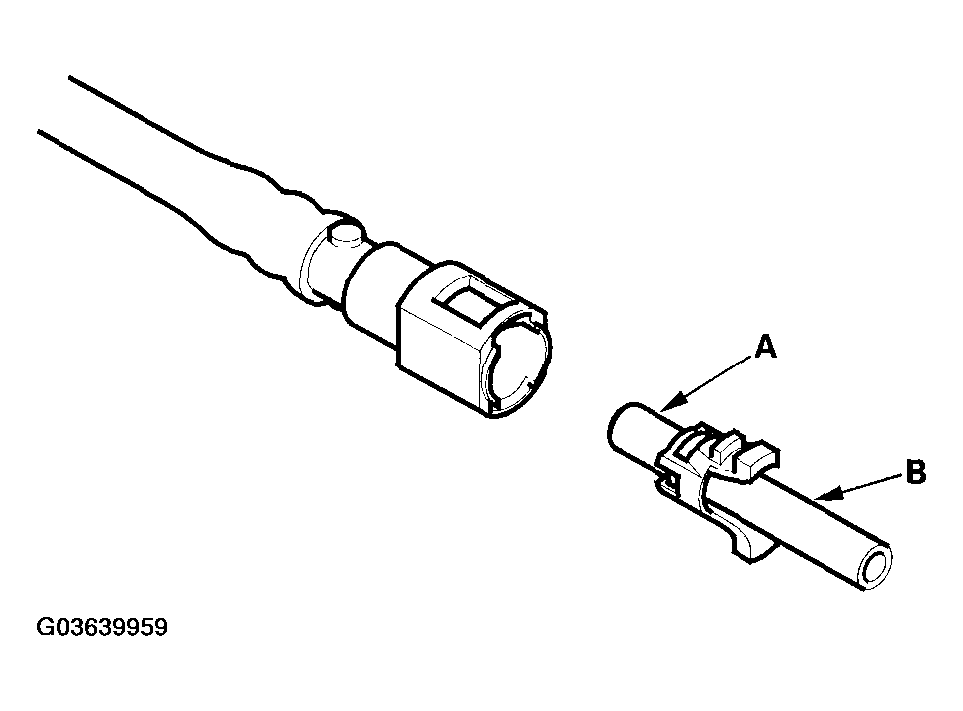

- Check the contact area (A) of the line (B) for dirt or damage, and clean it if necessary.

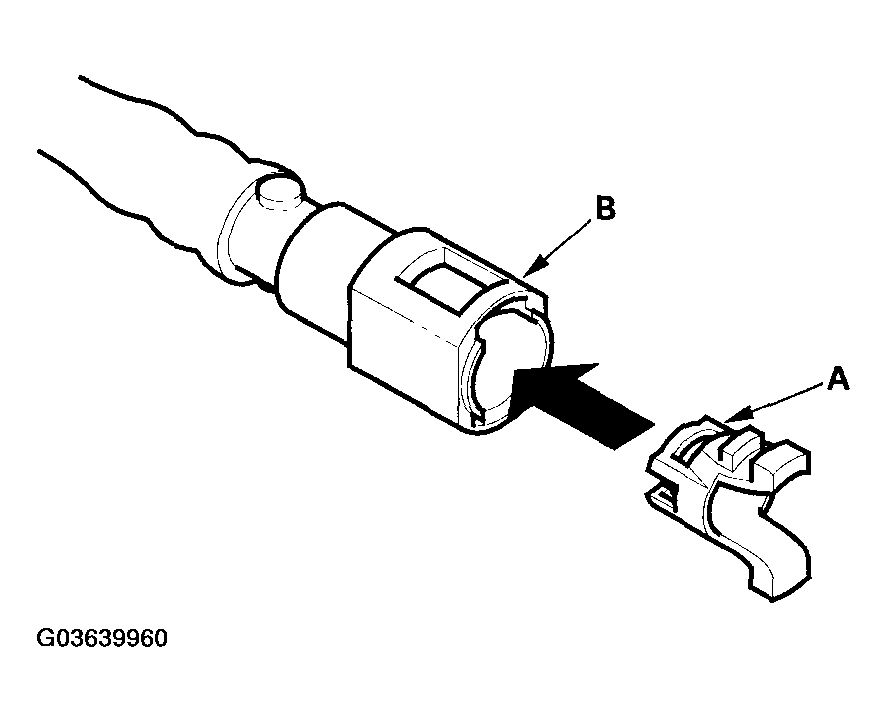

- Insert a new retainer (A) into the connector (B) if the retainer is damaged, or after:
- replacing the fuel rails.
- replacing the fuel feed line.
- replacing the fuel pump.
- replacing the fuel filter.
- replacing the fuel gauge sending unit.
- removing the retainer from the line.

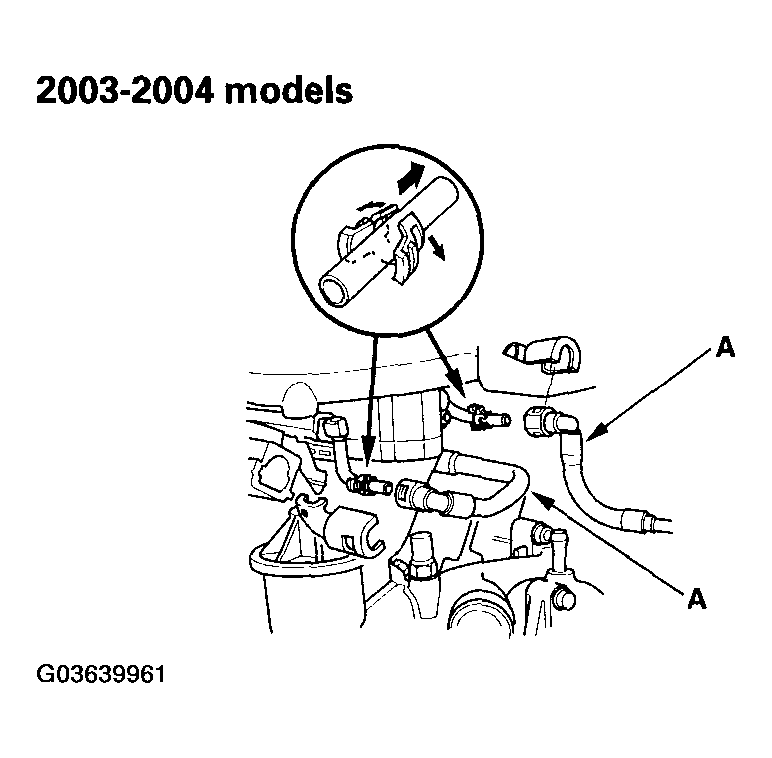

- Before connecting a new fuel line/quick-connect fitting assembly (A), remove the old retainer from the mating line.
