Passenger's Window Switch Test/Replacement
- Carefully pry off the door switch trim (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

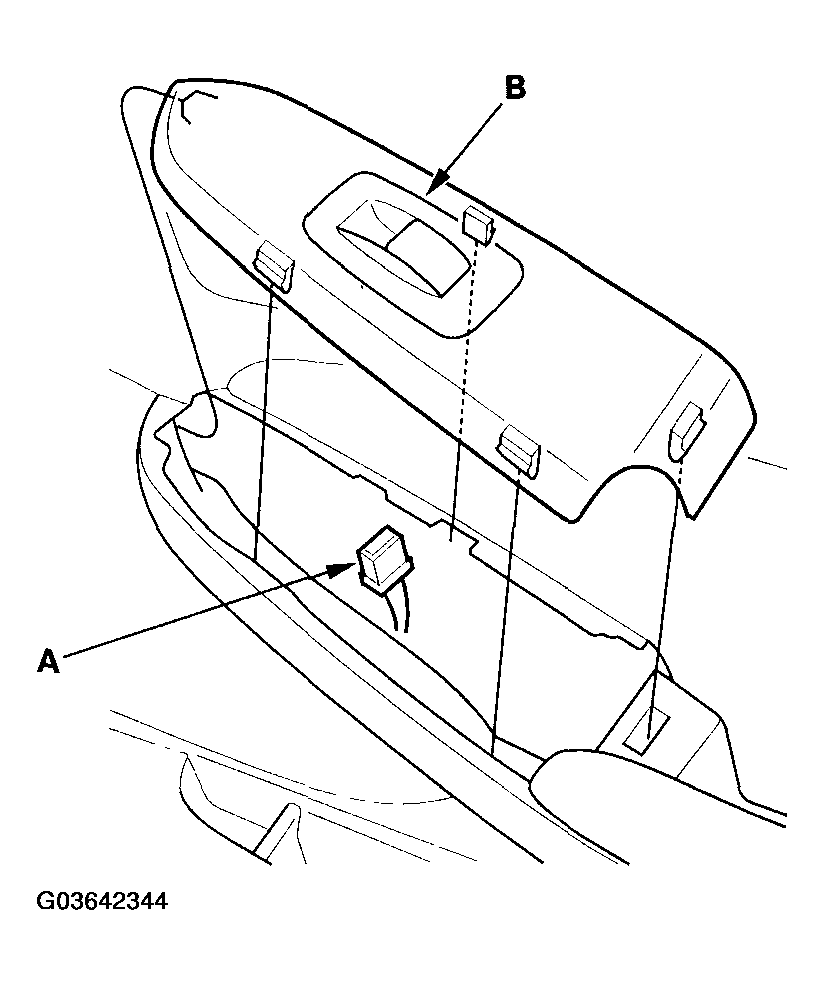

- Disconnect the 6P connector (A) from the power window switch (B).

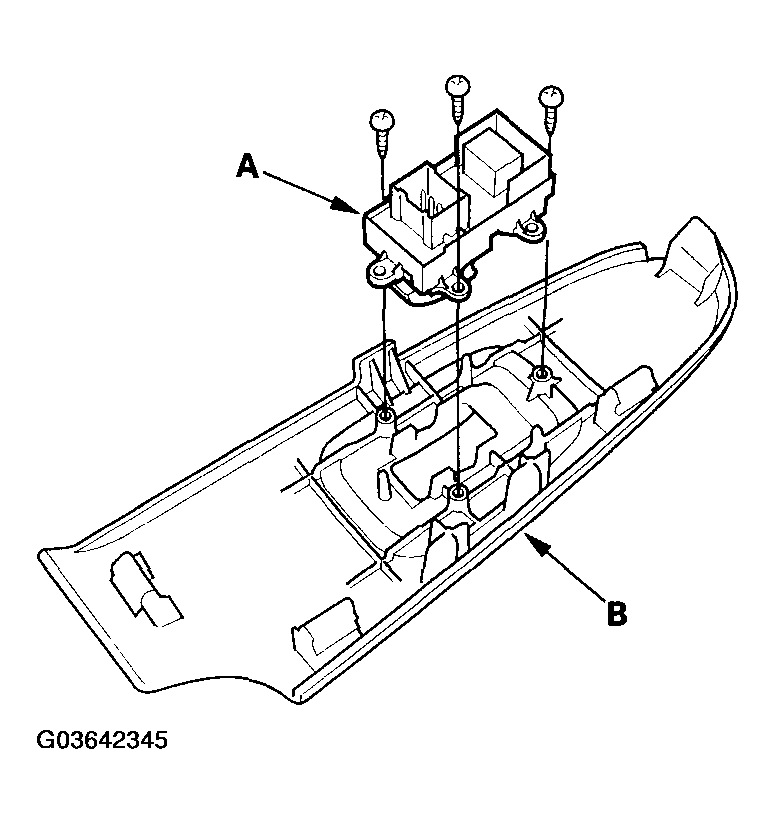

- Remove the three mounting screws, then remove the power window switch (A) from the switch trim (B).
- Swap the window switch with another known-good switch and test.
If the original window switch is faulty, replace it.
