2003 Acura MDX BaseFACTORY OEM SERVICE PROCEDURE

Motor Test

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 6P connector (A) from the window motor.

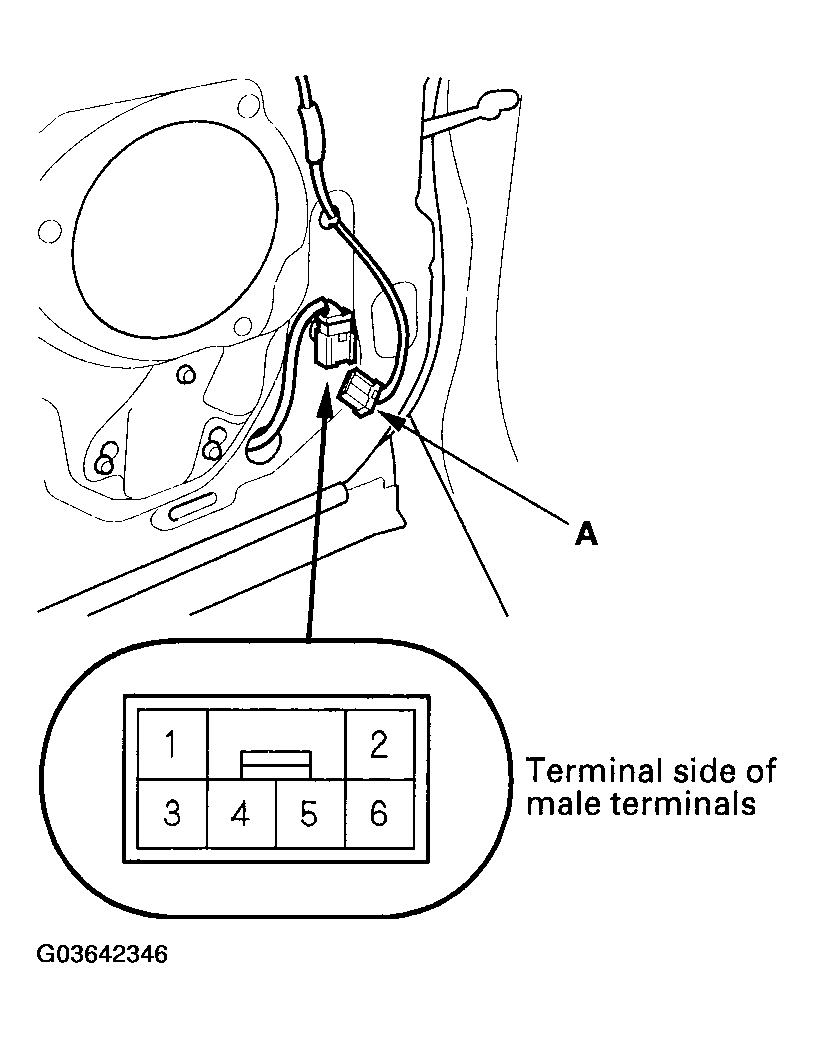

Fig 1: Disconnecting 6P Connector From Window Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the motor in each direction by connecting battery power and ground according to Fig 2 . When the motor stops running, disconnect one lead immediately.

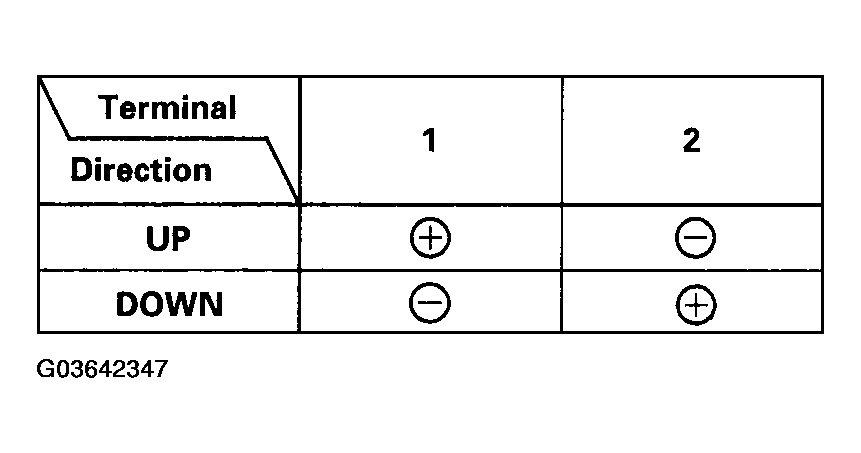

Fig 2: Testing Motor In Each Direction By Connecting Battery Power And Ground Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it.
