Running the Self-diagnosis Function

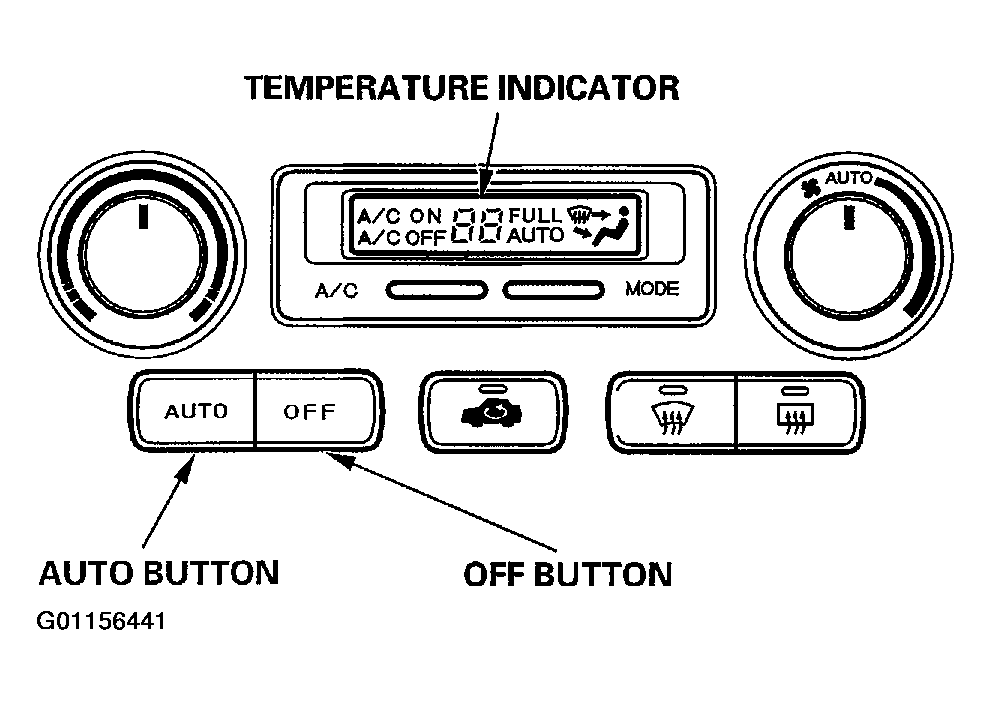

With Navigation SystemÂ

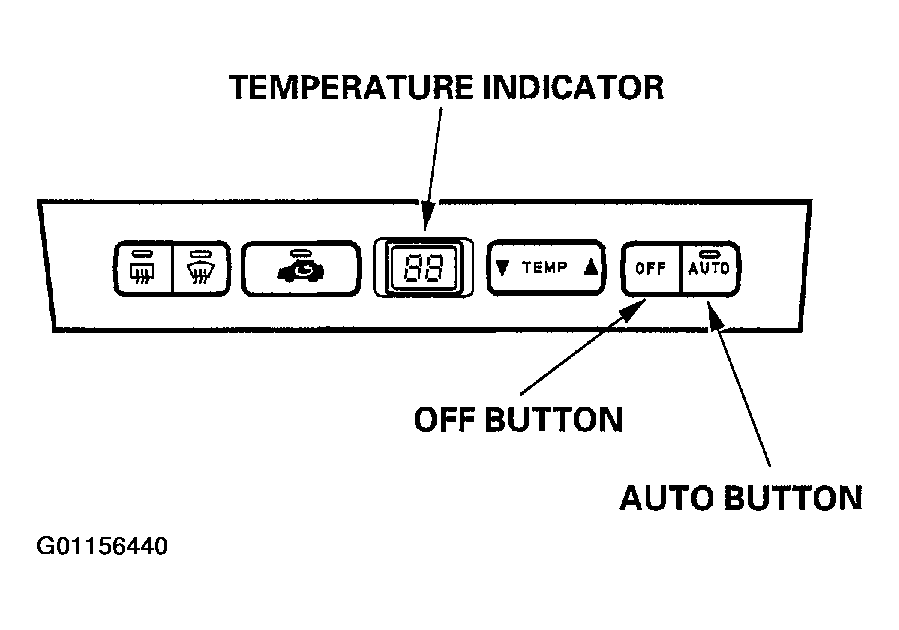

Without Navigation SystemÂ
- Turn the ignition switch ON (II).
- Press the AUTO button and then the OFF button. Continue to hold both buttons down for 1 minute.

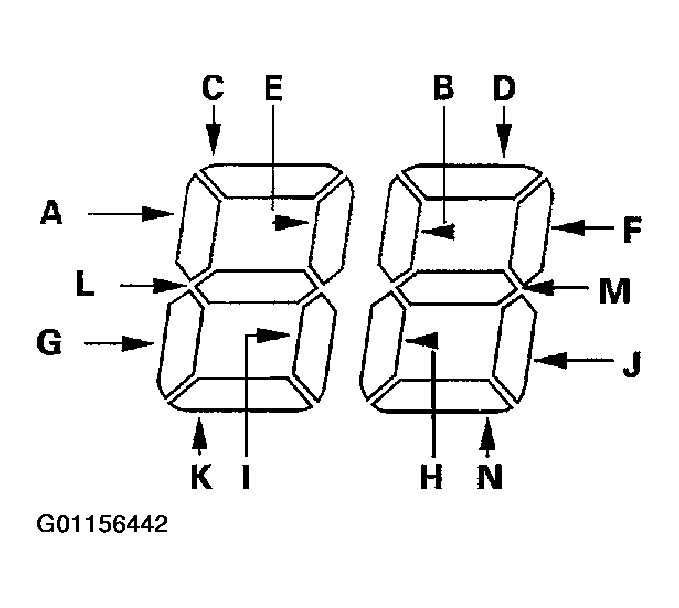

If there is any abnormality in the system, the temperature indicator will light up the segment (A through N) corresponding to the error. The temperature indicator will then alternate every second between displaying "88" (all segments lit) and the error code segment (A through N).
To determine the meaning of the DTC, refer to DTC TROUBLESHOOTING INDEXÂ . If there is no abnormality, the segments will not light up.
