2003 Acura 3.2TL BaseFACTORY OEM SERVICE PROCEDURE
Piston, Pin & Connecting Rod: Inspection

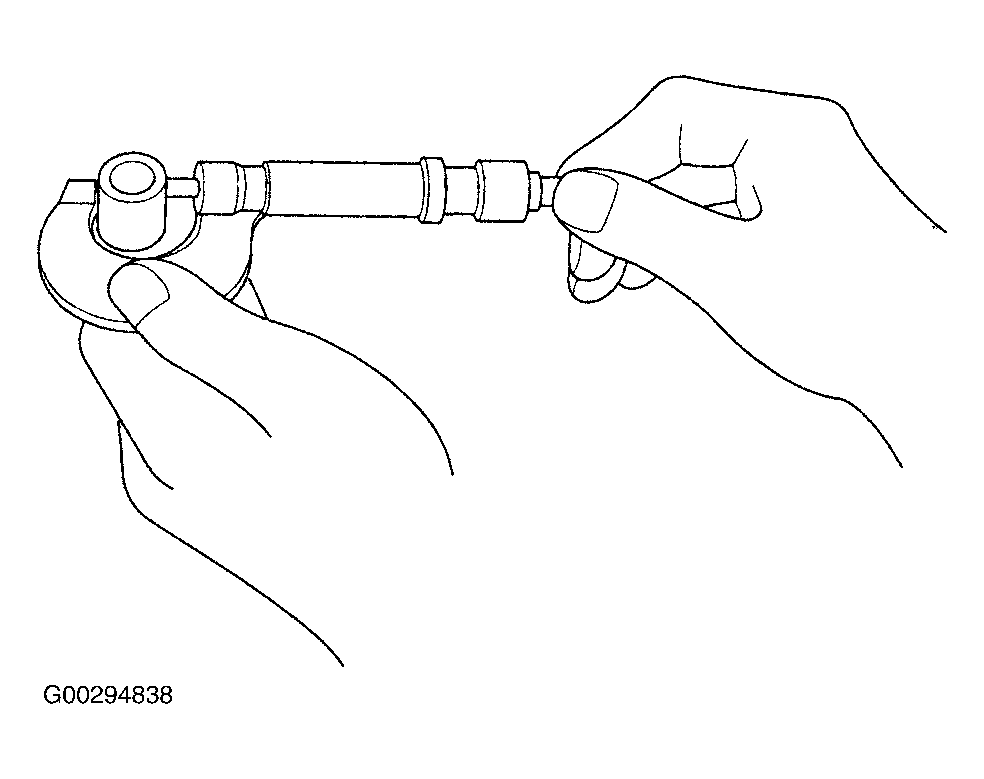

- Measure the diameter of the piston pin. See Fig 1 and PISTON PIN DIAMETER table.
- Zero the dial indicator to the piston pin diameter. See Fig 2
- Check the difference between the piston pin diameter and piston pin hole diameter on the piston. See Fig 3 and PISTON PIN-TO-PISTON CLEARANCE table.
- Measure the piston pin-to-connecting rod clearance. See Fig 4 and PISTON PIN-TO-CONNECTING ROD CLEARANCE table.
