Fan Control Module

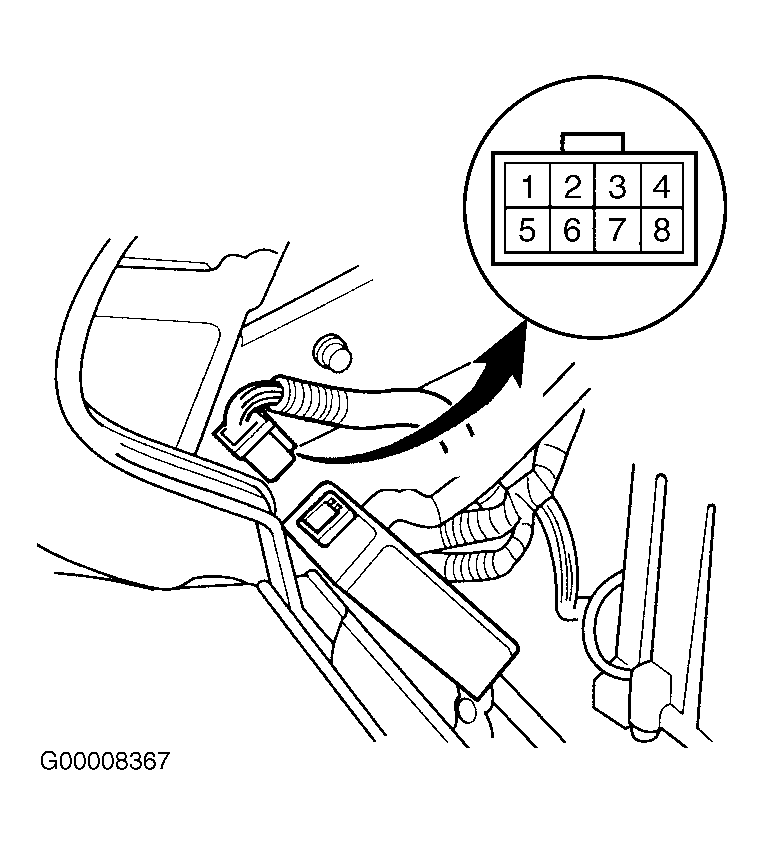

If fan does not operate, check for open or short circuits in wiring between components and fan control module or fan control unit. See appropriate FAN CONTROL MODULE TERMINALS or FAN CONTROL UNIT TERMINALS table. Also see WIRING DIAGRAMS . If all wiring and other components are okay, replace fan control unit.
| Terminal No. (1) | Wire Color(2) | Circuit | ||||
|---|---|---|---|---|---|---|
| 1 | Yellow | Radiator Fan Relay (+) | ||||
| 2 | Black/Yellow | Power Supply (Ign. On) | ||||
| 3 | Yellow/White | Condenser Fan Relay (+) | ||||
| 4 | Black | Ground | ||||
| 5 | White/Green | Engine Coolant Temp. Sw. | ||||
| 6 | White | Power Supply (Ign. On) | ||||
| 7 | Black/Yellow | Power Supply (Ign. On) | ||||
| 8 | Green | Condenser & Radiator Fan Relay (-) | ||||
|
||||||
