Hazard Warning Switch

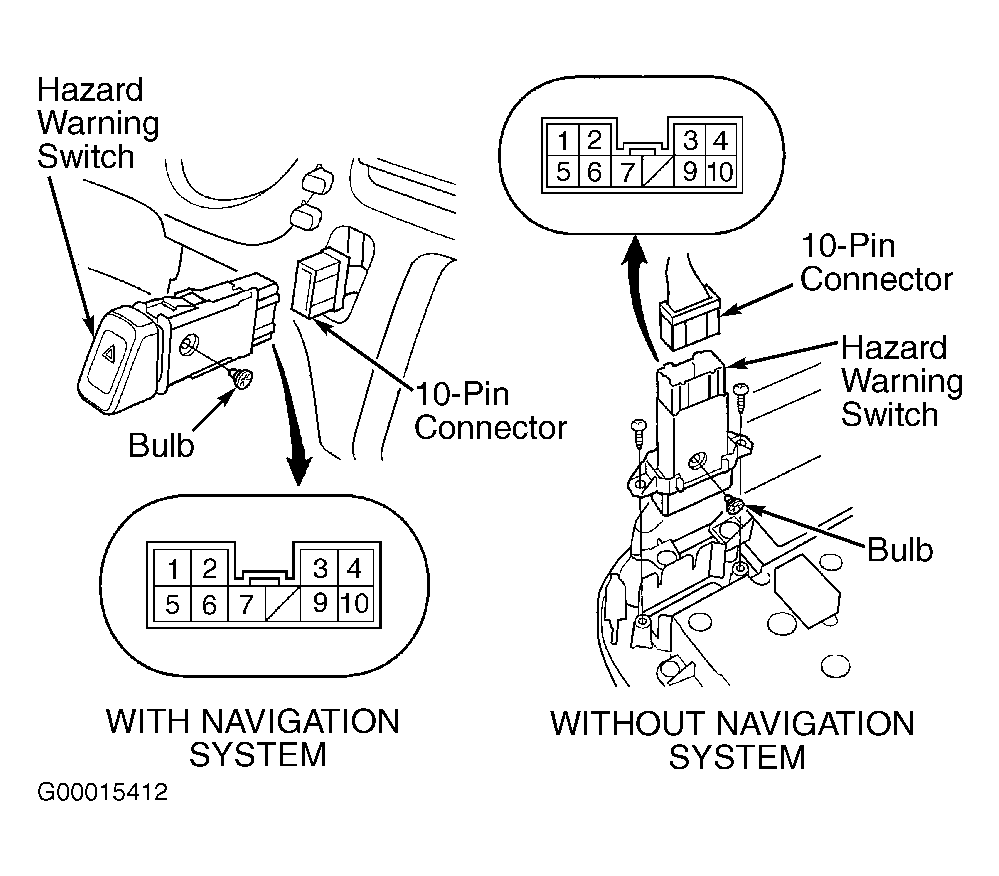

Remove instrument cluster assembly. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Remove hazard warning switch. Check for continuity between specified switch terminals with switch in ON and OFF positions. See HAZARD WARNING SWITCH CONTINUITY table. See Fig 1. If continuity is not as specified, replace hazard warning switch. If continuity is as specified, check turn signal/hazard relay input. See TURN SIGNAL/HAZARD RELAY INPUT under SYSTEM TESTS.
| Switch Position | (1) Check Continuity Between Terminals No. | ||
|---|---|---|---|
| Off | 5 & 10; 6 & 7 | ||
| On | 1, 2 & 3; 5 & 9; 6 & 7 | ||
|
|||
