TCS Switch

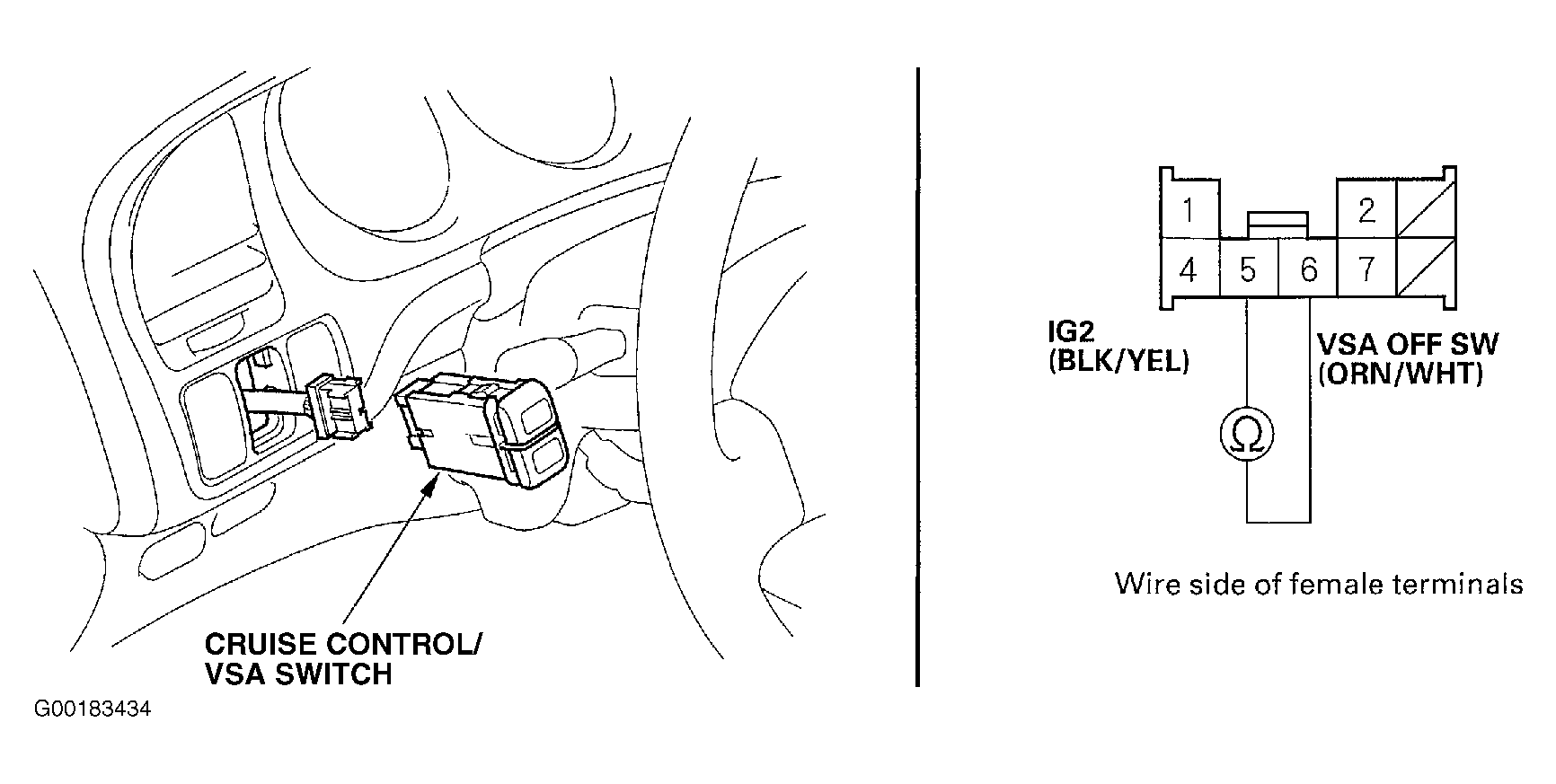

Remove the cruise control/TCS switch from the switch panel. Check for continuity between terminals No. 5 and 6. There should be continuity when the TCS switch is pushed. See Fig 1 .
