2003 Acura 3.2TL BaseFACTORY OEM SERVICE PROCEDURE

Driving Position Memory Switch Test/Replacement

Remove the driver's door panel .
Disconnect the 10P connector from the memory switch (A).

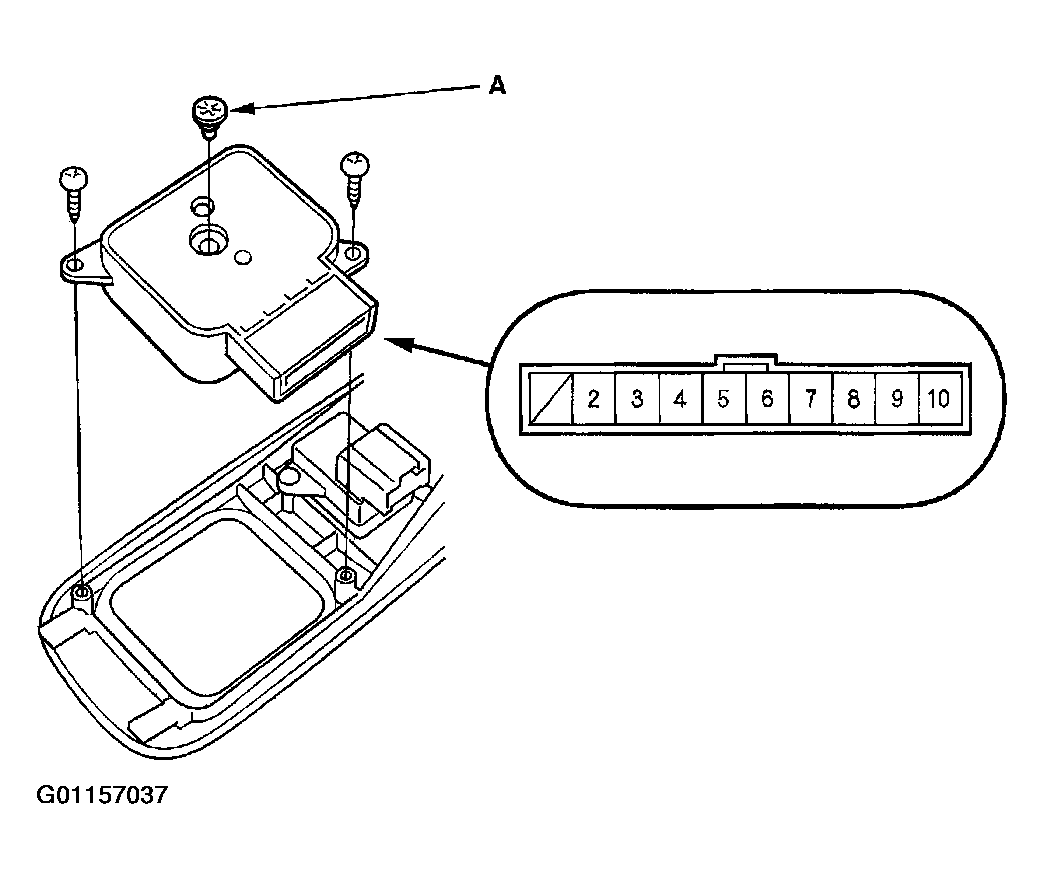

Fig 1: Disconnecting The Connector From The Driving Position Memory Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

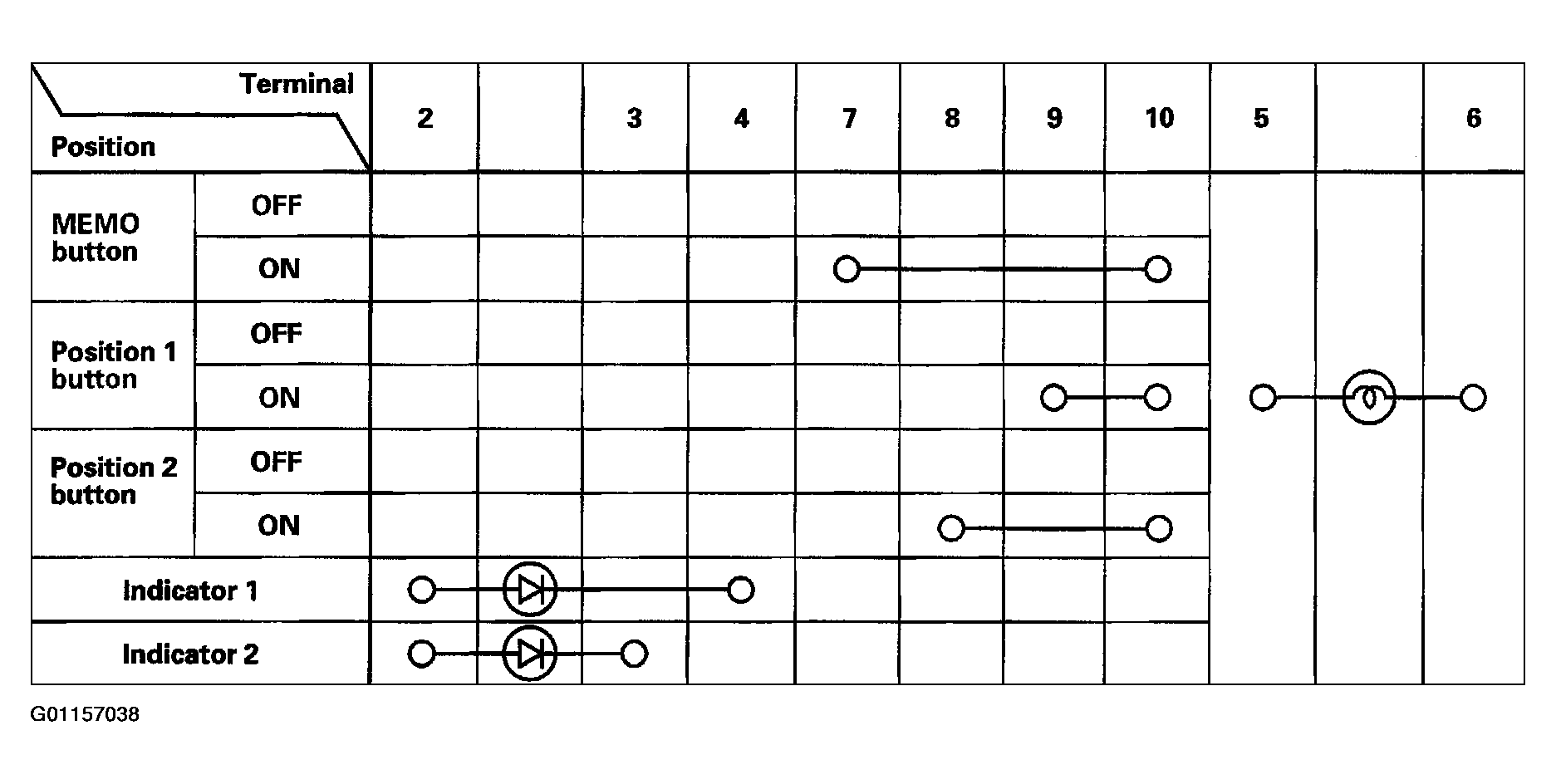

Fig 2: Driving Position Memory Switch Continuity Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the bulb (A) or the switch.
