Rack Guide Adjustment
Special Tools Required
Locknut wrench, 40 mm 07916-SA50001
- Set the wheels in the straight ahead position.

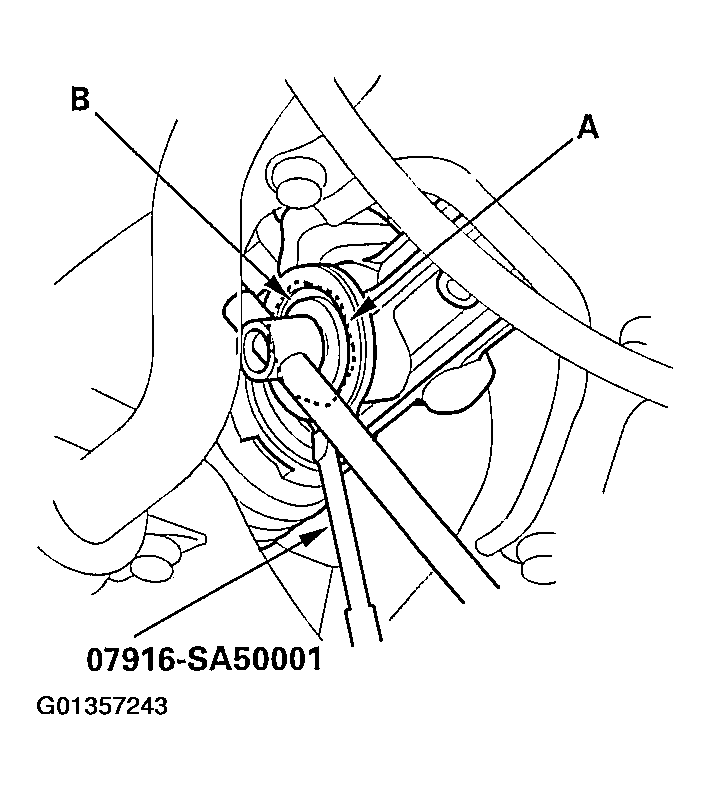

- Loosen the rack guide screw locknut (A) with the special tool, then remove the rack guide screw (B).

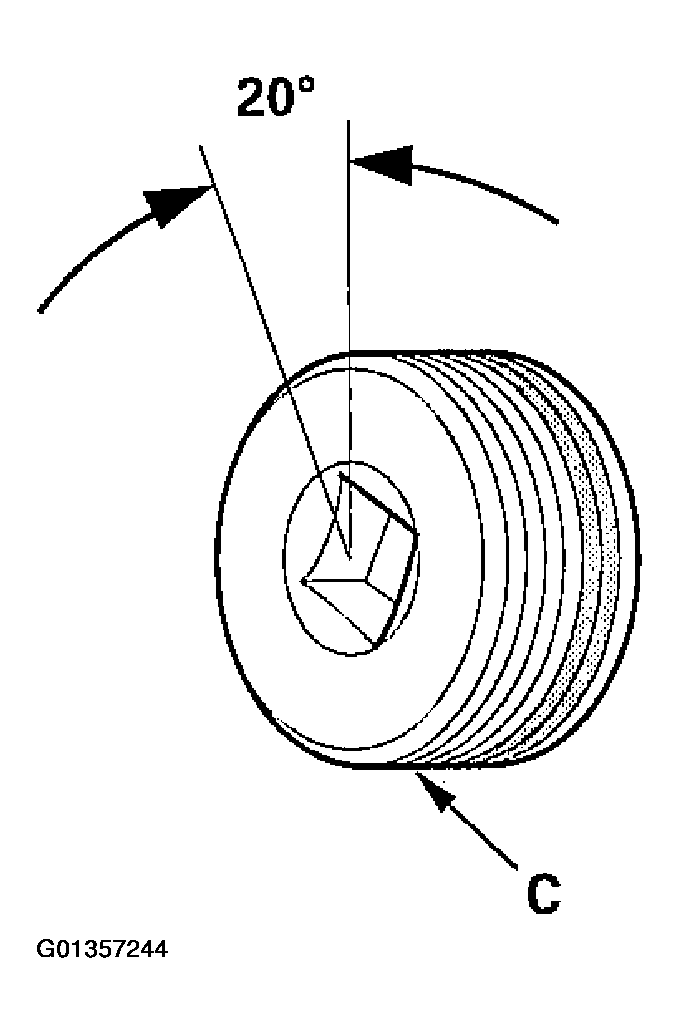

- Remove the old sealant from rack guide screw, and apply new sealant all around the threads (C).
Loosely install the rack guide screw on the steering gearbox.
- Tighten the rack guide screw to 25 N.m (2.5 kgf.m, 18 lbf.ft) then back it off to specified angle.
Specified Return Angle: 20° Max.
- Tighten the locknut while holding the rack guide screw.
- Check for unusual steering effort through the complete turning travel.
- Check the steering wheel rotational play and the power assist (see STEERING WHEEL ROTATIONAL PLAY CHECK and POWER ASSIST CHECK ).
