Ignition Switch: RSX

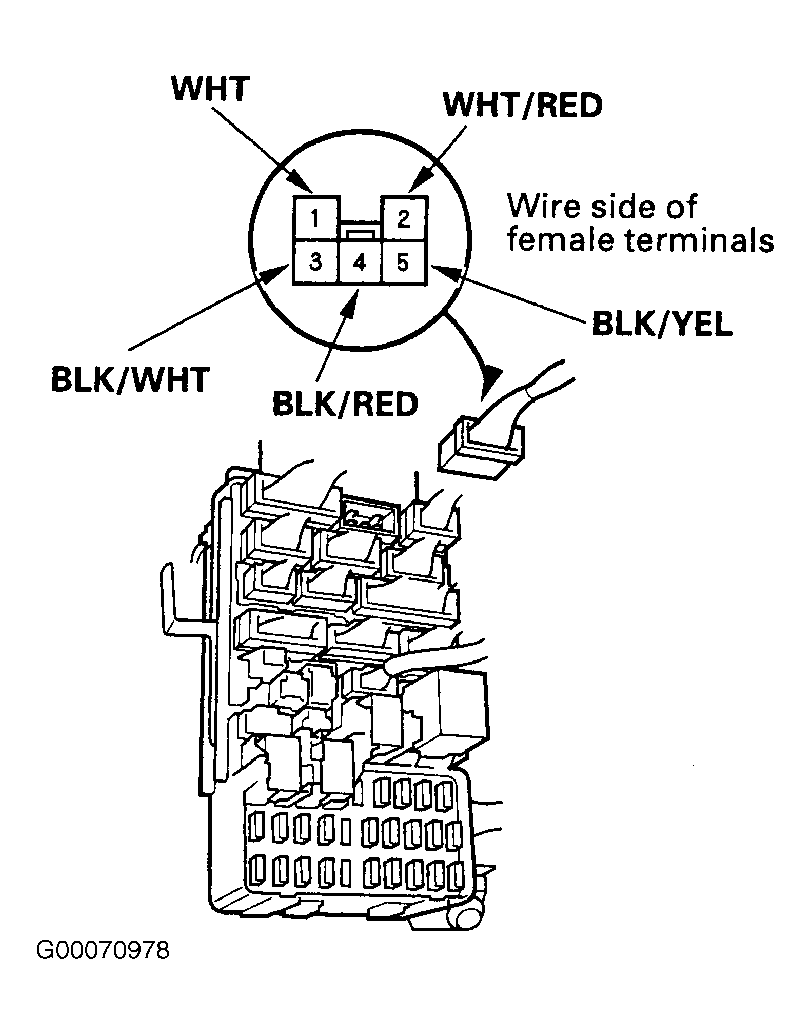

Disable air bag system. See appropriate AIR BAG RESTRAINT SYSTEMS article. Remove instrument panel lower cover. Disconnect ignition switch 5-pin harness connector, located in underdash fuse/relay box. Using DVOM, check for continuity between specified terminals in each switch position. See IGNITION SWITCH CONTINUITY (RSX) table. See Fig 1 . If continuity is not as specified, replace ignition switch. See appropriate STEERING COLUMN & SWITCHES article in ACCESSORIES & EQUIPMENT.
| Switch Position | Continuity Between Terminals No. |
|---|---|
| 0 (LOCK) | No Continuity |
| I (ACC) | 1 (BATT) & 2 (ACC) |
| II (ON) | 1 (BATT), 2 (ACC), 4 (IG2) & 5 (IG1) |
| III (START) | 2 (BATT), 3 (ST) & 5 (IG1) |
