Door Multiplex Control Unit

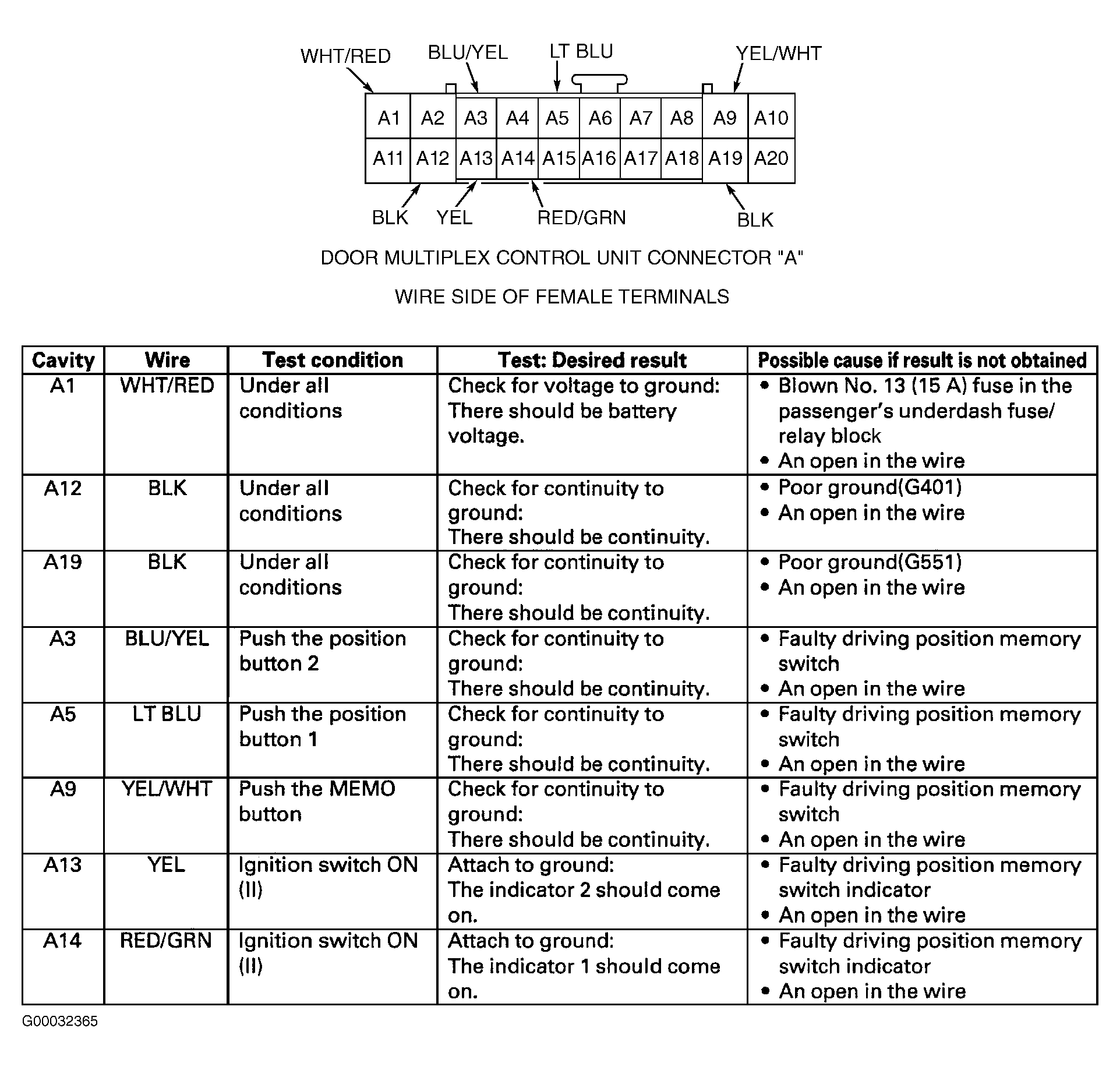

Remove driver's door panel. Disconnect door multiplex control unit connector and check for bent, loose or corroded terminals. Repair as necessary. If all terminals are okay, perform input tests at door multiplex control unit connector. See Fig 1 . If all input tests are okay, go to PASSENGER'S MULTIPLEX CONTROL UNIT .
