Driver's Position Memory Switch

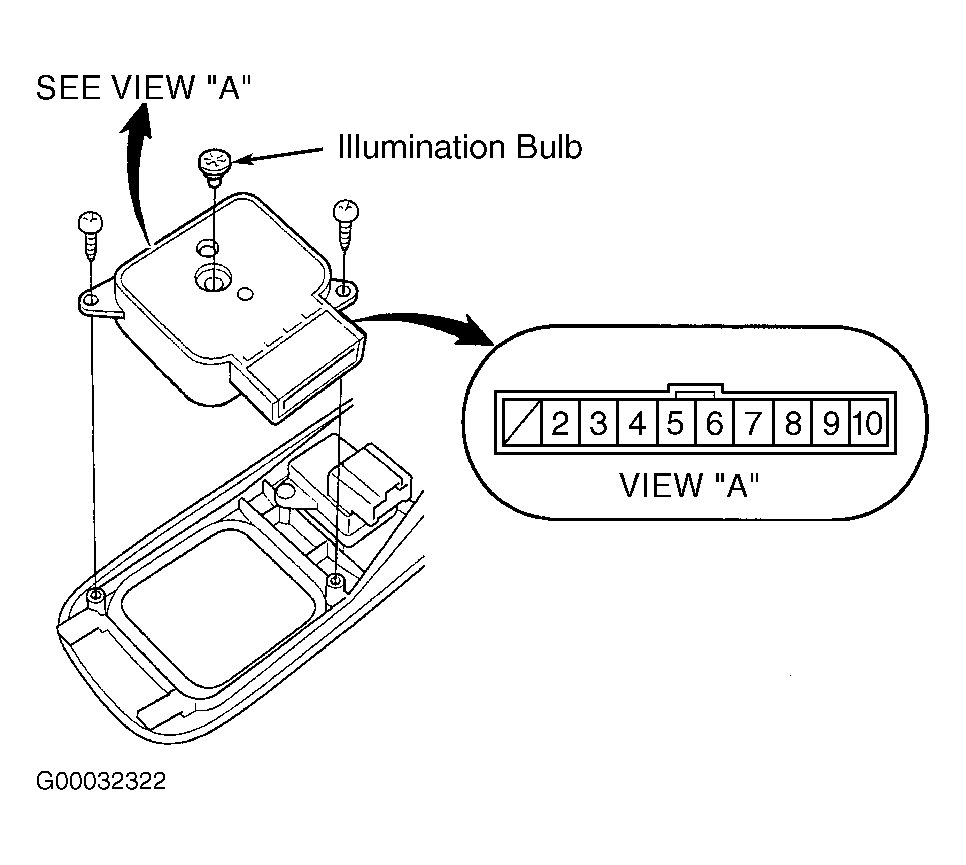

Remove driver's door panel. See DOOR PANEL under REMOVAL & INSTALLATION. Disconnect memory switch 10-pin connector. Using an ohmmeter, verify continuity is as specified in DRIVER'S POSITION MEMORY SWITCH CONTINUITY table. See Fig 1 . If memory switch fails any test, replace faulty switch.
| Position | Continuity Between Terminals No. | |||||
|---|---|---|---|---|---|---|
| Memo Button | ||||||
| Off | No Continuity | |||||
| On | 7 & 10 | |||||
| Position 1 Button | ||||||
| Off | No Continuity | |||||
| On | 9 & 10 | |||||
| Position 2 Button | ||||||
| Off | No Continuity | |||||
| On | 8 & 10 | |||||
| Indicator | ||||||
| 1 | (1) 2 & 4 | |||||
| 2 | (1) 2 & 3 | |||||
| Illumination | (2) 5 & 6 | |||||
|
||||||
