2003 Acura 3.2CL BaseFACTORY OEM SERVICE PROCEDURE
Control Unit Input Test/Replacement
'03 model

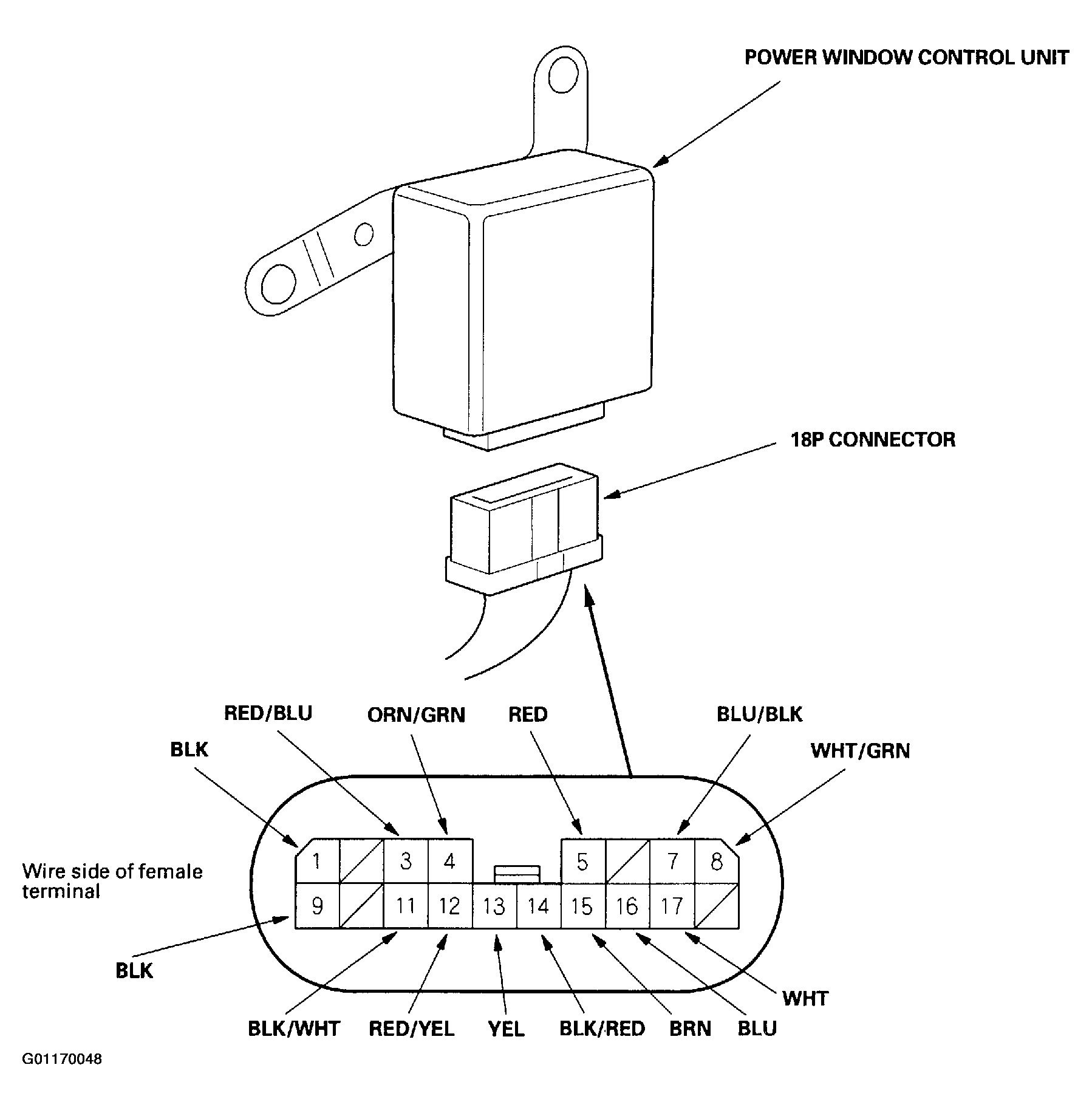

- Remove the driver's door panel, and disconnect the 18P connector from the control unit.
- Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded repair them as necessary, and recheck the system.

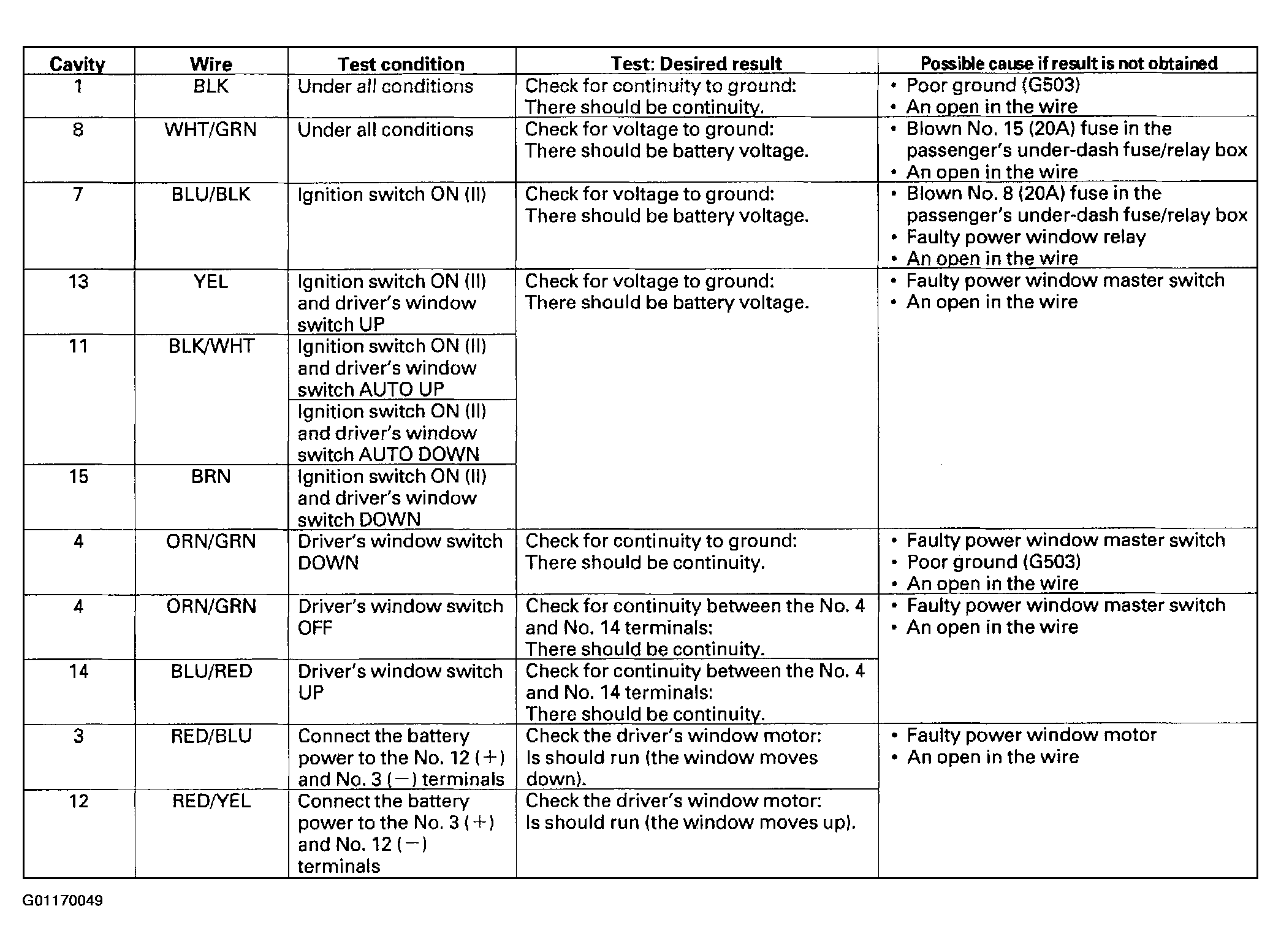

- If the terminals look OK, make the following input tests at the connector.
- If a test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the control unit must be faulty; replace it.
