Control Unit Input Test
'01-02 models
- Before testing the power window control functions check the operation of other multiplex functions. If there are other functions that are in operative, troubleshoot the multiplex control system (see TROUBLESHOOTING
).

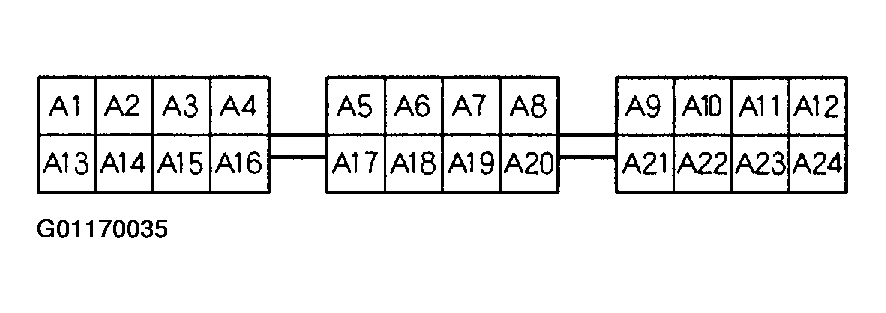

Driver's Multiplex Control Unit:
- Remove the driver's multiplex control unit from the driver's under-dash fuse/relay box.
- Inspect all connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.
