2002 Acura RSX L4-2.0L (VTEC)FACTORY OEM SERVICE PROCEDURE
Wiper Control Module: Testing and Inspection
Control Unit Input Test
1. Before testing, troubleshoot the multiplex control system.
2. Remove the dashboard lower cover.
3. Disconnect the under-dash fuse/relay box connectors B, F, G, J, X and Y.
NOTE: All connectors are wire side of female terminals.
4. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals are OK, go to step 5.

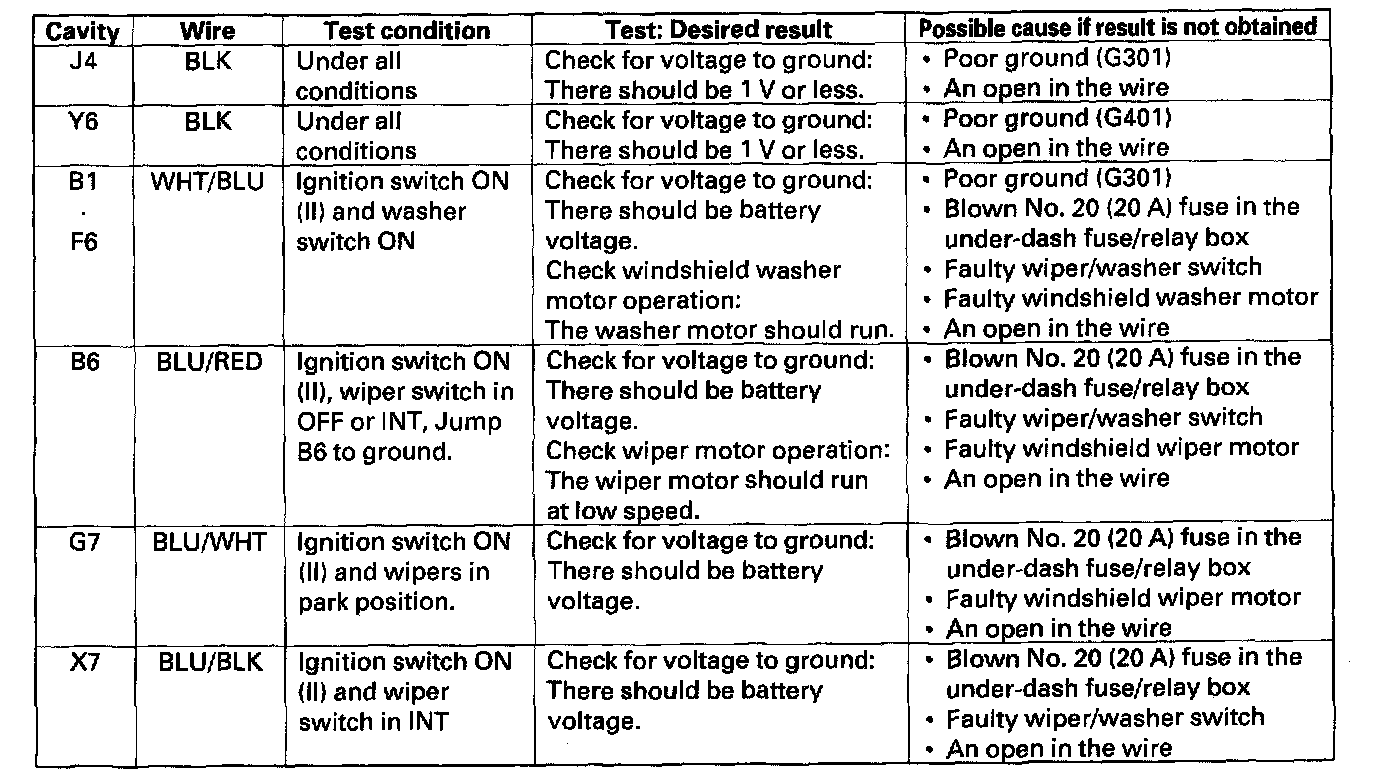

5. Reconnect the connectors, and make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.
- If all the input tests prove OK, the multiplex control unit must be faulty; replace the under-dash fuse/relay box assembly.
6. Disconnect the X connector from the under-dash fuse/relay box, and make these input tests at the connector
- If all the input tests prove OK, the multiplex control unit must be faulty; replace the under-dash fuse/relay box assembly.
1. Before testing, troubleshoot the multiplex control system.
2. Remove the dashboard lower cover.
3. Disconnect the under-dash fuse/relay box connectors B, F, G, J, X and Y.
NOTE: All connectors are wire side of female terminals.
4. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals are OK, go to step 5.
5. Reconnect the connectors, and make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.
- If all the input tests prove OK, the multiplex control unit must be faulty; replace the under-dash fuse/relay box assembly.
6. Disconnect the X connector from the under-dash fuse/relay box, and make these input tests at the connector
- If all the input tests prove OK, the multiplex control unit must be faulty; replace the under-dash fuse/relay box assembly.
