2002 Acura RSX L4-2.0L (VTEC)FACTORY OEM SERVICE PROCEDURE
Mode 6 Data
MODE $06 DATA CHARTS

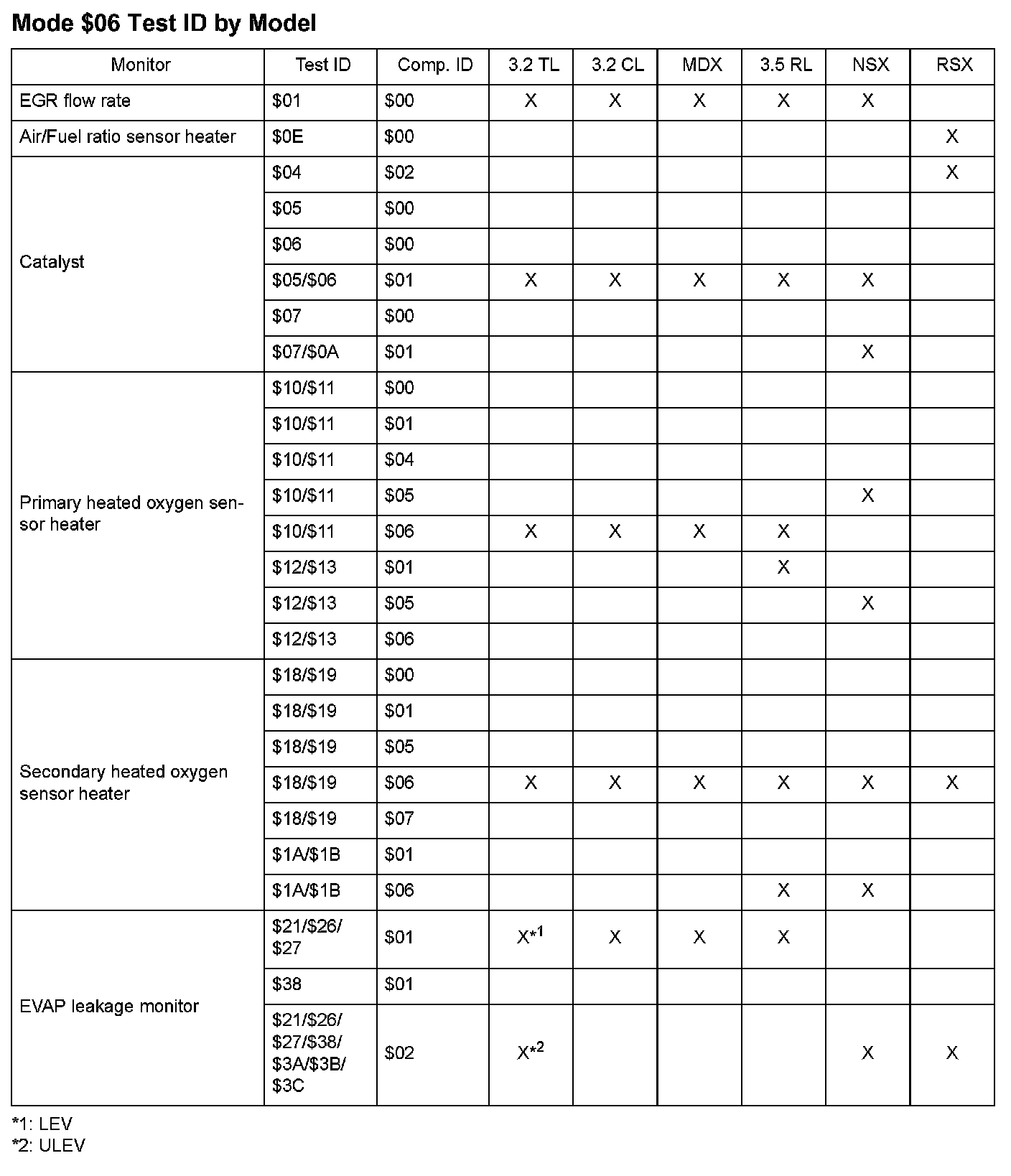

Test ID By Model (1 of 2):

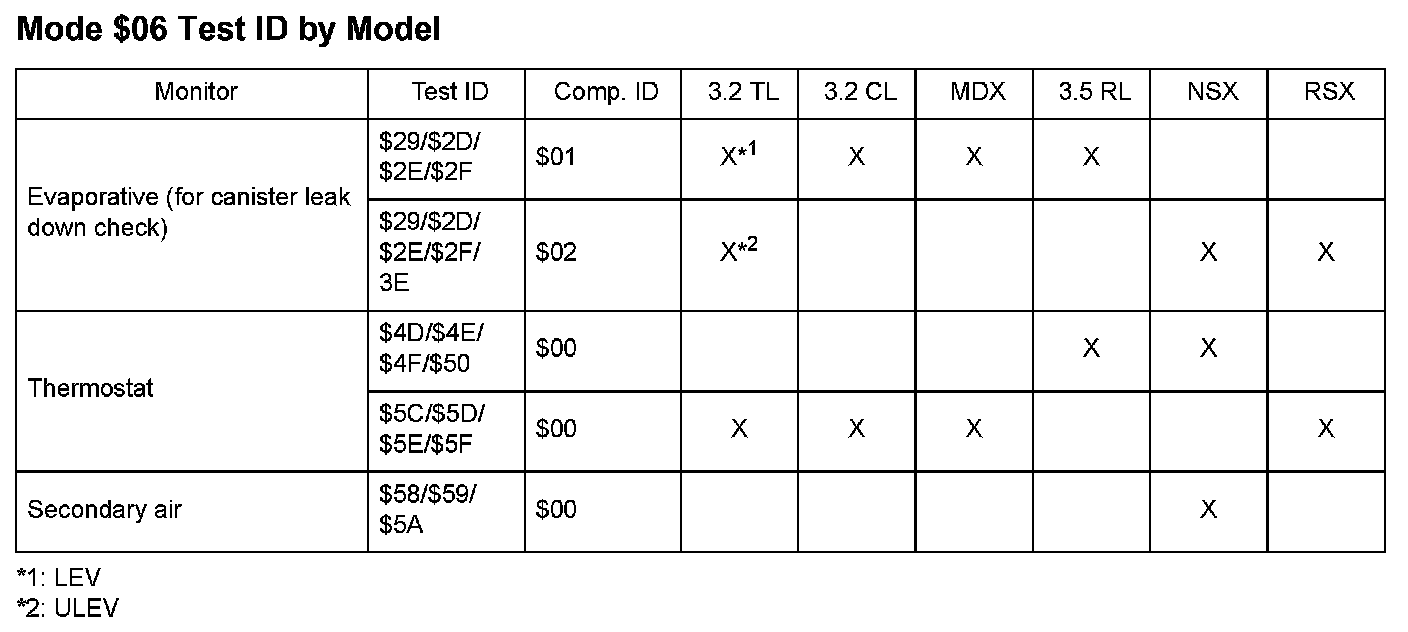

Test ID By Model (2 of 2):
SAE J1979 Information By Test ID ($01 - $06):
SAE J1979 Information By Test ID ($07 - $11):
SAE J1979 Information By Test ID ($12 - $15):
SAE J1979 Information By Test ID ($18 - $19):

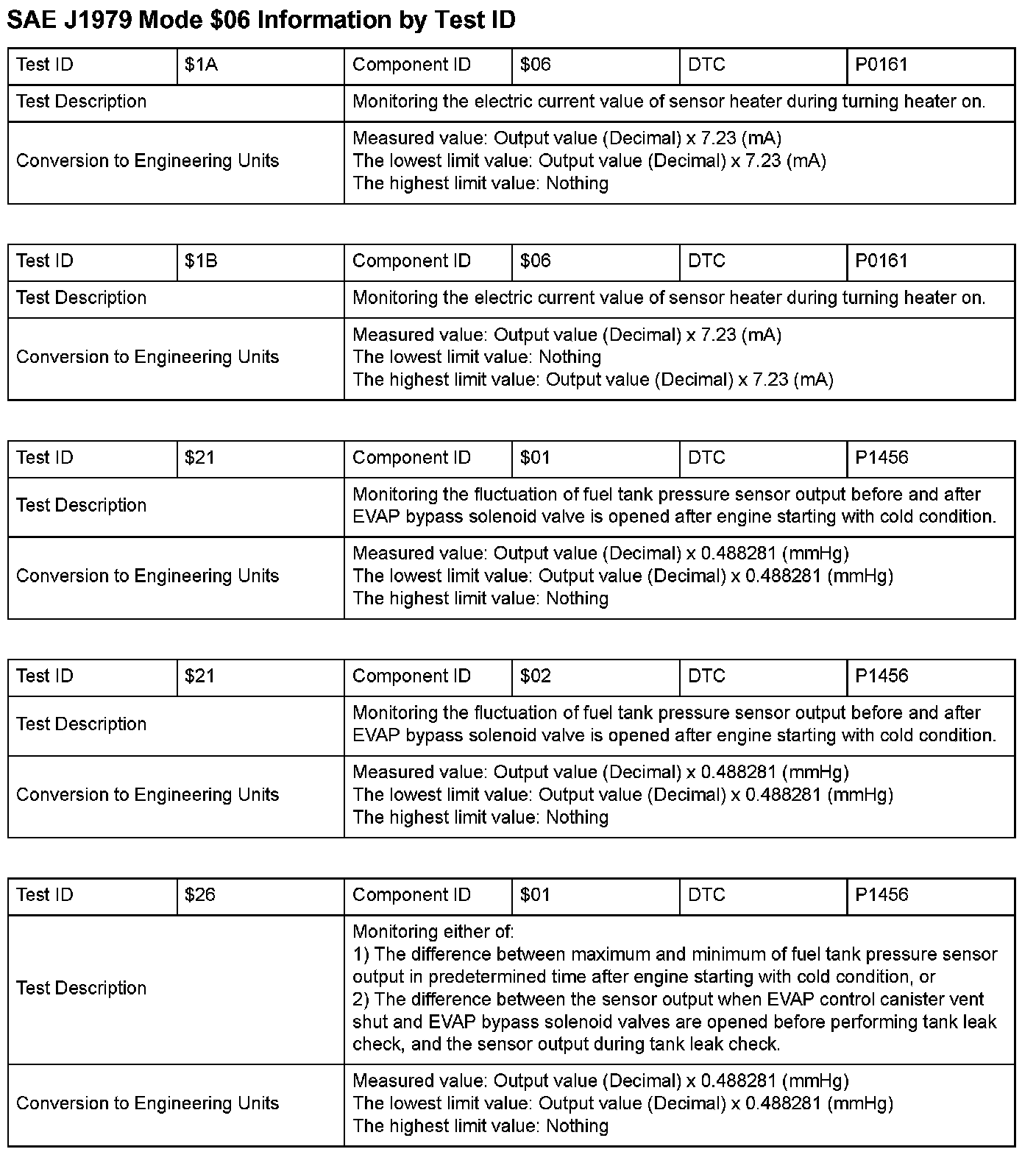

SAE J1979 Information By Test ID ($1A - $26):

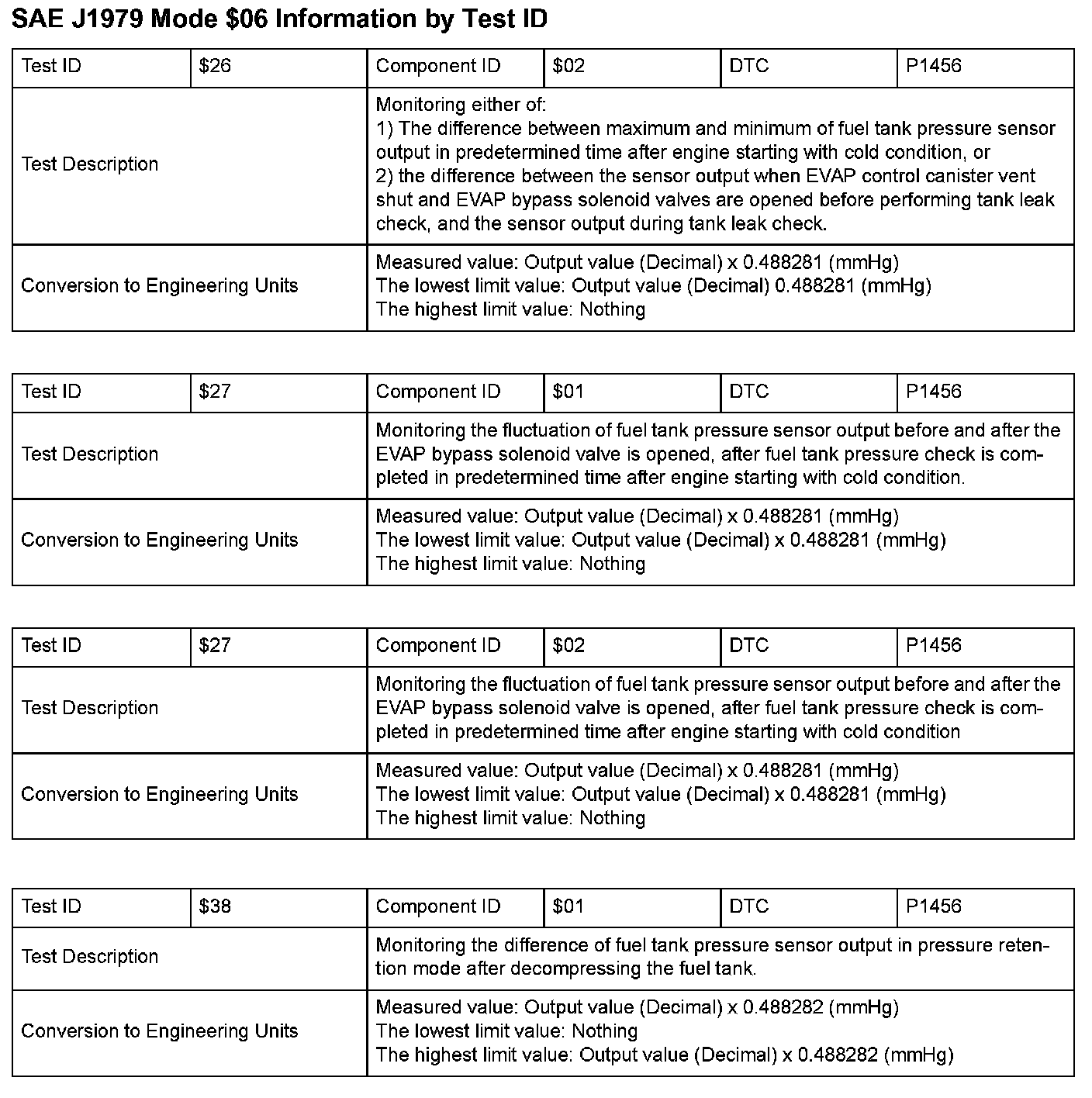

SAE J1979 Information By Test ID ($26 - $38):

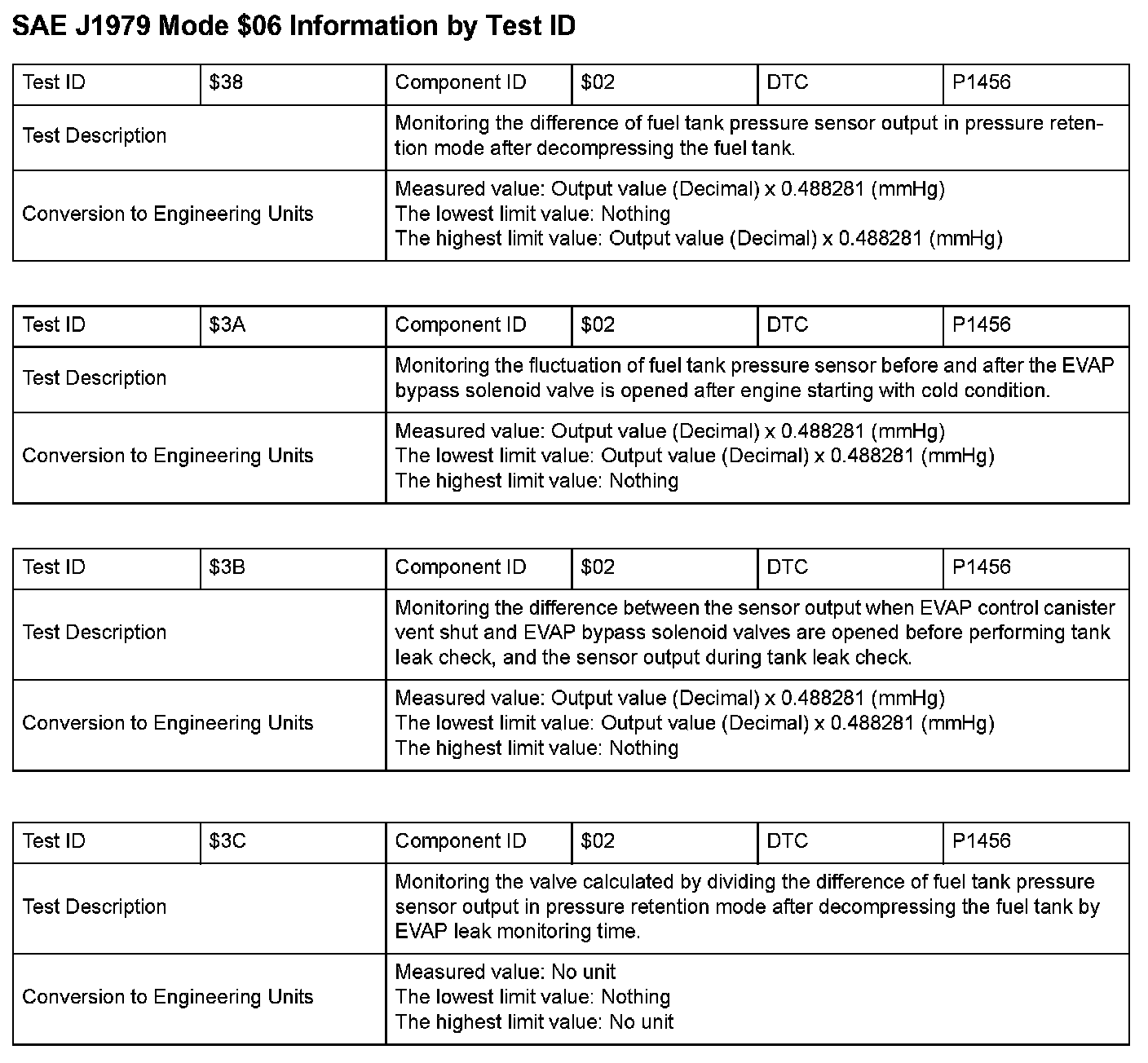

SAE J1979 Information By Test ID ($38 - $3C):

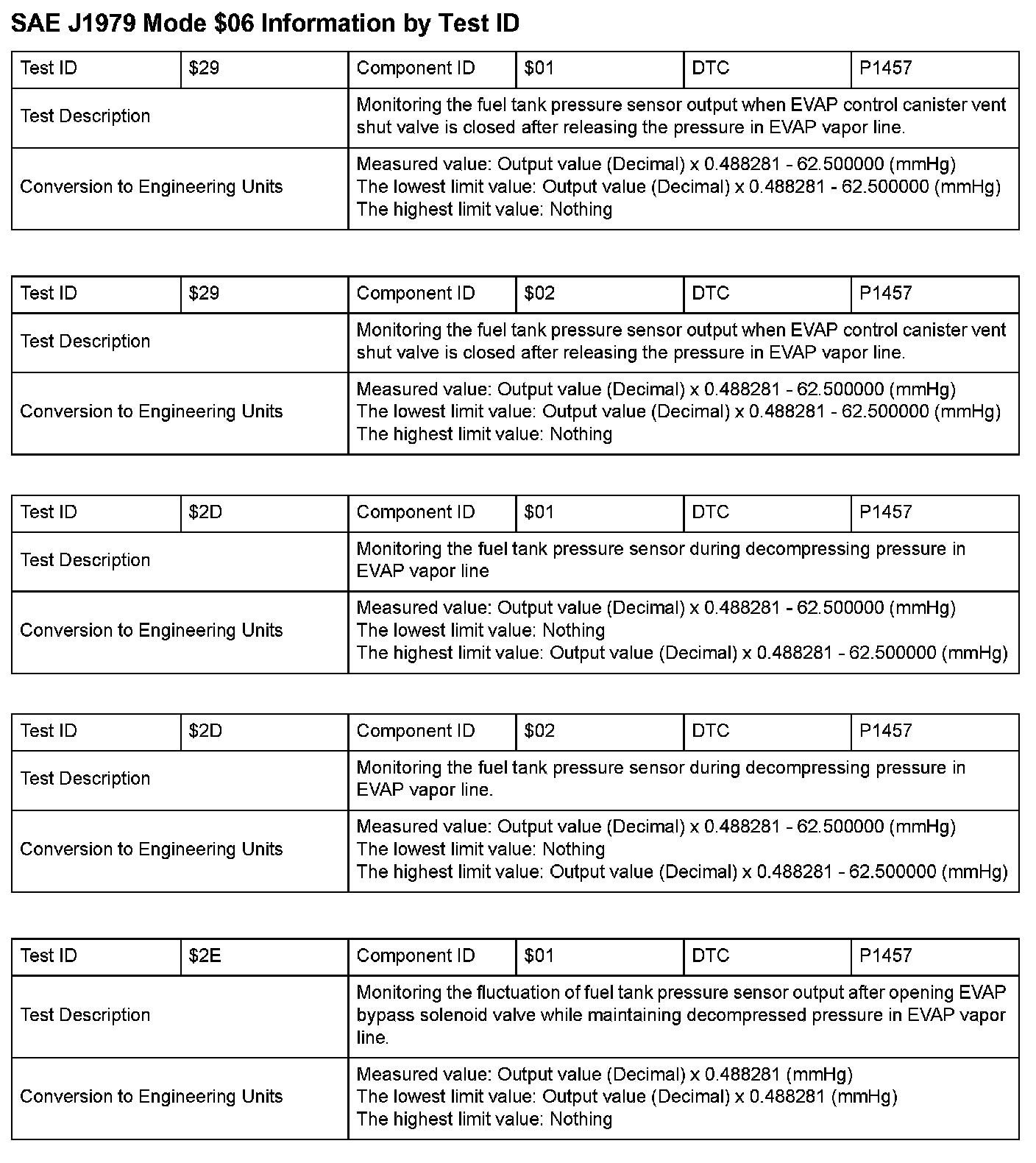

SAE J1979 Information By Test ID ($29 - $2E):

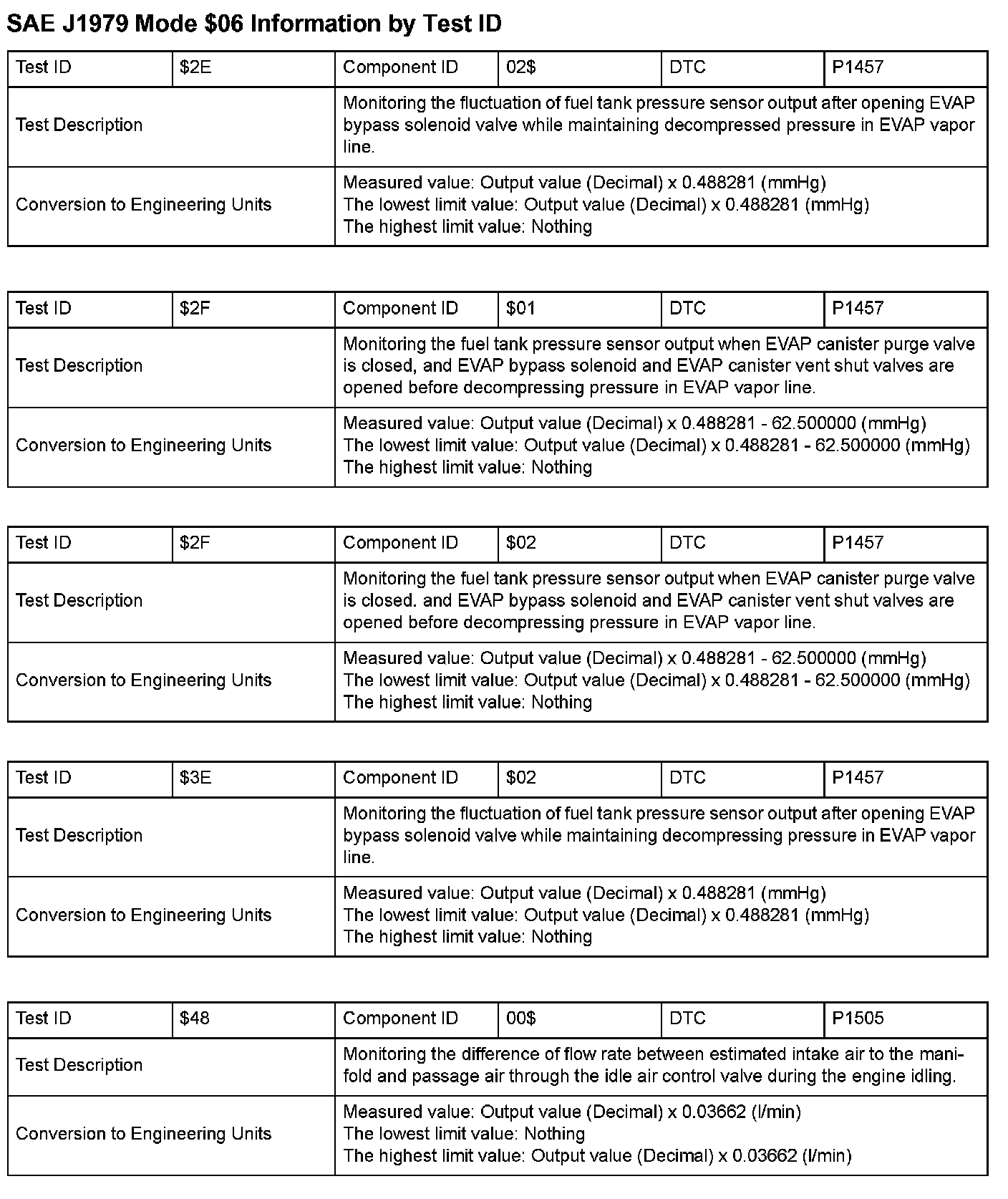

SAE J1979 Information By Test ID ($2E - $48):
SAE J1979 Information By Test ID ($4D - $5C):
SAE J1979 Information By Test ID ($5A - $6A):
