2002 Acura RSX L4-2.0L (VTEC)FACTORY OEM SERVICE PROCEDURE
Power Relay Test
Power Relay Test

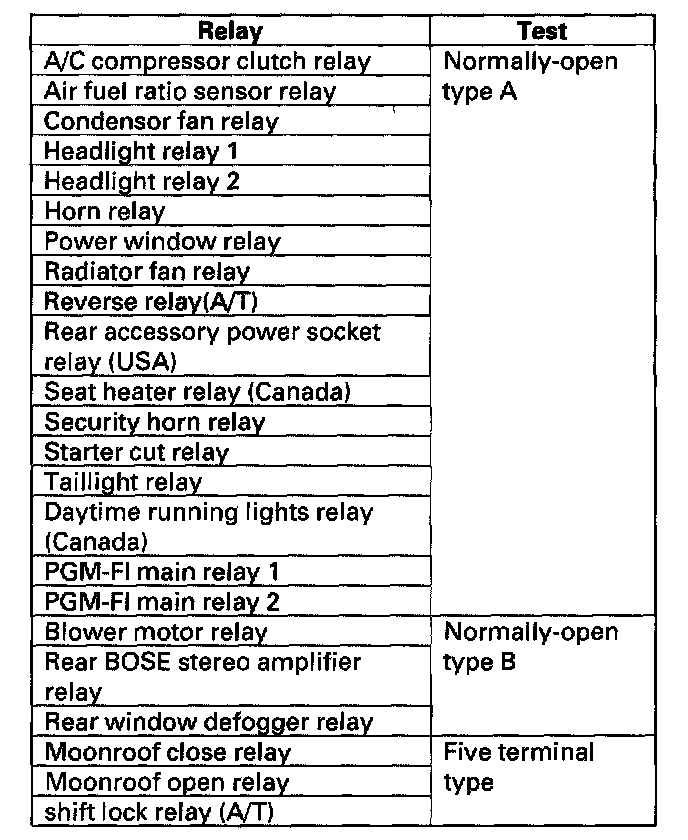

Use this chart to identify the type of relay, then do the test listed for it.
NOTE: See the turn signal/hazard relay input test.

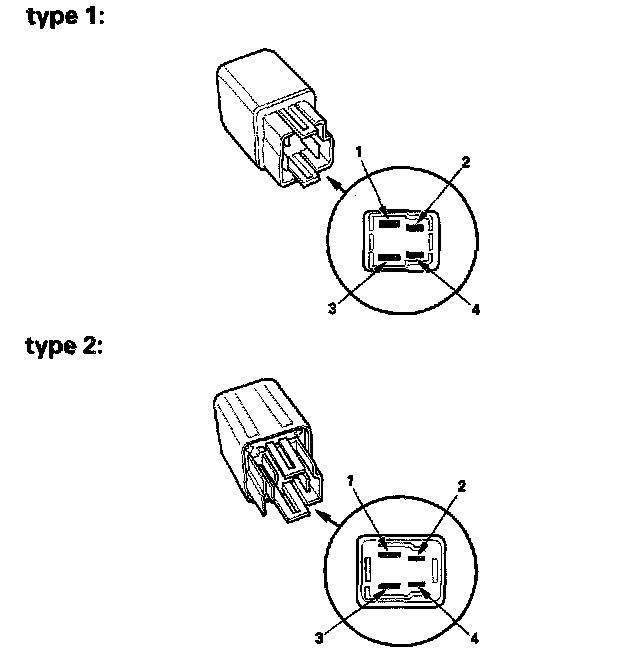

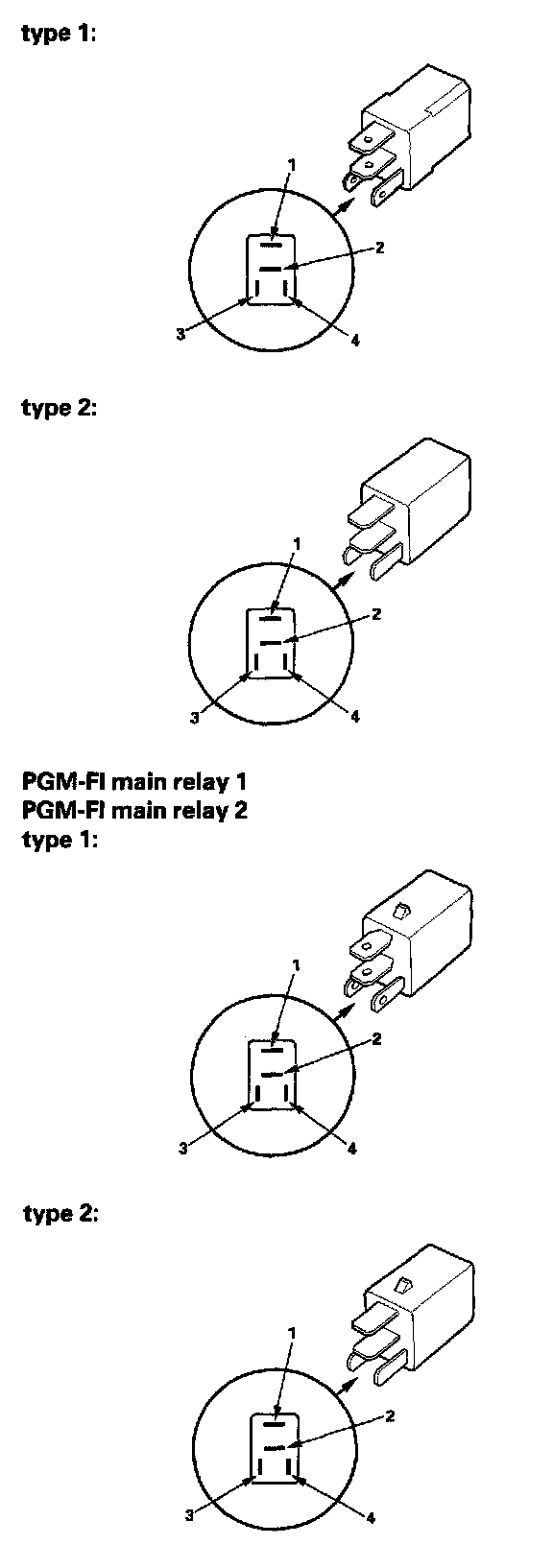

Normally-open type, A:
Check for continuity between the terminals.
- There should be continuity between the No.1 and No.2 terminals when power and ground are connected to the No.3 and No.4 terminals.
- There should be no continuity between the No.1 and No.2 terminals when power is disconnected.

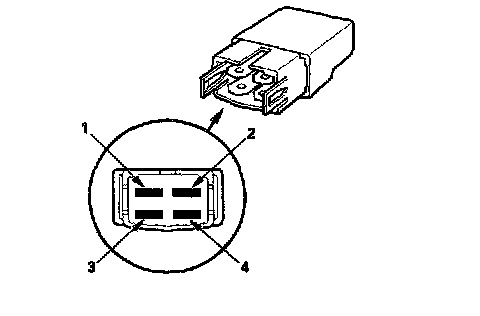

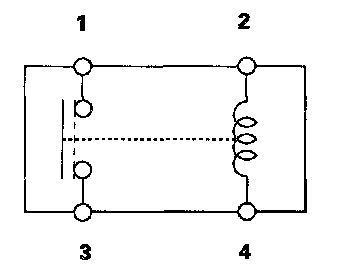

Normally-open type B:
Check for continuity between the terminals.
- There should be continuity between the No.1 and No.3 terminals when power and ground are connected to the No.2 and No.4 terminals.
- There should be no continuity between the No.1 and No.3 terminals when power is disconnected.

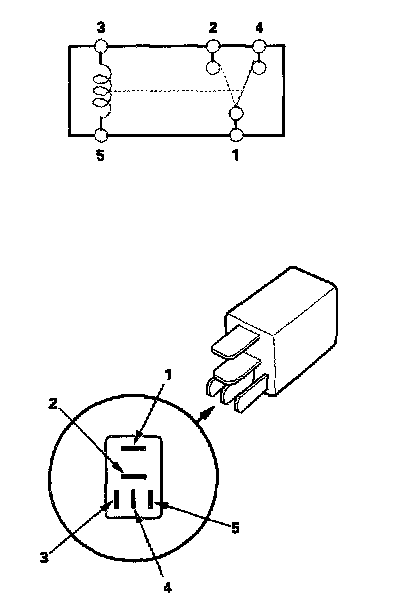

Five-terminal type:
Check for continuity between the terminals.
- There should be continuity between the No.1 and No.2 terminals when power and ground are connected to the No.3 and No.5 terminals.
- There should be continuity between the No.1 and No.4 terminals when power is disconnected.
Use this chart to identify the type of relay, then do the test listed for it.
NOTE: See the turn signal/hazard relay input test.
Normally-open type, A:
Check for continuity between the terminals.
- There should be continuity between the No.1 and No.2 terminals when power and ground are connected to the No.3 and No.4 terminals.
- There should be no continuity between the No.1 and No.2 terminals when power is disconnected.

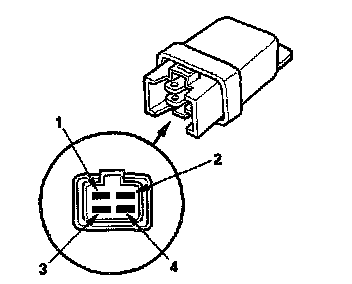

Normally-open type B:
Blower Motor Relay:
Rear Window Defogger Relay:
Rear BOSE Stereo Amplifier Relay:
Check for continuity between the terminals.
- There should be continuity between the No.1 and No.3 terminals when power and ground are connected to the No.2 and No.4 terminals.
- There should be no continuity between the No.1 and No.3 terminals when power is disconnected.
Five-terminal type:
Check for continuity between the terminals.
- There should be continuity between the No.1 and No.2 terminals when power and ground are connected to the No.3 and No.5 terminals.
- There should be continuity between the No.1 and No.4 terminals when power is disconnected.
