2002 Acura RSX Base, AutomaticFACTORY OEM SERVICE PROCEDURE
K20A3 engine
- Remove the intake manifold (see INTAKE MANIFOLD REMOVAL AND INSTALLATION ).
- Disconnect the knock sensor 1P connector.

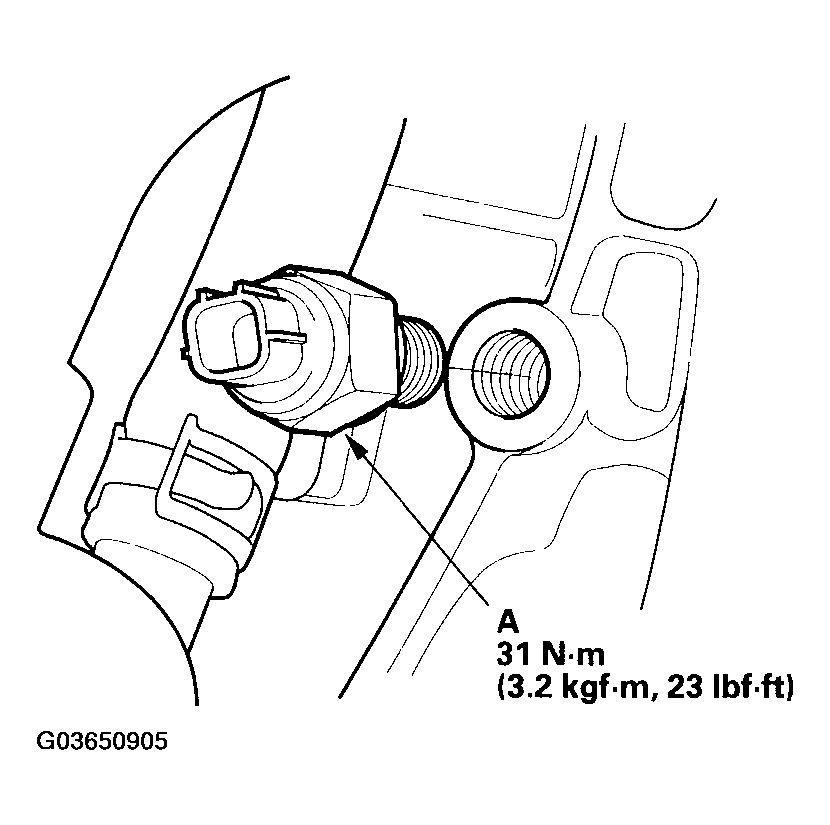

- Remove the knock sensor (A).
- Install the sensor in the reverse order of removal.
