2002 Acura 3.2TL BaseFACTORY OEM SERVICE PROCEDURE
Shift Lock Solenoid Test
- Remove the console panel. See Console Panel .

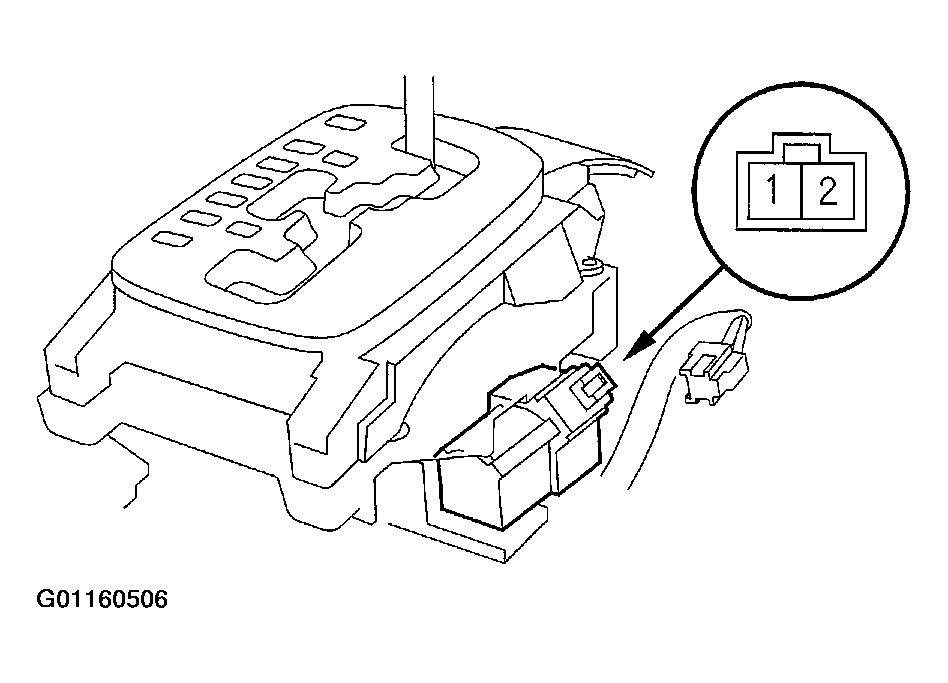

- Disconnect the shift lock solenoid 2P connector.
- Connect the No. 1 terminal of the shift lock solenoid connector to the battery positive terminal, and connect the No. 2 terminal to the battery negative terminal.
- Check that the shift lever can be moved from the P
position. Release the battery terminals from the shift lock solenoid connector. Move the shift lever back to the P
position, and make sure it locks.NOTE: Do not connect power to the No. 2 terminal (reverse polarity) or you will damage the diode inside the solenoid.
- Check that the shift lock releases when the release lever is pushed, and check that it locks when the release lever is released.
- If the solenoid does not work, replace it.
