Key Interlock System Circuit Troubleshooting
- Disconnect the key switch connector (7P) from the steering lock assembly.

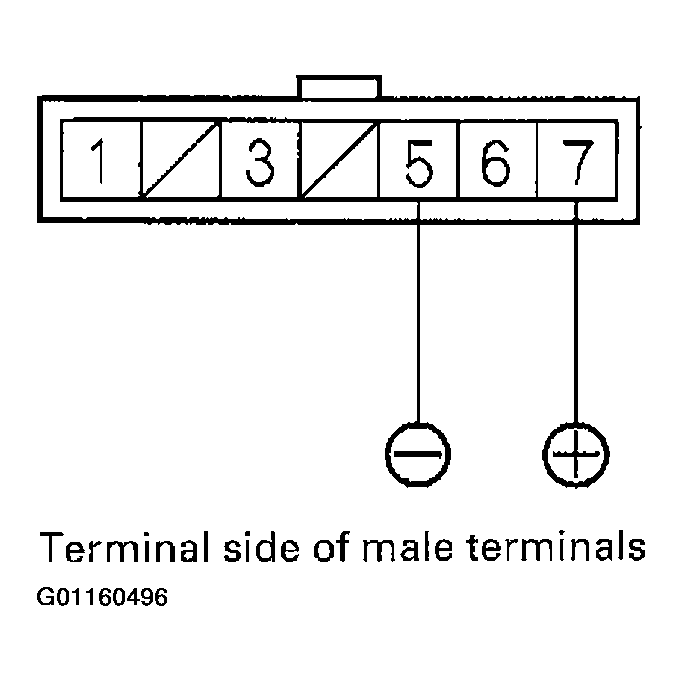

- Connect the No. 7 terminal of the key switch connector to the battery positive terminal, and connect the No. 5 terminal to the battery negative terminal.
- Turn the ignition switch to ACC (I), then push the ignition key.
- Check the key interlock solenoid operation. A clicking sound should be heard while pushing the ignition key, and you should not be able to turn it to the OFF position.
Does the key interlock solenoid operate properly?
- YES - Go to step 5.
- NO - Faulty key interlock solenoid/switch. Replace the ignition key cylinder/steering lock assembly.

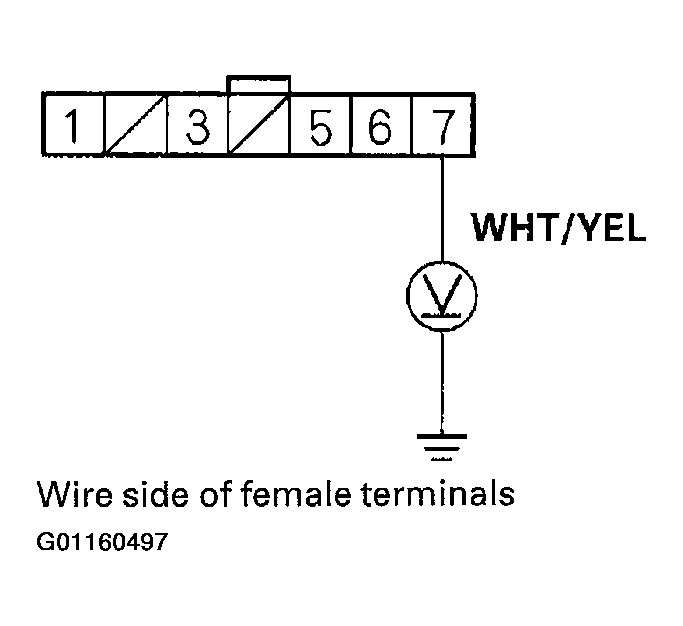

- Measure the voltage between the No. 7 terminal and body ground.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there battery voltage?
- YES - Go to step 6.
- NO - Check for blown No. 47 (20A) fuse in the under-hood fuse/relay box. If the fuse is OK, repair open or short in the wire between the No. 7 terminal of the key switch connector and under-hood fuse/relay box.
- Disconnect the transmission gear selection switch connector on the rear of the shift lever.

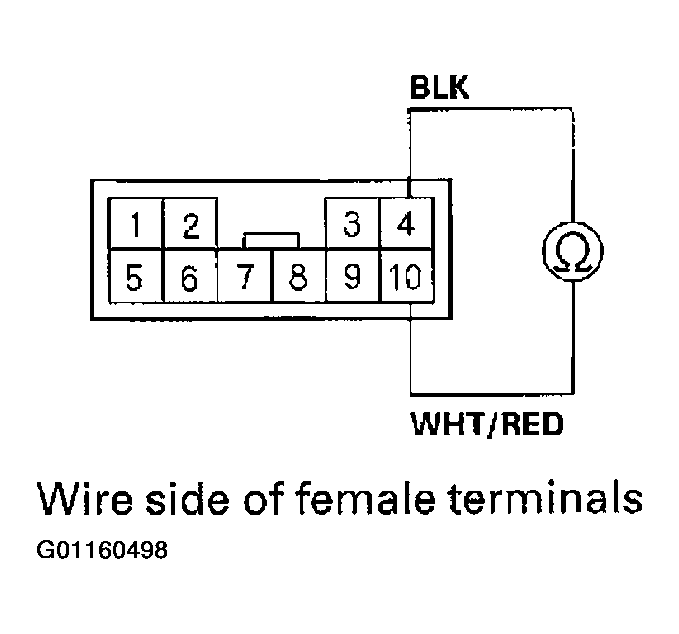

- With the shift lever in Park and pushed to the right, check for continuity between the No. 4 and No. 10 terminals of the transmission gear selection switch connector.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
- YES - Go to step 8.
- NO - Repair open in the wires between the park pin switch and the transmission gear selection switch connector. If the wires are OK, replace the shift lever detent bracket assembly.

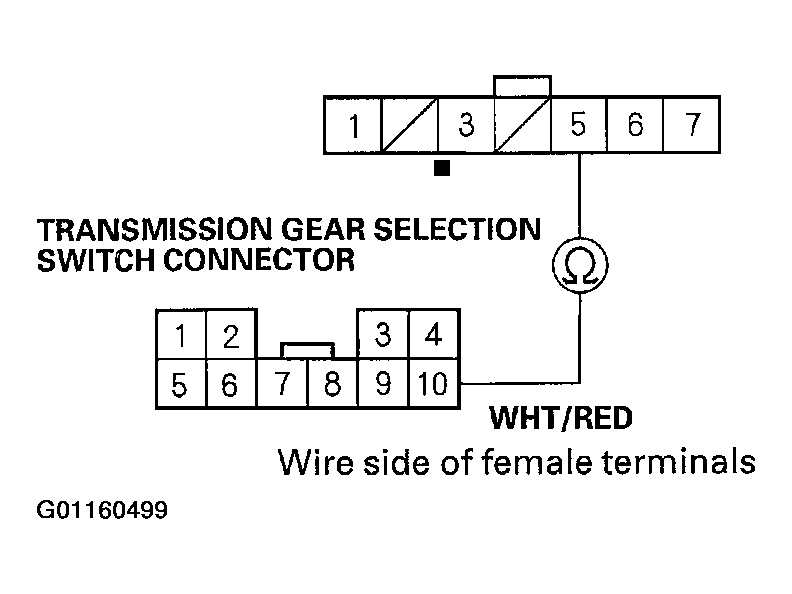

- Check for continuity between the No. 10 terminal of the transmission gear selection switch connector and the No. 5 terminal of the key switch connector.Fig 4: Checking Continuity Between No. 10 Terminal, Transmission Gear Selection Switch Connector & No. 5 Terminal, Key Switch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
- YES - Go to step 9.
- NO - Repair open in the wire between No. 10 terminal of the transmission gear selection switch connector and the No. 5 terminal of the key switch connector.

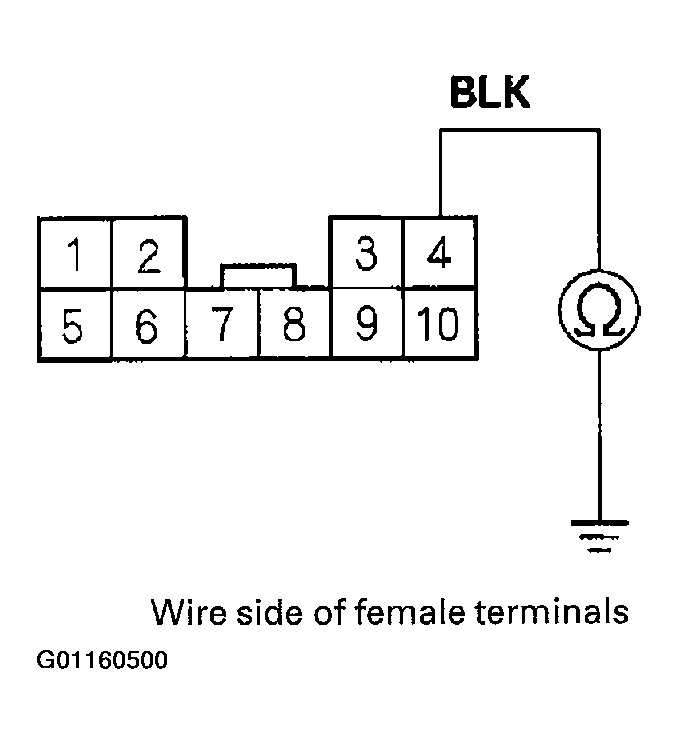

- Check for continuity between the No. 4 terminal of the transmission gear selection switch connector and body ground.Fig 5: Checking Continuity Between No. 4 Terminal, Transmission Gear Selection Switch Connector & Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
- YES - Check for loose terminal fit in the key switch connector and transmission gear selection switch connector. If necessary, substitute a known-good steering lock assembly.
- NO - Repair open in the wire between the No. 4 terminal of the transmission gear selection switch connector and ground (G501). Repair poor ground (G501).
