Modulator Unit: Notes

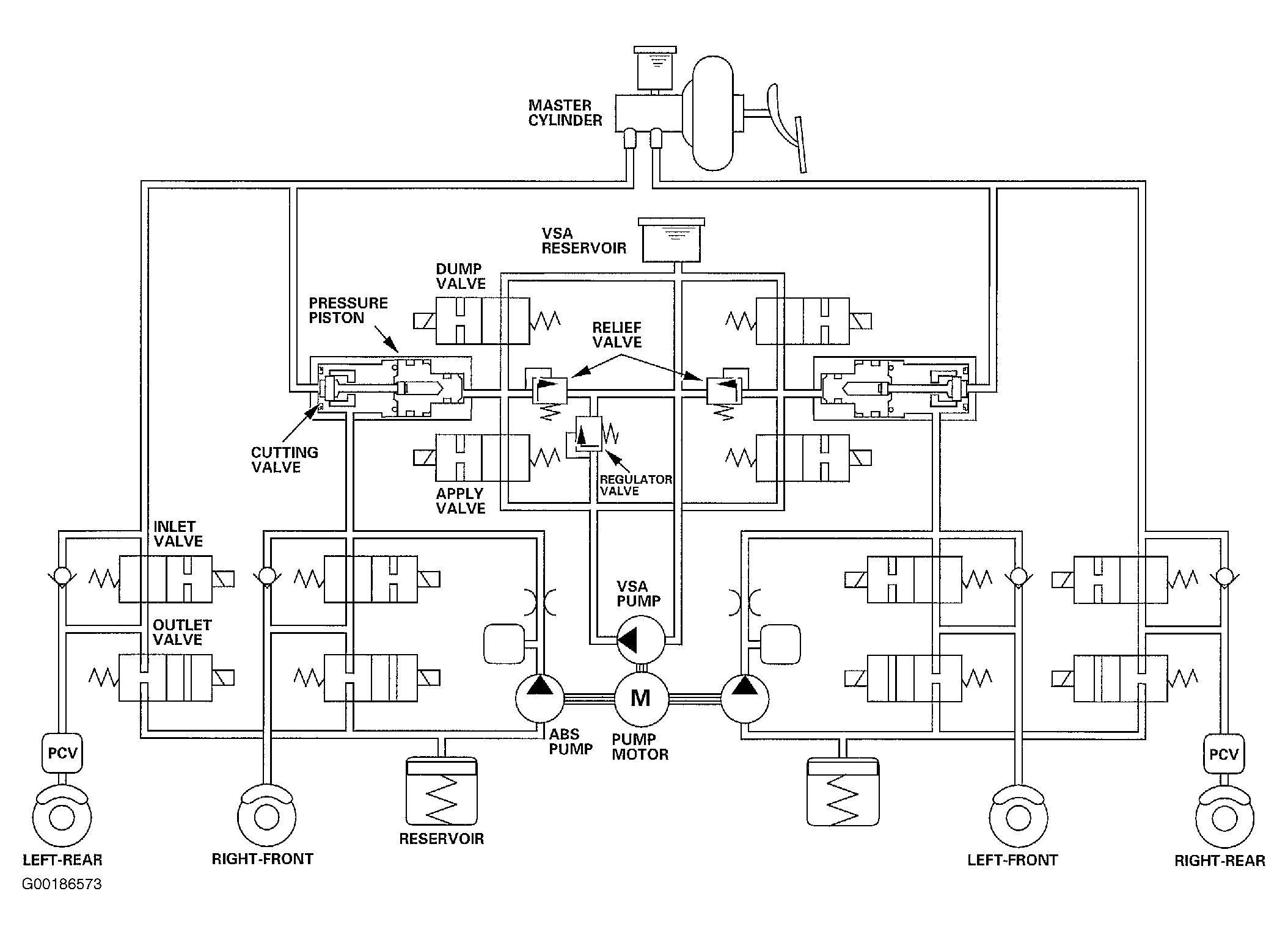

The modulator unit consists of the four inlet solenoid valves, four outlet solenoid valves, two front apply valves, two front dump valves, reservoir, relief valves, regulator valve, cut-off valve, pressure piston, ABS pump, VSA pump, and pump motor. The modulator controls the brake fluid pressure directly. It is a circulating-type modulator because the brake fluid circulates through the caliper, the reservoir, and the master cylinder. The hydraulic control has three modes: pressure intensifying, pressure retaining, and pressure reducing. The hydraulic circuit is an independent four channel type, one channel for each wheel. See Fig 1 .
