2002 Acura 3.2CL BaseFACTORY OEM SERVICE PROCEDURE
Clutch Interlock Switch Test (3.2CL)

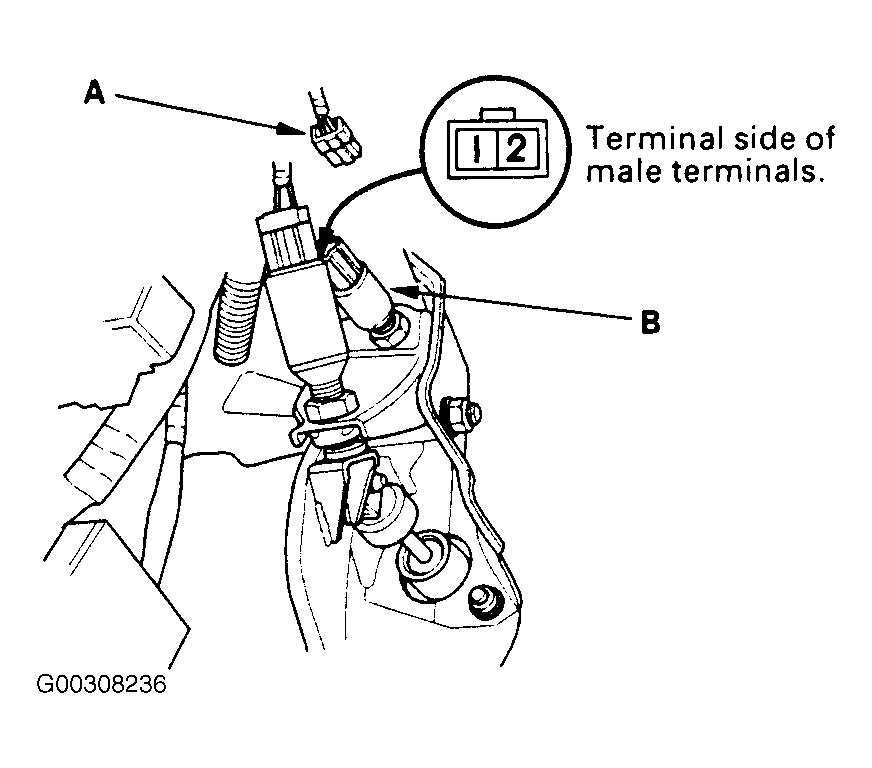

- Disconnect the clutch interlock switch 2-pin connector (A). See Fig 1
- Remove the clutch interlock switch (B).
- Check for continuity between the terminals. Continuity should exist with switch pressed. If the continuity is not as specified, replace the clutch interlock switch. If OK, install clutch interlock switch and adjust the pedal height. See appropriate CLUTCHES article in TRANSAXLE/TRANSMISSION. See Fig 1 .
