Passenger's Window Motor Test

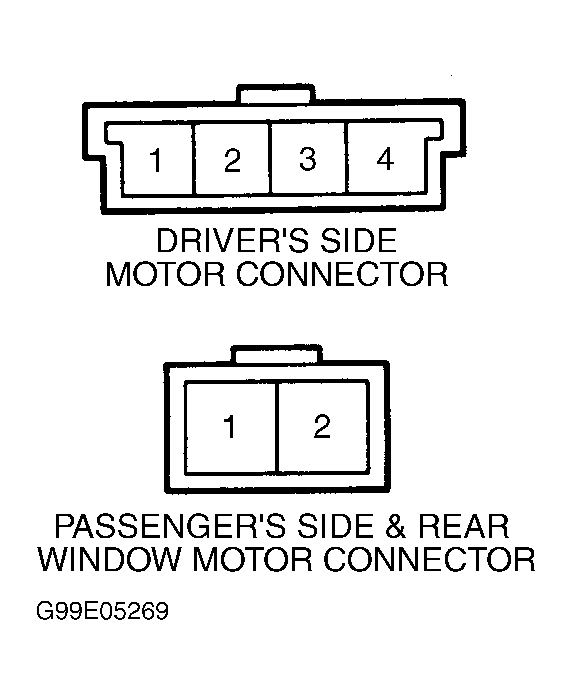

Remove passenger's door panel. See DOOR PANEL under REMOVAL & INSTALLATION. Disconnect the 2-pin connector from the window motor. See Fig 1 . Test the motor by connecting battery power and ground. See Fig 2 . When the motor stops running, disconnect one lead immediately. If the motor does not run or fails to run smoothly, replace it.
