Power Mirror Switch

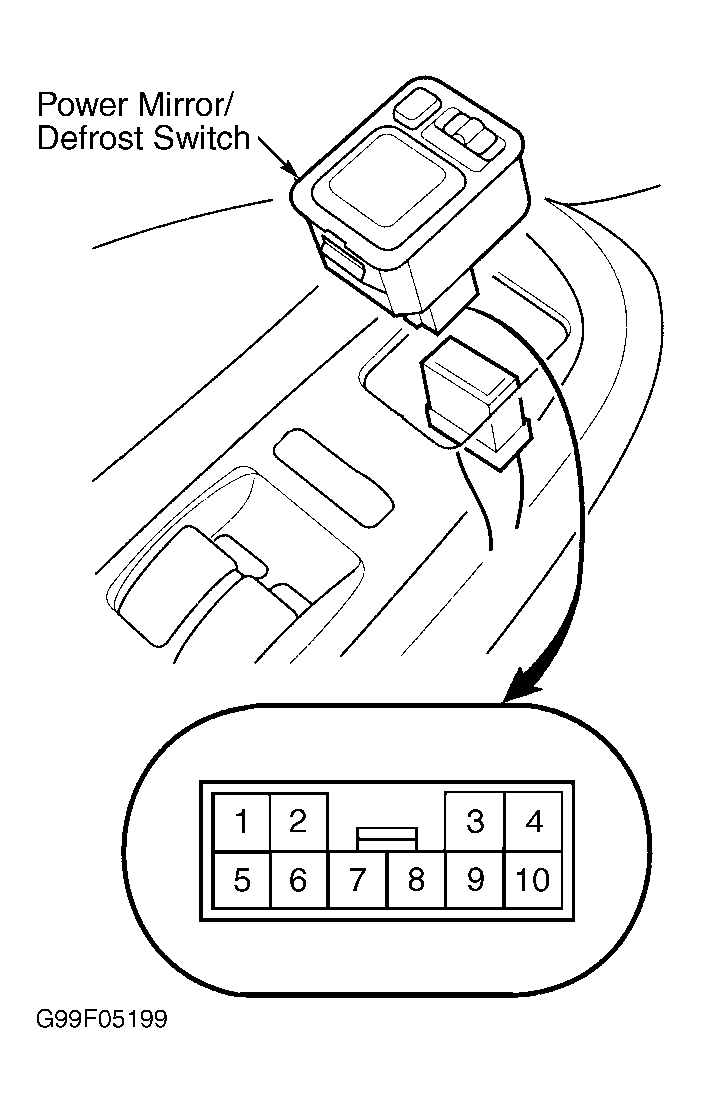

Gently pry power mirror switch upward to remove. Disconnect power mirror switch connector. Using an ohmmeter, verify continuity between switch terminals is as specified. See Fig 1 . See POWER MIRROR SWITCH CONTINUITY table. If mirror switch fails any test, replace faulty mirror switch.
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Left Mirror | ||
| Up | 1 & 4; 2 & 7 | |
| Down | 1 & 7; 2 & 4 | |
| Left | 1 & 7; 2 & 9 | |
| Right | 1 & 9; 2 & 7 | |
| Right Mirror | ||
| Up | 1 & 4; 2 & 8 | |
| Down | 1 & 8; 2 & 4 | |
| Left | 1 & 8; 2 & 10 | |
| Right | 1 & 10; 2 & 8 | |
| Defogger | ||
| On | 3 & 6 | |
| Off | No Continuity | |
