Driver's Power Seat Switch

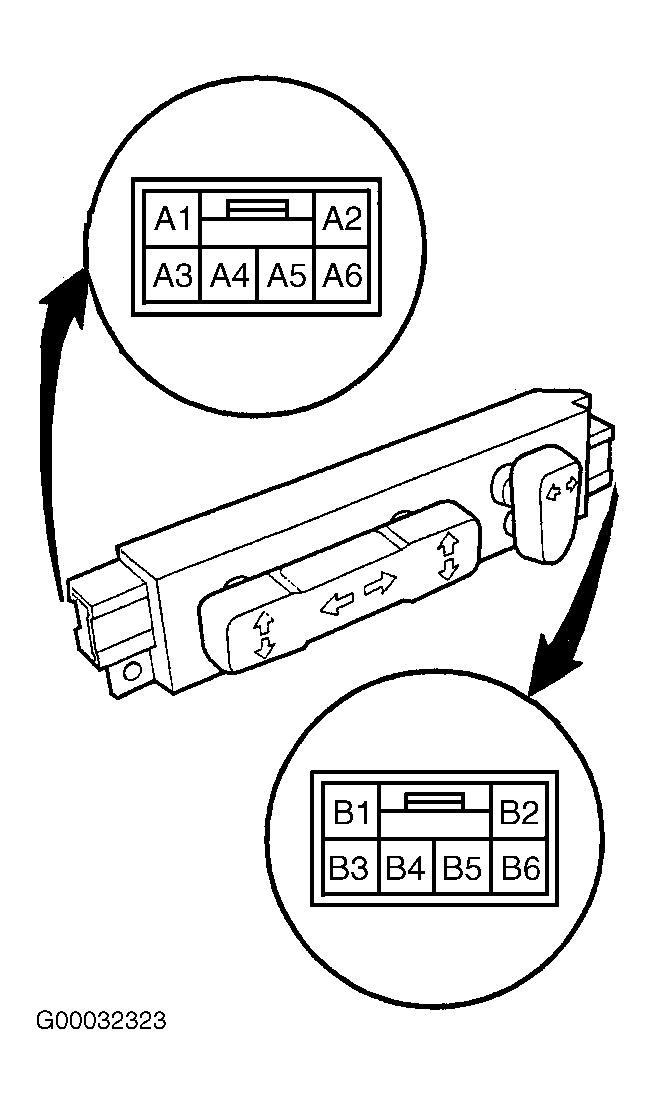

Remove driver's power seat switch. See DRIVER'S POWER SEAT SWITCH under REMOVAL & INSTALLATION. Disconnect driver's power seat switch connectors. See Fig 1 . Using an ohmmeter, verify continuity exists between terminals as specified. See DRIVER'S POWER SEAT SWITCH CONTINUITY table. If switch fails any test, replace faulty switch.
| Position | Continuity Between Terminals No. | |
|---|---|---|
| Slide Switch | ||
| Forward | A1 & B5; A5 & B6 | |
| Backward | A1 & B6; A5 & B5 | |
| Recline Switch | ||
| Forward | B1 & B4; B2 & B3 | |
| Backward | B1 & B3; B2 & B4 | |
| Front Up-Down Switch | ||
| Up | A3 & B6; A4 & B5 | |
| Down | A3 & B5; A4 & B6 | |
| Rear Up-Down Switch | ||
| Up | A2 & B2; A6 & B1 | |
| Down | A2 & B1; A6 & B2 | |
